APA150-TQ100I

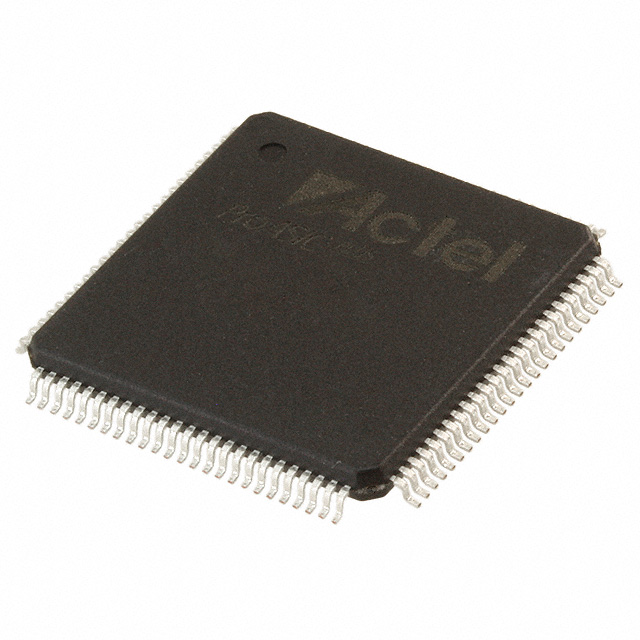

The APA150-TQ100I is a ProASICPLUS field programmable gate array provided in a 100-pin LQFP package. It integrates 6,144 logic elements, approximately 36,864 bits of on-chip RAM, and 66 general-purpose I/O pins, offering a compact programmable-logic option for industrial applications.

Designed for surface-mount assembly, the device operates from a 2.3 V to 2.7 V supply and is specified for industrial temperatures from −40 °C to 85 °C, making it suitable for embedded designs that require moderate logic density, on-chip memory, and robust operating ranges.

Key Features

• Logic Capacity  6,144 logic elements (cells) supporting user-defined digital logic; approximately 150,000 equivalent gates for mid-range logic implementation.
• Embedded Memory  36,864 total RAM bits of on-chip memory (approximately 0.037 Mbits) for buffering, state storage, and small data structures.
• I/O Count  66 user I/O pins to interface with peripheral devices, sensors, and other digital subsystems.
• Power  Single supply operation from 2.3 V to 2.7 V to match common low-voltage digital domains.
• Package & Mounting  100-pin LQFP package (supplier package reference: 100-TQFP, 14×14 mm) in a surface-mount form factor for PCB-level integration.
• Temperature & Grade  Industrial-grade device specified for −40 °C to 85 °C operation.
• Environmental Compliance  RoHS compliant for reduced hazardous substance content.

Unique Advantages

• Balanced logic and memory  6,144 logic elements combined with 36,864 RAM bits provide a practical balance for mid-density programmable logic tasks without relying on external memory for small buffering needs.
• Compact, manufacturable package  100-pin LQFP/TQFP packaging in a surface-mount form factor simplifies PCB layout and automated assembly for production volumes.
• Industrial temperature rating  Specified −40 °C to 85 °C operation supports deployment in environments that require extended temperature range stability.
• Low-voltage operation  2.3 V to 2.7 V supply allows integration into low-voltage systems and compatibility with common digital power rails.
• Generous I/O count  66 general-purpose I/Os support multiple peripheral interfaces and parallel sensor or actuator connections without immediate need for I/O expanders.
• Regulatory readiness  RoHS compliance helps meet environmental and supply-chain requirements for commercial and industrial products.

Why Choose APA150-TQ100I?

The APA150-TQ100I positions itself as a mid-density ProASICPLUS FPGA option for designs that require a clear balance of logic elements, on-chip RAM, and a moderate number of I/Os in a compact, surface-mount package. Its industrial temperature rating and RoHS compliance make it appropriate for embedded applications that demand reliable operation across a wide thermal range.

Choose this device when your design requires roughly 6,144 logic elements, 36,864 bits of embedded RAM, and 66 I/Os in a 100-pin footprint with low-voltage operation. The APA150-TQ100I is well suited to projects where compactness, manufacturability, and industrial-grade operating conditions are key selection criteria.

Request a quote or submit a purchase inquiry to learn more about availability and lead times for the APA150-TQ100I. Our team can provide pricing and delivery details to support your design and procurement planning.
