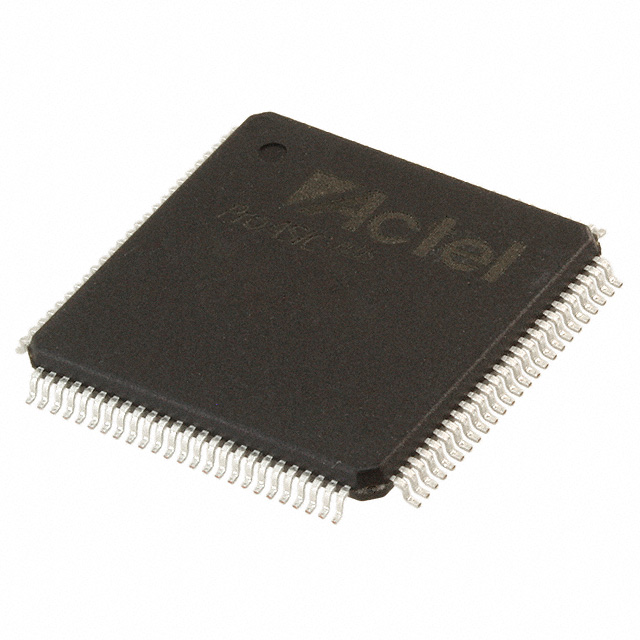

APA150-TQG100I

The APA150-TQG100I is a ProASICPLUS field programmable gate array (FPGA) IC from Microchip Technology. It provides a mid-range programmable logic solution with 6,144 logic elements, approximately 150,000 gates and on-chip embedded memory totaling 36,864 bits.

Designed for industrial applications, this surface-mount device offers 66 programmable I/O pins, low-voltage operation (2.3 V to 2.7 V) and an industrial operating temperature range of -40°C to 85°C, coupled with RoHS compliance.

Key Features

• Core Logic 6,144 logic elements (cells) and approximately 150,000 gates provide a versatile mid-range programmable logic resource for custom digital functions.
• Embedded Memory 36,864 bits of on-chip RAM (approximately 0.037 Mbits) for buffering, small FIFOs and distributed data storage.
• I/O 66 general-purpose I/O pins to support multiple interfaces and peripheral connections in compact designs.
• Power Single-voltage operation from 2.3 V to 2.7 V to match low-voltage system rails.
• Package & Mounting 100-LQFP (supplier package: 100-TQFP, 14 mm × 14 mm) in a surface-mount form factor suitable for PCB assembly.
• Temperature & Grade Industrial grade device rated for operation from -40°C to 85°C for use in temperature-demanding environments.
• Environmental Compliance RoHS compliant for regulatory and manufacturing requirements.

Typical Applications

• Industrial Control Implement motor control logic, PLC glue logic or real-time control functions using the device’s industrial temperature rating and integrated logic resources.
• Embedded System Integration Perform custom peripheral interfacing, bus bridging or signal aggregation using 66 I/O and on-chip logic to reduce external components.
• Sensor and I/O Aggregation Consolidate multiple sensor inputs and perform preprocessing or simple protocol translation with available logic and embedded memory.
• Prototyping and Low-Volume Production Deploy flexible, reprogrammable logic in compact 100-LQFP packaging for proof-of-concept and production runs.

Unique Advantages

• Highly integrated logic capacity: 6,144 logic elements and ~150,000 gates enable complex combinational and sequential functions without large external logic.
• Compact embedded memory: 36,864 bits of on-chip RAM provide local storage for buffering and small data structures, reducing external memory needs.
• Generous I/O count: 66 programmable I/O pins simplify system interfacing and reduce the need for additional I/O expanders.
• Industrial ready: Rated for -40°C to 85°C and designated industrial grade for use in temperature-challenging environments.
• Low-voltage operation: 2.3 V to 2.7 V supply range supports integration with low-voltage system designs.
• RoHS compliant: Meets environmental requirements for modern manufacturing and product lifecycles.

Why Choose APA150-TQG100I?

The APA150-TQG100I delivers a balanced combination of programmable logic density, I/O flexibility and on-chip memory in a compact 100-LQFP surface-mount package. Its industrial temperature rating and RoHS compliance make it suitable for embedded designs that require reliable operation across a wide temperature range.

This device is well suited for engineers designing mid-range programmable logic solutions for industrial control, embedded interfacing and low-volume production where integration, low-voltage operation and a moderate logic element count are key selection criteria.

Request a quote or submit an inquiry for the APA150-TQG100I to receive pricing and availability information from our sales team.
