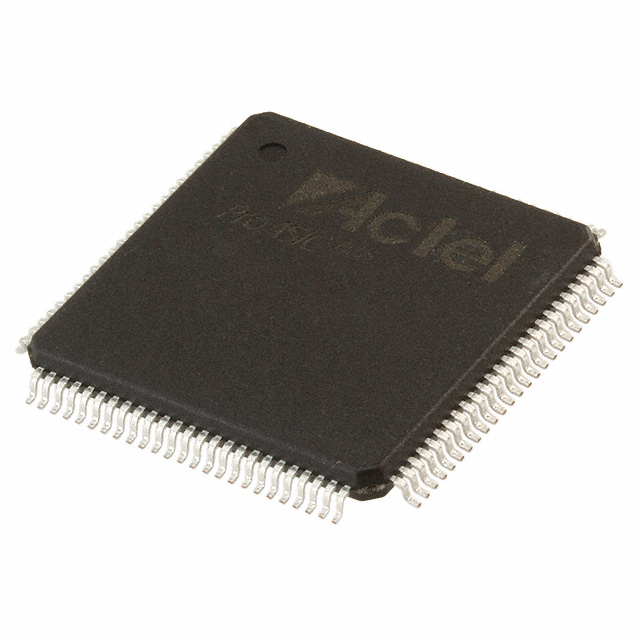

APA150-TQ100A

The APA150-TQ100A is a ProASICPLUS flash-based FPGA offering programmable logic in a compact 100-LQFP (14 × 14 mm) surface-mount package. It provides a mid-range logic capacity with integrated RAM and a broad I/O count, and is supplied with automotive-grade qualification for use in demanding temperature and reliability environments.

Key Features

• Logic Capacity  6,144 logic elements (equivalent to 150,000 gates) for implementing combinational and sequential logic functions.
• Embedded Memory  36,864 bits of on-chip RAM (approximately 0.037 Mbits) to store registers, FIFOs, and small buffers directly on the device.
• I/O  66 general-purpose I/O pins to connect sensors, actuators, buses and external peripherals.
• Power  Operates from a supply voltage range of 2.375 V to 2.625 V to match systems using low-voltage core rails.
• Package & Mounting  100-LQFP (14 × 14 mm) surface-mount package that simplifies board integration in space-constrained designs.
• Automotive Qualification  AEC-Q100 qualification and an operating temperature range of -40°C to 125°C for use in automotive applications requiring extended thermal capability.
• Compliance  RoHS-compliant device meeting common environmental requirements for modern electronics manufacturing.

Typical Applications

• Automotive Control Systems  Programmable logic and I/O density suitable for in-vehicle control modules and gateway interfaces that require AEC-Q100 qualification and wide temperature operation.
• Embedded System Integration  Used to implement custom logic, protocol bridging, and glue logic in embedded products where compact packaging and on-chip RAM are valuable.
• Sensor and Actuator Interfaces  Provides the I/O count and programmable resources to handle sensor aggregation, pre-processing, and actuator control within constrained board space.

Unique Advantages

• Automotive-qualified reliability  AEC-Q100 qualification and -40°C to 125°C operation ensure suitability for temperature-stressed, vehicle-mounted electronics.
• Balanced logic and memory  6,144 logic elements paired with 36,864 bits of embedded RAM allow implementation of moderate-complexity designs without external memory.
• Compact, manufacturable package  100-LQFP surface-mount package enables straightforward PCB assembly while conserving board area.
• Wide I/O support  66 I/O pins provide flexibility to interface with multiple peripherals, sensors, and bus connections directly.
• Low-voltage operation  Narrow supply range (2.375 V–2.625 V) supports systems designed around low-voltage core rails and helps simplify power supply design.
• Regulatory-ready  RoHS compliance supports modern manufacturing and environmental requirements.

Why Choose APA150-TQ100A?

The APA150-TQ100A delivers a balanced mix of programmable logic resources, embedded RAM, and I/O in a compact 100-LQFP package, with automotive-grade qualification for applications that demand extended temperature and reliability. Its specification set makes it well suited for designers building automotive and embedded systems that require on-chip logic and memory while maintaining a small PCB footprint.

Choosing this FPGA provides a clear path to reduce external component count, consolidate control functions, and meet environmental and temperature requirements — supporting scalable designs where predictable, qualified behavior matters.

Request a quote or contact our team to get pricing and availability for the APA150-TQ100A and to discuss how it can fit your design requirements.
