EPF8452ALI84-4

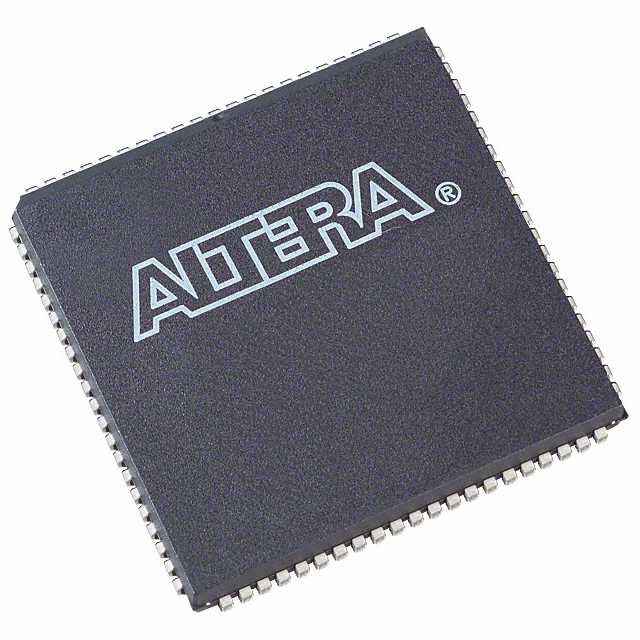

The EPF8452ALI84-4 is an industrial-grade FLEX 8000 family field programmable gate array (FPGA) in an 84-lead PLCC (J‑lead) surface-mount package. It provides moderate logic density and I/O capability for mid-range embedded applications that require in-field configurability and reliable operation across industrial temperature ranges.

Designed for system-level integration, this device targets applications such as digital signal processing, bus interfaces and high-speed controllers where a 5.0 V supply domain and robust I/O count are required.

Key Features

• Logic Capacity — 336 logic elements and approximately 4,000 gates to implement moderate-complexity logic and control functions.
• I/O and Packaging — 68 user I/O pins in an 84‑PLCC (29.31 × 29.31 mm) J‑lead package; surface-mount mounting for compact board integration.
• Power Supply — Operates from a 4.75 V to 5.25 V supply, compatible with 5.0 V system domains.
• Temperature and Grade — Industrial-grade device with an operating temperature range of −40 °C to 85 °C for deployment in demanding environments.
• Memory — No embedded on-chip RAM (Total RAM Bits: 0); logic and registers are provided by the FLEX architecture.
• Family-Level Architecture — Built on the FLEX 8000 programmable-logic family; family features include in-circuit reconfigurability, dedicated carry and cascade chains, and flexible interconnects for predictable routing (family-level feature set).
• Standards & Compliance — RoHS compliant.

Typical Applications

• Digital Signal Processing (DSP) — Provides a high register count and flexible logic resources suitable for DSP building blocks and data-path manipulation.
• Bus Interfaces and TTL Integration — 68 I/O pins and 5.0 V supply compatibility make this device suitable for bus bridging and TTL-level system interfaces.
• Coprocessor and Control Functions — Useful for offloading control logic or implementing specialized coprocessor tasks in embedded systems.
• High-Speed Controllers — FLEX 8000 family routing and dedicated arithmetic chains support deterministic timing for controller designs.

Unique Advantages

• Mid-range logic density: 336 logic elements and ~4,000 gates strike a balance between capability and cost for many embedded designs.
• Robust industrial operation: Industrial temperature rating (−40 °C to 85 °C) and surface-mount PLCC packaging enable deployment in industrial equipment.
• 5 V system compatibility: 4.75 V to 5.25 V supply range avoids extra level-shifting for 5.0 V domains.
• Flexible I/O count: 68 user I/O pins support multiple bus connections and peripheral interfaces on a single device.
• Family-level design ecosystem: Part of the FLEX 8000 family, which is supported by established place-and-route and design-entry tools (family-level support).
• Regulatory readiness: RoHS compliance supports modern manufacturing and environmental requirements.

Why Choose EPF8452ALI84-4?

The EPF8452ALI84-4 provides a practical combination of logic capacity, I/O availability, and industrial-grade reliability for mid-range FPGA tasks. Its 5.0 V supply compatibility and PLCC packaging make it well suited to retrofit, legacy, and industrial control designs that require reprogrammable logic without large-area footprints.

As part of the FLEX 8000 family, this device benefits from the family’s routing architecture and FPGA design flow, allowing teams to leverage established development tools and implementation techniques when deploying moderate-complexity programmable logic in production systems.

Request a quote or submit an inquiry to receive pricing and availability for EPF8452ALI84-4. Our team will respond with a customized quote and lead-time information.
