M2GL050T-1VFG400I
| Part Description |

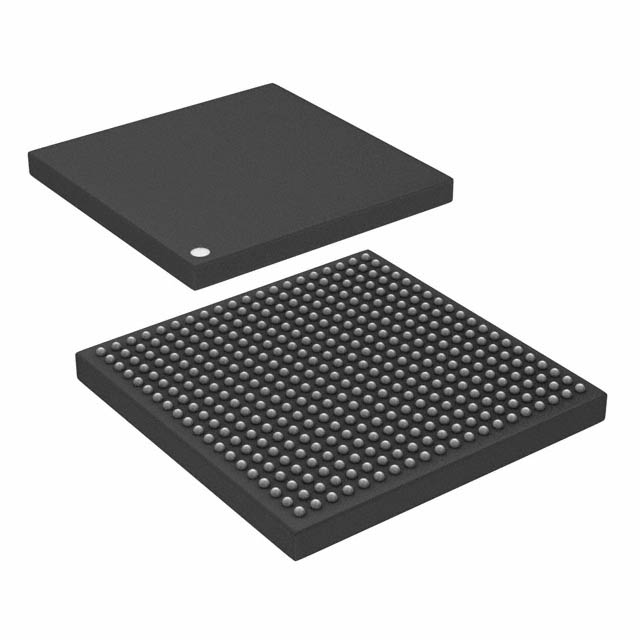

IGLOO2 Field Programmable Gate Array (FPGA) IC 207 1869824 56340 400-LFBGA |
|---|---|
| Quantity | 261 Available (as of May 5, 2026) |
| Product Category | Field Programmable Gate Array (FPGA) |
|---|---|
| Manufacturer | Microchip Technology |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 16 Weeks |
| Datasheet |
Specifications & Environmental
| Device Package | 400-VFBGA (17x17) | Grade | Industrial | Operating Temperature | -40°C – 100°C | ||
|---|---|---|---|---|---|---|---|
| Package / Case | 400-LFBGA | Number of I/O | 207 | Voltage | 1.14 V - 2.625 V | ||
| Mounting Method | Surface Mount | RoHS Compliance | ROHS3 Compliant | REACH Compliance | REACH Unaffected | ||
| Moisture Sensitivity Level | 3 (168 Hours) | Number of LABs/CLBs | 56340 | Number of Logic Elements/Cells | 56340 | ||
| Number of Gates | N/A | ECCN | 3A991D | HTS Code | 8542.39.0001 | ||
| Qualification | N/A | Total RAM Bits | 1869824 |
Overview of M2GL050T-1VFG400I – IGLOO2 Field Programmable Gate Array (FPGA)
The M2GL050T-1VFG400I is an IGLOO2 flash-based FPGA combining fourth-generation programmable fabric with high-performance communications interfaces and embedded system resources. It targets industrial applications that require low-power, secure, and reliable programmable logic with integrated memory and high-speed serial links.
Built on the IGLOO2 family architecture, this device delivers a mix of logic, embedded RAM, DSP mathblocks and multi-standard I/Os in a 400-ball LFBGA package, making it suitable for applications that need on-chip processing, memory interfacing and robust connectivity.
Key Features
- FPGA Fabric: Efficient 4-input LUT fabric with carry chains, providing a flexible logic foundation for custom digital designs.
- Logic Capacity: 56,340 logic elements for implementing medium-to-large custom logic and state machines.
- Embedded Memory: Approximately 1.87 Mbits of total on-chip RAM (1,869,824 bits) to support data buffering, on-chip storage and small working datasets.
- DSP Resources: Series-level mathblock architecture supports hardware multiplication and accumulation for signal processing tasks (series documentation describes up to 240 mathblocks).
- High-Speed Serial Interfaces: Series-capable SERDES and protocol support including PCI Express, XAUI/XGXS and native SERDES options for high-bandwidth links (series-level features).
- High-Speed Memory Controllers: Series-level DDRx memory controller support (LPDDR/DDR2/DDR3) and DDR bridging for high-throughput external memory access.
- Multi-Standard I/Os: 207 user I/Os supporting multiple voltage and signaling standards (LVCMOS, LVDS and DDR-related interfaces as described at the family level).
- Operating Conditions: Wide supply range of 1.14 V to 2.625 V and industrial temperature rating from -40 °C to 100 °C.
- Package & Mounting: 400-LFBGA package (supplier package: 400-VFBGA, 17 × 17) designed for surface-mount assembly.
- Security & Reliability: Flash-based nonvolatile configuration and family-level security features including encrypted bitstream support, device certificate and anti-tamper/zeroization mechanisms.
- Compliance: RoHS compliant for environmental conformity.
Typical Applications
- High‑speed networking and communications: Use the device’s series-capable SERDES lanes and PCIe/XAUI support to implement protocol bridges, PHY interfaces or packet processing functions.
- Signal processing and DSP: Leverage on-chip mathblocks and embedded RAM to accelerate filtering, transforms and other real-time DSP tasks.
- Memory interface and buffering: Implement DDR2/DDR3 memory controllers and DDR bridges for designs requiring external DRAM access and high-throughput buffering.
- Industrial control and embedded systems: Deploy the industrial-grade operating temperature range and multi-standard I/Os for sensor interfacing, motor control logic and machine automation subsystems.
Unique Advantages
- Highly integrated architecture: On-chip logic, significant embedded RAM and DSP resources reduce external component count and simplify board-level design.
- Flexible connectivity: Family-level high-speed serial protocols and multi-standard I/Os enable deployment across a range of communication and interface requirements.
- Industrial readiness: Specified operation from -40 °C to 100 °C and surface-mount 400-LFBGA packaging support reliable use in industrial environments.
- Security-focused features: Flash-based configuration plus family-level encrypted bitstream, device certificate and anti-tamper options help protect IP and supply-chain integrity.
- Scalable processing resources: Large logic element count and series-described DSP/mathblock resources allow designs to scale in complexity without immediate device changes.
Why Choose M2GL050T-1VFG400I?
The M2GL050T-1VFG400I positions IGLOO2 family capabilities into an industrial-grade, flash-configurable FPGA with a balanced mix of logic, embedded memory and high-speed interfaces. It is suited to engineers who need a secure, low-power programmable device with on-chip resources for signal processing, memory interfacing and robust connectivity.
For designs that prioritize integration, flexibility and industrial temperature operation, this device provides verifiable resources and family-level features that support long-term deployment and scalable design evolution.
Request a quote or submit an inquiry to get pricing, lead time and availability for M2GL050T-1VFG400I. Our team can provide assistance with ordering, volume pricing and technical sourcing information.
