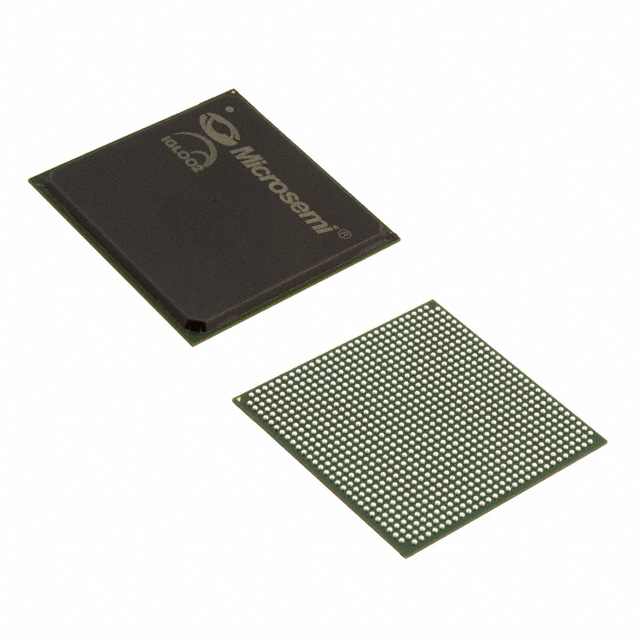

M2GL050T-1FGG896I
| Part Description |
IGLOO2 Field Programmable Gate Array (FPGA) IC 377 1869824 56340 896-BGA |
|---|---|
| Quantity | 201 Available (as of May 5, 2026) |
| Product Category | Field Programmable Gate Array (FPGA) |
|---|---|
| Manufacturer | Microchip Technology |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 16 Weeks |
| Datasheet |
Specifications & Environmental
| Device Package | 896-FBGA (31x31) | Grade | Industrial | Operating Temperature | -40°C – 100°C | ||
|---|---|---|---|---|---|---|---|
| Package / Case | 896-BGA | Number of I/O | 377 | Voltage | 1.14 V - 2.625 V | ||
| Mounting Method | Surface Mount | RoHS Compliance | ROHS3 Compliant | REACH Compliance | REACH Unaffected | ||
| Moisture Sensitivity Level | 3 (168 Hours) | Number of LABs/CLBs | 56340 | Number of Logic Elements/Cells | 56340 | ||
| Number of Gates | N/A | ECCN | 3A991D | HTS Code | 8542.39.0001 | ||
| Qualification | N/A | Total RAM Bits | 1869824 |
Overview of M2GL050T-1FGG896I – IGLOO2 Field Programmable Gate Array (FPGA)
The M2GL050T-1FGG896I is an IGLOO2 series flash-based FPGA from Microchip Technology, delivered in a 896-ball FBGA (31 × 31) package and specified for industrial operation. It combines programmable logic, a substantial I/O count and embedded memory to support mid-density FPGA designs that require flexible I/O, on-chip RAM and low-power operation across a wide supply range.
Targeted at applications that demand configurable logic with robust interfacing, this device provides 56,340 logic elements, approximately 1.87 Mbits of embedded RAM, and 377 user I/Os — enabling complex glue logic, protocol bridging, memory interfacing and DSP-accelerated functions within industrial temperature environments.
Key Features
- Logic Capacity — 56,340 logic elements for implementing moderate-complexity programmable logic and control functions.
- Embedded Memory — Approximately 1.87 Mbits of on-chip RAM to support buffers, FIFOs and local data storage.
- I/O and Package — 377 user I/Os presented in a 896-FBGA (31 × 31) package for high pin-count designs and compact PCB layouts.
- Power and Voltage — Operates across a 1.14 V to 2.625 V supply range to match diverse I/O standards and core requirements.
- Industrial Temperature Range — Rated for −40 °C to 100 °C, suitable for industrial deployments.
- Family-Level High-Speed Interfaces — IGLOO2 family features include support for high-speed serial links (up to 16 SERDES lanes), PCIe endpoint cores and XAUI/XGXS interfaces, useful for high-bandwidth communications when implemented.
- Memory Controller Options — IGLOO2 architecture provides DDRx memory controller support (DDR2/DDR3/LPDDR) with maximum memory clocking noted at the family level, enabling high-speed external memory interfacing where required.
- DSP and Math Resources — Family-level mathblocks and DSP resources (up to 240 mathblocks) are available for multiply-accumulate and signal-processing functions when used in designs targeting these capabilities.
- Security and Reliability Features — IGLOO2 family includes design and data security capabilities such as encrypted bitstream loading, anti-tamper features and device certificate options at the family level.
Typical Applications
- Industrial Control — Implement motor control logic, protocol conversion and local sequencing leveraging the device’s logic capacity and industrial temperature rating.
- High-Speed Communications — Use family-level SERDES, PCIe and XAUI/XGXS support to implement serial links, protocol bridging or PHY interfacing in networking and telecom modules.
- Memory Interface and Buffering — Integrate DDRx memory controllers and on-chip RAM for data buffering, packet buffering or frame storage in embedded systems.
- Signal Processing Acceleration — Apply the available mathblocks and embedded RAM for DSP tasks such as filtering, aggregation or checksum offload in measurement and data-acquisition systems.
Unique Advantages
- Balanced Logic and Memory: 56,340 logic elements paired with approximately 1.87 Mbits of embedded RAM provide a versatile platform for mixed control, interfacing and local data storage.
- Wide I/O Count in Compact Package: 377 user I/Os in an 896-FBGA (31 × 31) package simplify designs that require many external connections without excessively large PCBs.
- Flexible Supply Range: 1.14 V to 2.625 V operation supports multiple core and I/O voltage domains, easing integration with diverse peripherals and memory devices.
- Designed for Industrial Environments: −40 °C to 100 °C operating range aligns with industrial deployment requirements for robustness across temperature extremes.
- Family-Level High-Speed and Security Options: Access to IGLOO2 family features such as multi-lane SERDES, DDRx memory controllers and encrypted bitstream options enables scalable designs with enhanced connectivity and security when needed.
Why Choose M2GL050T-1FGG896I?
The M2GL050T-1FGG896I positions itself as a capable mid-density FPGA option for engineers who need a balanced combination of logic resources, on-chip RAM and a large I/O count in a compact BGA package. Its supported supply voltage range and industrial temperature rating make it suitable for embedded systems that must interface with a variety of peripherals and operate reliably across temperature extremes.
Designers seeking to implement serial communications, memory interfacing or DSP-accelerated tasks can leverage the IGLOO2 family capabilities alongside the device’s specific resources to create scalable, serviceable solutions with enhanced security and on-chip integration.
Request a quote or submit an inquiry to get pricing and availability for M2GL050T-1FGG896I and to discuss how this IGLOO2 FPGA can fit into your next design.
