M2GL060-1FG676I

The M2GL060-1FG676I is an IGLOO2 field programmable gate array (FPGA) IC from Microchip Technology designed for industrial embedded systems. It provides 56,520 logic elements, approximately 1.87 Mbits of embedded RAM, and 387 user I/Os in a 676‑FBGA (27×27) surface-mount package.

This device supports a wide supply voltage range (1.14 V to 2.625 V) and an industrial operating temperature range (−40 °C to 100 °C), making it suitable for designs that require sizeable logic capacity, significant on-chip memory, and high I/O density within robust thermal limits.

Key Features

• Logic Capacity  56,520 logic elements to implement complex combinational and sequential functions.
• Embedded Memory  Approximately 1.87 Mbits of on-chip RAM for buffering, state storage, and local data processing.
• I/O Density  387 user I/Os to support multiple interfaces, peripherals, and parallel signaling without external expanders.
• Power Supply Flexibility  Operates across a broad voltage range from 1.14 V to 2.625 V to accommodate varied system power domains.

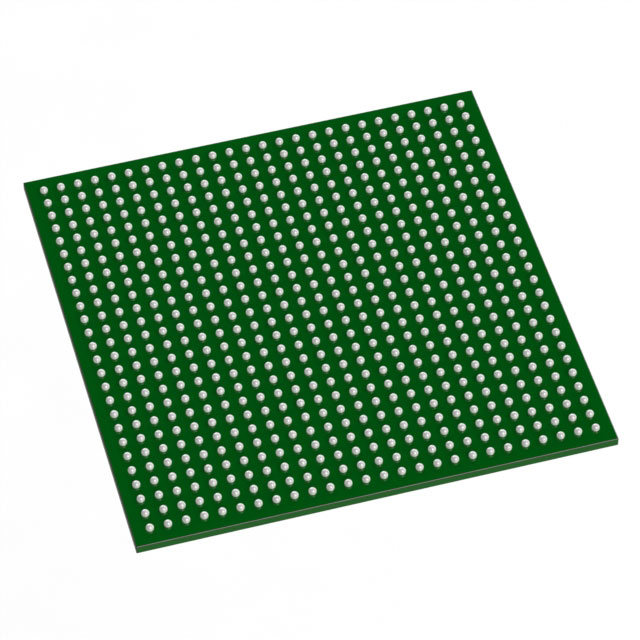

• Package and Mounting  676‑FBGA (27×27) package in a surface-mount form factor for compact, high-density PCB integration.
• Temperature Grade  Industrial temperature operation from −40 °C to 100 °C for use in demanding environments.
• RoHS Compliant  Meets RoHS environmental requirements.

Typical Applications

• Industrial Control Systems  Use the device to implement custom control logic, I/O aggregation, and local data buffering within industrial temperature requirements.
• High‑Density I/O Interfaces  Deploy as an interface bridge or protocol concentrator where many signals must be managed concurrently on a single package.
• Memory‑Intensive Embedded Logic  Leverage the on-chip RAM for local buffering, lookup tables, and intermediate data storage in embedded processing tasks.

Unique Advantages

• High logic density: 56,520 logic elements enable implementation of sizeable custom logic functions on a single device, reducing external glue logic.
• Significant on‑chip memory: Approximately 1.87 Mbits of embedded RAM lowers dependence on external memory for many buffering and stateful functions.
• Extensive I/O availability: 387 user I/Os simplify system integration by accommodating multiple peripherals and interfaces directly.
• Broad supply range: Operation from 1.14 V to 2.625 V allows flexibility when integrating with varied power domains.
• Industrial temperature rating: −40 °C to 100 °C operation supports deployment in harsh or temperature-variable environments.
• Compact FBGA package: 676‑FBGA (27×27) footprint supports dense PCB layouts while maintaining high pin count.

Why Choose M2GL060-1FG676I?

The M2GL060-1FG676I positions itself as a robust, high‑capacity IGLOO2 FPGA option for designs that require a balance of logic resources, embedded memory, and substantial I/O in an industrial temperature-rated device. Its wide supply voltage window and compact 676‑FBGA package make it suitable for space-constrained boards that still demand flexibility and reliability.

Designed and manufactured by Microchip Technology, this IGLOO2 FPGA is appropriate for engineering teams building industrial embedded systems, complex interface controllers, and memory‑aware logic blocks that benefit from on-chip resources and a high pin count.

Request a quote or submit a pricing and availability inquiry to receive detailed ordering and lead-time information for the M2GL060-1FG676I FPGA.
