M2GL150-1FCV484

The M2GL150-1FCV484 is an IGLOO2 Field Programmable Gate Array (FPGA) IC that delivers 146,124 logic elements and approximately 5.12 Mbits of on-chip RAM in a compact BFBGA package. It provides 248 I/O pins and is offered in a surface-mount 484-BFBGA package (supplier device package listed as 484-FBGA, 19×19).

Targeted for commercial embedded designs, this FPGA supports a wide supply range of 1.14 V to 2.625 V and operates over a 0 °C to 85 °C temperature range, making it suitable for a variety of general-purpose programmable-logic applications.

Key Features

• Core Logic 146,124 logic elements provide a high-density programmable fabric for implementing complex custom logic and control functions.
• Embedded Memory Approximately 5.12 Mbits of on-chip RAM to support buffering, lookup tables, and data storage without external memory for many designs.
• I/O Capacity 248 I/O pins to accommodate multiple interfaces, peripherals, and signaling requirements in compact systems.
• Power and Voltage Operates across a supply range of 1.14 V to 2.625 V to support different power architectures and design scenarios.

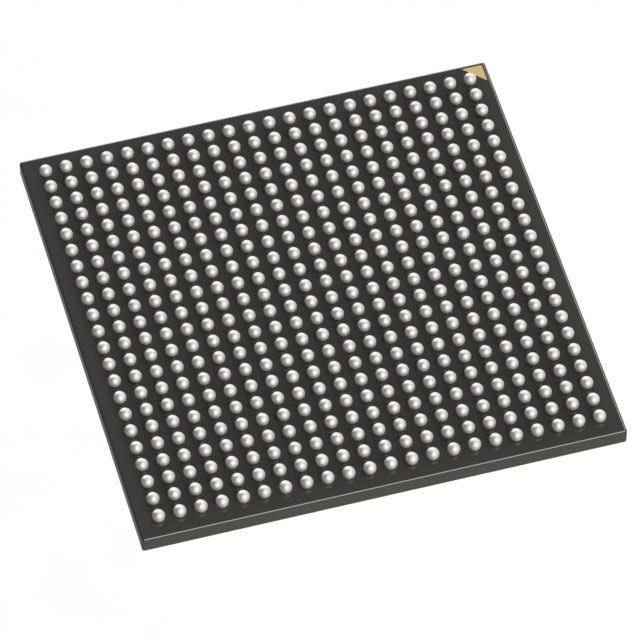

• Package & Mounting 484-BFBGA package (supplier device package: 484-FBGA, 19×19) in a surface-mount form factor for space-efficient PCB designs.
• Commercial Grade & Compliance Commercial temperature grade (0 °C to 85 °C) and RoHS-compliant construction for standard commercial applications.

Typical Applications

• Commercial Embedded Systems — Implement custom control logic, protocol handling, and peripheral interfacing for embedded product designs.
• Communications Equipment — Provide programmable logic and buffering resources for data path functions and interface bridging.
• Consumer Electronics — Integrate user interfaces, signal conditioning, and device control in compact form factors.
• Prototyping and Development Platforms — Use the FPGA’s logic density and on-chip memory to validate designs and accelerate development cycles.

Unique Advantages

• High Logic Density: 146,124 logic elements enable implementation of large-scale logic and multiple concurrent functions on a single device.
• Substantial On-Chip Memory: Approximately 5.12 Mbits of RAM reduces reliance on external memory for many buffering and storage needs.
• Generous I/O Count: 248 I/O pins support complex interfacing requirements and multiple peripheral connections.
• Flexible Power Range: Support for 1.14 V to 2.625 V supplies helps accommodate different system power domains.
• Compact Surface-Mount Package: 484-BFBGA (484-FBGA, 19×19) delivers a high-pin-count solution in a PCB-friendly footprint.
• Commercial-Grade Qualification: Rated for 0 °C to 85 °C operation and RoHS compliant for commercial product deployment.

Why Choose M2GL150-1FCV484?

The M2GL150-1FCV484 positions itself as a high-density, commercially graded IGLOO2 FPGA that combines ample logic resources, substantial embedded memory, and a large I/O complement in a compact BFBGA package. Its supply voltage flexibility and standard commercial temperature rating make it suitable for a wide range of general-purpose embedded applications where integration and board space are important.

This device is well suited to designers and development teams who require a dense programmable fabric with on-chip memory and extensive I/O for building and validating complex logic functions in commercial products and prototype platforms.

Request a quote or submit an inquiry to receive pricing and availability information for the M2GL150-1FCV484.
