M2GL150-1FCV484I

The M2GL150-1FCV484I is an IGLOO2 Field Programmable Gate Array (FPGA) IC from Microchip Technology. It delivers a high-density programmable logic fabric with extensive I/O and embedded memory for complex digital designs.

With 146,124 logic elements, approximately 5.12 Mbits of embedded memory and 248 I/O, this device targets industrial-grade applications that require significant on-chip resources, broad connectivity and reliable operation across a wide operating temperature range.

Key Features

• Core Logic 146,124 logic elements for implementing complex custom logic, control functions and data processing pipelines.
• Embedded Memory Approximately 5.12 Mbits of on-chip RAM to support buffering, lookup tables and memory-intensive logic without external memory.
• I/O Capacity 248 general-purpose I/O pins to support extensive external interfacing and parallel connectivity.
• Power Supply Range Operates from 1.14 V to 2.625 V, enabling integration into designs with varied core and I/O voltage requirements.
• Industrial Temperature Range Rated for operation from -40 °C to 100 °C, suitable for industrial environments that require extended temperature tolerance.

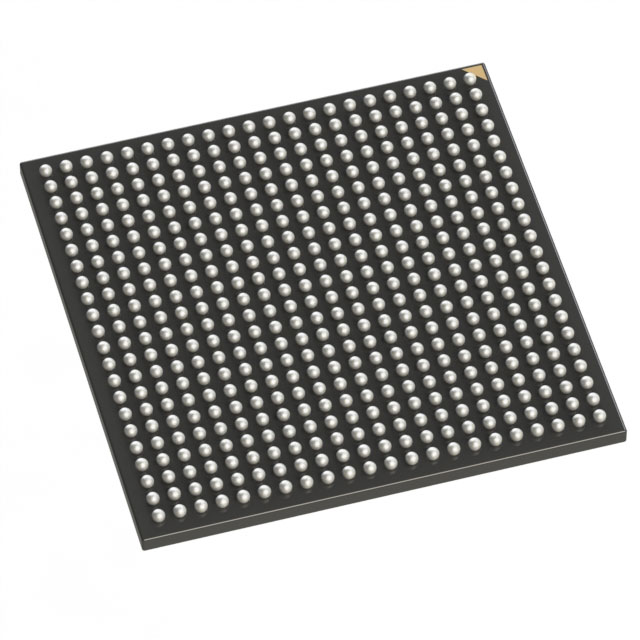

• Package and Mounting 484-BFBGA package (supplier device package 484-FBGA, 19×19) in a surface-mount form factor for compact board integration.
• Environmental Compliance RoHS compliant to meet common environmental and manufacturing requirements.

Typical Applications

• Industrial Control — Use the device for programmable logic in automation systems where industrial temperature range and high logic density enable advanced control and processing.
• Communications and Networking — Implement packet processing, protocol bridging or I/O aggregation leveraging the high I/O count and embedded memory for buffering and state storage.
• Embedded Systems — Integrate the FPGA for custom peripherals, real-time processing blocks and glue logic in embedded platforms requiring significant on-chip resources.

Unique Advantages

• High Logic Density: 146,124 logic elements provide capacity for large-scale custom logic without partitioning across multiple devices.
• Significant On-Chip Memory: Approximately 5.12 Mbits of embedded RAM reduces dependency on external memory and simplifies board design.
• Extensive I/O: 248 I/O pins enable broad interfacing options for sensors, peripherals and high-channel-count systems.
• Industrial Reliability: Rated for -40 °C to 100 °C, supporting deployments in demanding temperature environments.
• Compact BGA Package: 484-BFBGA (19×19) surface-mount package balances density and board-area efficiency for compact system designs.
• Wide Supply Margin: Flexible voltage supply range (1.14 V to 2.625 V) to accommodate various power architectures.

Why Choose M2GL150-1FCV484I?

The M2GL150-1FCV484I positions itself for designs that demand substantial programmable logic, embedded memory and I/O in an industrial-grade FPGA package. Its combination of 146,124 logic elements, approximately 5.12 Mbits of on-chip RAM and 248 I/O supports integration of complex functions while minimizing external components.

Available from Microchip Technology as part of the IGLOO2 family, this device is suited for engineers and procurement teams building industrial control, communications equipment and advanced embedded systems where density, temperature tolerance and environmental compliance are priorities.

Request a quote or submit a pricing and availability request to receive detailed procurement information for M2GL150-1FCV484I.
