XC4013E-3PQ208C

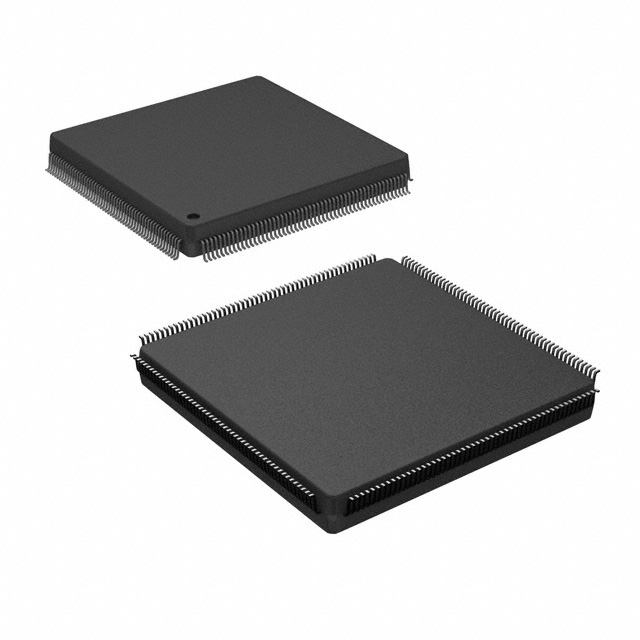

The XC4013E-3PQ208C is a commercial-grade Field Programmable Gate Array (FPGA) IC from AMD, part of the XC4000E/X family. It delivers programmable logic resources, on-chip RAM and a high I/O count in a 208-pin BFQFP surface-mount package for custom digital implementations.

With 1,368 logic elements, 18,432 bits of embedded RAM and 160 dedicated I/O pins, this device targets designs that need moderate logic density, ample I/O and legacy 5 V supply compatibility within a standard commercial temperature range.

Key Features

• Logic Capacity — 1,368 logic elements providing approximately 13,000 gates of combinational logic for custom digital functions and glue logic.
• Embedded Memory — 18,432 bits of on-chip RAM to support temporary storage, buffering and small lookup table needs without external memory.
• I/O Resources — 160 user I/O pins to support multi-signal interfacing and parallel connections in compact system designs.
• Package and Mounting — 208-BFQFP (208-PQFP, 28×28) surface-mount package provides a compact footprint for board-level integration.
• Power — Operates from a 4.75 V to 5.25 V supply, compatible with legacy 5 V systems and common digital power rails.
• Commercial Temperature Range — Rated for 0 °C to 85 °C operation for standard commercial applications.
• RoHS Compliant — Meets RoHS environmental requirements for lead-free assembly and regulatory compliance.

Typical Applications

• Custom Digital Logic — Implement user-defined state machines, protocol translators or glue logic using the device’s 1,368 logic elements and on-chip RAM.
• I/O-Intensive Interfaces — Leverage 160 I/O pins to connect multiple peripherals, sensors or parallel buses in embedded control and interfacing roles.
• Prototyping and Development — Use the XC4013E-3PQ208C for board-level prototyping where moderate gate count and RAM capacity are sufficient.

Unique Advantages

• Balanced Logic and Memory: 1,368 logic elements paired with 18,432 bits of RAM provide a practical balance for medium-complexity designs without external memory.
• High I/O Count: 160 I/O pins allow flexible signal routing and reduce the need for external I/O expanders.
• Standard 208-BFQFP Footprint: The 208-pin BFQFP package (28×28) simplifies PCB layout for compact systems and straightforward assembly.
• 5 V Supply Compatibility: Wide 4.75 V to 5.25 V operating range fits legacy 5 V systems and simplifies power provisioning in mixed-voltage designs.
• Commercial Temperature Rating: Rated 0 °C to 85 °C for reliable operation in general-purpose and consumer environments.
• RoHS Conformant: Compliant with RoHS to support lead-free manufacturing processes.

Why Choose XC4013E-3PQ208C?

The XC4013E-3PQ208C delivers a practical combination of programmable logic, embedded RAM and a high I/O count in a compact 208-pin BFQFP package, making it well suited for designers who need moderate logic density and flexible interfacing on a 5 V supply. Its commercial temperature rating and RoHS compliance make it a straightforward choice for consumer and general-purpose electronic applications.

Choose this device when you need a documented, AMD-sourced FPGA offering a balanced feature set for prototyping, interface logic and medium-complexity custom digital designs where on-chip memory and abundant I/O simplify the overall bill of materials.

Request a quote or submit a purchasing inquiry to receive availability and pricing information for the XC4013E-3PQ208C. Our team can provide lead-time details and support to help integrate this FPGA into your design.
