XC4013XL-3HT176C

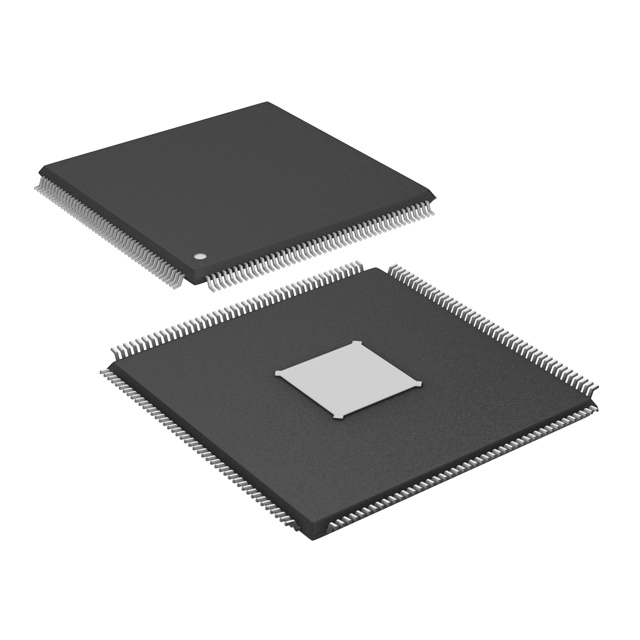

The XC4013XL-3HT176C is an AMD XC4000E/X family field programmable gate array (FPGA) delivered in a 176-pin LQFP package with exposed pad. It provides a compact, surface-mount programmable-logic solution for commercial-grade applications requiring on-chip logic, embedded RAM, and a moderate number of I/Os.

Designed for 3.0 V to 3.6 V supplies and operating at commercial temperatures (0 °C to 85 °C), this device is suitable for embedded and board-level designs that need reconfigurable logic and flexible I/O connectivity.

Key Features

• Programmable Logic Capacity  1,368 logic elements (cells) providing approximately 13,000 equivalent gates to implement glue logic, state machines, and custom datapaths.
• Embedded RAM  Approximately 18,432 bits of on-chip RAM for small buffers, FIFOs, and register file storage without external memory.
• I/O Density  145 user I/O pins to support a variety of peripheral interfaces and signal routing on high-density boards.
• Power  Single-supply operation from 3.0 V to 3.6 V to match common system rails.
• Package & Mounting  176-LQFP package with exposed pad; supplier device package listed as 176-TQFP (24×24). Surface-mount mounting type for standard PCB assembly.
• Operating Range  Commercial grade with an operating temperature range of 0 °C to 85 °C.
• Regulatory Status  RoHS compliant, supporting lead-free assembly and regulatory requirements for many commercial products.

Typical Applications

• Embedded control  Use the FPGA’s logic elements and on-chip RAM for custom control functions and finite-state machines in embedded systems.
• I/O interfacing  145 I/Os enable interface consolidation for sensor aggregation, peripheral bridging, and board-level signal routing.
• Prototyping and development  Reconfigurable logic and moderate capacity make this device useful for prototyping custom logic and validating designs before production.

Unique Advantages

• Balanced logic and memory  1,368 logic elements paired with 18,432 bits of RAM let you implement control logic and modest data buffering on-chip.
• High I/O count  145 I/Os reduce external glue logic and simplify board routing for I/O-heavy applications.
• Compact, manufacturable package  176-LQFP with exposed pad supports surface-mount assembly and improved thermal transfer on compact PCBs.
• Commercial-grade operating range  Rated for 0 °C to 85 °C to meet typical commercial product environments.
• Vendor-backed family  Part of the AMD XC4000E/X FPGA family, offering a known architecture and ecosystem for development and support.
• RoHS compliant  Supports lead-free manufacturing and regulatory needs for commercial product lines.

Why Choose XC4013XL-3HT176C?

The XC4013XL-3HT176C combines a practical mix of logic density, embedded RAM, and a high I/O count in a compact 176-pin surface-mount package. Its 3.0 V–3.6 V supply range and commercial temperature rating make it a straightforward choice for commercial embedded designs that require on-board programmable logic without the overhead of larger FPGA devices.

This device is well suited for engineers and procurement teams building small- to mid-complexity programmable logic solutions—where integration, predictable supply voltage, and manufacturable packaging deliver long-term value and straightforward system integration.
