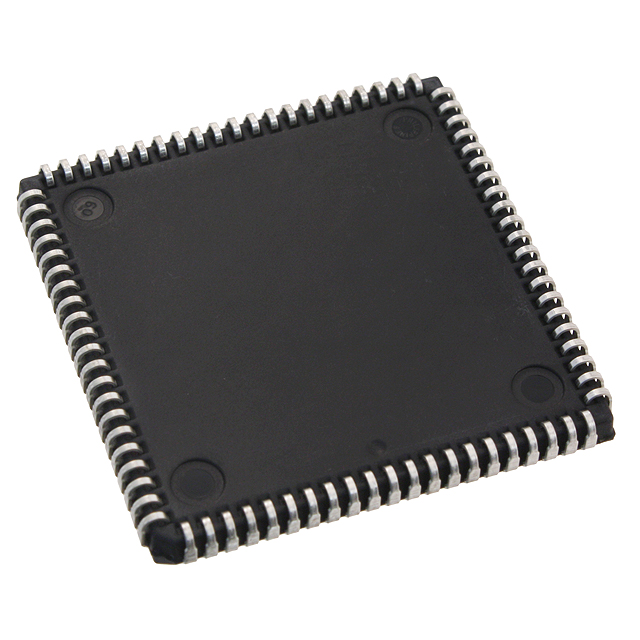

XCS05XL-5PC84C

The XCS05XL-5PC84C is a Spartan®-XL field programmable gate array (FPGA) IC offering 238 logic elements, 3,200 bits of on-chip RAM and up to 61 user I/Os in a compact 84-LCC (J-Lead) surface-mount package. Operating from 3.0 V to 3.6 V and rated for commercial temperature operation (0 °C to 85 °C), it delivers configurable logic and embedded memory for space-efficient digital designs.

This device is suitable for designs that require moderate logic capacity, on-chip buffering, and flexible I/O in a surface-mount PLCC footprint. RoHS compliance supports environmentally conscious manufacturing requirements.

Key Features

• Core Logic 238 logic elements provide programmable logic resources for custom digital functions and glue logic.
• Embedded Memory 3,200 bits of on-chip RAM offer local buffering and small data storage for state machines and data-path registers.
• I/O Capacity Up to 61 user I/Os enable connection to peripherals, sensors, and other ICs within a single device.
• Gate Count Approximately 5,000 gates of implementation capacity for moderate complexity logic designs.
• Power Single-supply operation from 3.0 V to 3.6 V for compatibility with common system rails.
• Package & Mounting 84-LCC (J-Lead) surface-mount package; supplier device package listed as 84-PLCC (29.31 × 29.31 mm) for compact board-level integration.
• Temperature & Grade Commercial grade device rated for operation from 0 °C to 85 °C.
• Environmental Compliance RoHS compliant to support restricted substance requirements.

Typical Applications

• Embedded Control Use the device’s 238 logic elements and 61 I/Os to implement control state machines, timing logic, and interface glue in smaller embedded systems.
• Signal Buffering and Small Data Stores The 3,200 bits of on-chip RAM provide local buffering and temporary storage for data-path operations and handshake buffering.
• I/O Expansion and Interface Logic Up to 61 user I/Os enable compact consolidation of interface logic for peripherals, sensors, and discrete digital signals.

Unique Advantages

• Compact, board-friendly package: 84-LCC (J-Lead) surface-mount construction allows high-density placement while maintaining a PLCC-compatible footprint.
• Balanced logic and memory: 238 logic elements combined with 3,200 bits of RAM deliver a practical mix of programmable logic and embedded storage for many control and glue applications.
• Generous I/O count: Sixty-one user I/Os provide flexibility to connect multiple peripherals without additional interface devices, reducing BOM complexity.
• Straightforward power requirements: Single-supply operation from 3.0 V to 3.6 V simplifies power-rail design.
• Commercial temperature rating: Rated 0 °C to 85 °C to match a wide range of consumer and commercial deployments.
• RoHS compliant: Supports regulatory requirements for restricted substances in finished products.

Why Choose XCS05XL-5PC84C?

The XCS05XL-5PC84C positions itself as a compact, programmable logic option that balances modest gate capacity with on-chip RAM and a substantial I/O complement. Its PLCC/J-lead package and surface-mount mounting make it suitable for space-constrained printed circuit boards where moderate programmable logic and buffering are required.

This FPGA is well suited to customers designing commercial-grade embedded control, interface consolidation, and small-data buffering solutions who need a single-device programmable option backed by established vendor technology. The combination of defined voltage range, package format, and RoHS compliance adds predictability for production and assembly planning.

Request a quote today to check pricing and availability for the XCS05XL-5PC84C and to discuss how its logic, I/O and memory resources can fit your next design.
