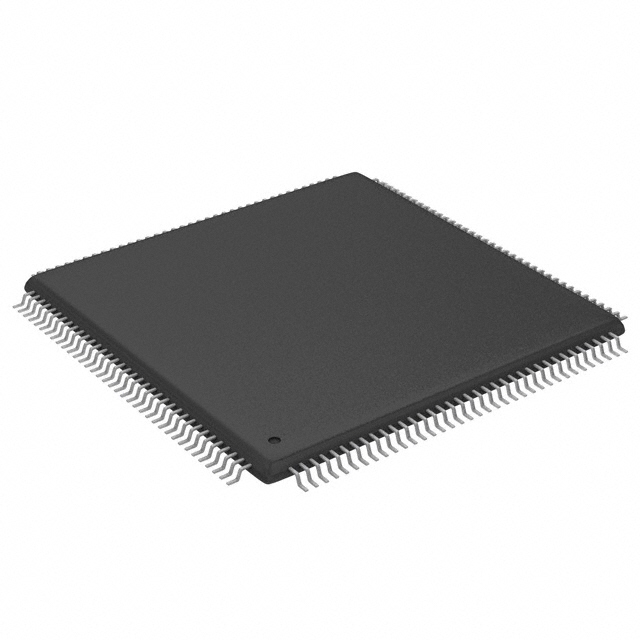

XCS10-3TQ144C

The XCS10-3TQ144C is a Spartan® Field Programmable Gate Array (FPGA) from AMD, offered in a 144-pin LQFP/TQFP footprint. It provides a compact, surface-mount FPGA solution with moderate logic capacity, on-chip memory, and a broad set of I/O for general-purpose embedded designs.

With 466 logic elements, 6,272 bits of on-chip RAM, 112 user I/O pins and an estimated 10,000 gates, this device targets applications that require configurable logic and flexible I/O in a commercial-grade, RoHS-compliant package.

Key Features

• Core Type  Spartan® field programmable gate array architecture in a 144-pin package for flexible hardware customization.
• Logic Capacity  466 logic elements enabling implementation of moderate-complexity logic functions and finite state machines.
• Embedded Memory  6,272 bits of on-chip RAM to support small buffers, FIFOs or local data storage.
• I/O  112 general-purpose I/O pins for interfacing with peripherals, sensors, and external logic.
• Gate Count  Approximately 10,000 gates to represent the aggregate combinational/sequential capacity of the device.
• Power  Single-supply operation from 4.75 V to 5.25 V for systems designed around standard 5 V rails.
• Package & Mounting  144-LQFP package case; supplier device package listed as 144-TQFP (20×20). Surface-mount mounting type suitable for PCB assembly.
• Temperature Range  Commercial-grade operating range of 0 °C to 85 °C for general-purpose applications.
• Environmental Compliance  RoHS compliant to support lead-free manufacturing requirements.

Unique Advantages

• Moderate logic density: 466 logic elements provide enough capacity for control logic, small datapaths, and glue logic without excessive board-level complexity.
• Generous I/O count: 112 I/O pins enable direct interfacing to multiple peripherals and external devices, reducing the need for additional I/O expanders.
• 5 V supply compatibility: Native operation from 4.75 V to 5.25 V fits designs that use standard 5 V power rails, simplifying power design.
• Compact surface-mount package: 144-LQFP / 144-TQFP (20×20) packaging balances board space and solderability for automated assembly.
• Commercial-grade reliability: Rated for 0 °C to 85 °C operation and RoHS compliance for mainstream embedded and electronics applications.

Why Choose XCS10-3TQ144C?

The XCS10-3TQ144C positions itself as a compact, commercial-grade FPGA option suitable for designs that need configurable logic, moderate on-chip memory, and a high I/O count in a standard 144-pin surface-mount package. Its 5 V supply range and RoHS compliance make it straightforward to integrate into existing board designs that use standard power rails and lead-free assembly processes.

This device is well suited for engineers and procurement teams looking for a verified Sparta­n® FPGA offering from AMD with clear, verifiable specifications for logic capacity, on-chip RAM, I/O count, package type, and operating conditions.

Request a quote or submit an inquiry to receive pricing and availability for the XCS10-3TQ144C.
