XCS10-3PC84C

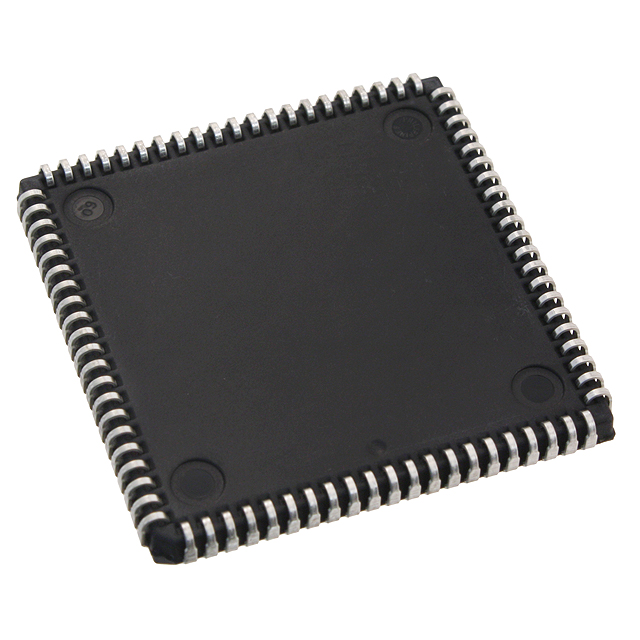

The XCS10-3PC84C is a Spartan® Field Programmable Gate Array (FPGA) from AMD, offering programmable logic resources and embedded RAM in a commercial-grade device. It combines logic capacity, on-chip memory and a moderate number of I/O for use in a range of commercial electronic designs.

Packaged in an 84-LCC (J-Lead) surface-mount package with a supplier device package of 84-PLCC (29.31×29.31), the device operates from a 4.75 V to 5.25 V supply and across a 0 °C to 85 °C temperature range.

Key Features

• Programmable logic capacity — Approximately 466 logic elements (cells) providing up to 10,000 gates for custom digital logic implementation.
• On-chip memory — Total RAM of 6,272 bits for state storage, buffering and small data structures.
• I/O resources — 61 user I/O pins to interface with external peripherals and signals.
• Power requirements — Operates from a 4.75 V to 5.25 V supply, compatible with standard 5 V power domains.
• Package and mounting — 84-LCC (J-Lead) surface-mount package; supplier device package 84-PLCC (29.31×29.31) for PCB integration.
• Operating range and grade — Commercial grade device specified for 0 °C to 85 °C operation.
• Environmental compliance — RoHS compliant.

Typical Applications

• Commercial embedded systems — Implement custom control logic and finite state machines in commercial products.
• I/O expansion and protocol interfacing — Use available I/O to bridge peripherals or adapt legacy interfaces.
• Prototyping and development — Evaluate and prototype custom digital designs that require moderate logic and on-chip RAM.

Unique Advantages

• Balanced resource mix: A combination of approximately 466 logic elements and 6,272 bits of on-chip RAM supports a range of control and buffering tasks without external memory.
• Standard 5 V compatibility: Operates on a 4.75 V to 5.25 V supply, easing integration into existing 5 V system power domains.
• Compact surface-mount package: 84-LCC (J-Lead) and 84-PLCC footprint supports efficient PCB layout and assembly for commercial products.
• Commercial temperature rating: Specified for 0 °C to 85 °C operation, suitable for typical commercial environments.
• Regulatory readiness: RoHS compliance simplifies environmental regulatory considerations in product design.

Why Choose XCS10-3PC84C?

The XCS10-3PC84C delivers a practical combination of programmable logic, on-chip RAM and I/O count in a commercial-grade Spartan® FPGA package from AMD. It is well suited to designers who need moderate logic capacity, embedded memory and standard 5 V operation in a surface-mount PLCC package.

For projects that require a compact FPGA solution with clear power and temperature specifications, the XCS10-3PC84C provides a straightforward option that aligns with common commercial product requirements.

Request a quote or submit an inquiry to receive pricing and availability information for the XCS10-3PC84C.
