IS25LX128-JHLE

The IS25LX128-JHLE is a 128Mbit serial NOR Flash memory device from ISSI, Integrated Silicon Solution Inc featuring an advanced Octal SPI interface for high-speed data transfer. Organized as 16M x 8, this non-volatile memory delivers fast read performance at up to 133MHz clock frequency, making it ideal for embedded systems requiring rapid code execution and data storage. With support for both traditional SPI and high-performance Octal I/O modes, this Flash memory provides design flexibility for applications ranging from industrial controllers to consumer electronics.

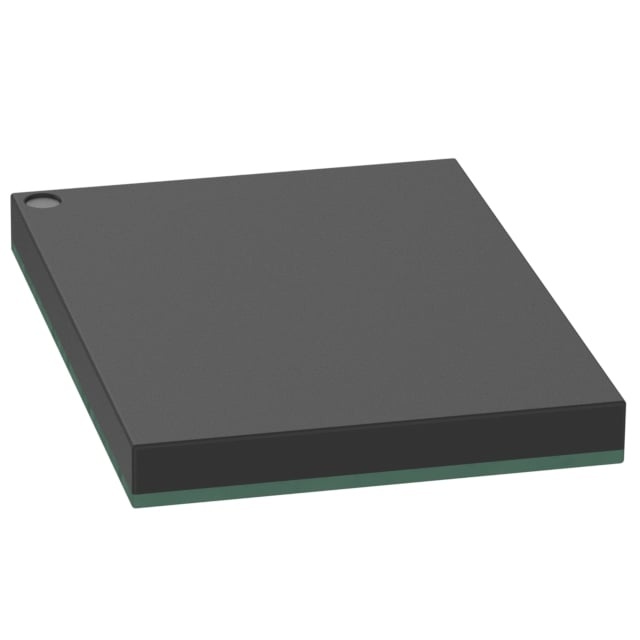

Operating across an extended temperature range of -40°C to 105°C and powered by a standard 2.7V to 3.6V supply, the IS25LX128-JHLE offers reliable performance in demanding environmental conditions. The compact 24-TFBGA (6x8) package minimizes PCM footprint while the Octal interface reduces pin count compared to parallel Flash alternatives.

Key Features

• High-Density Storage - 128Mbit (16 Megabyte) capacity provides ample space for firmware, configuration data, and data logging in embedded applications.
• Octal SPI Interface - Eight-bit wide SPI interface with support for up to 133MHz clock frequency enables faster data throughput compared to standard Quad SPI implementations, reducing boot times and improving system responsiveness.
• Dual Interface Compatibility - Supports both traditional SPI modes and Octal I/O operation, allowing designers to optimize the interface based on performance requirements and pin availability.
• Extended Temperature Range - Qualified for -40°C to 105°C ambient operation, ensuring reliable data retention and access in industrial, automotive, and outdoor applications.
• Wide Voltage Range - 2.7V to 3.6V supply voltage accommodates both 3.3V and lower-voltage system designs, simplifying power supply design.
• Compact TFBGA Package - 24-ball thin fine-pitch ball grid array (6x8mm) minimizes board space while providing excellent thermal performance.

Typical Applications

• Industrial Control Systems - This Flash memory stores firmware and configuration data for PLCs, motor drives, and industrial HMIs where the extended temperature range and high-speed Octal interface support reliable operation in factory environments with fast boot requirements.
• Consumer Electronics - The IS25LX128-JHLE provides code storage and data logging for set-top boxes, smart home devices, and appliances where the compact package and flexible SPI interface enable space-efficient designs with good performance.
• Embedded Computing - Serves as boot Flash and data storage for embedded processors and microcontrollers, where the Octal SPI interface accelerates code execution from Flash and the 128Mbit density accommodates feature-rich firmware.
• Communications Equipment - Stores firmware and calibration data in network switches, routers, and telecommunications equipment where non-volatile storage with fast read access ensures quick system initialization.
• Medical Devices - Provides reliable firmware and data storage for portable and benchtop medical instruments where the wide operating temperature range and stable performance support critical healthcare applications.

Unique Advantages

• Faster Boot and Code Execution: The Octal SPI interface delivers up to 2x the throughput of Quad SPI, reducing system boot time and enabling faster execute-in-place (XIP) performance for responsive embedded applications.
• Simplified Migration Path: Backward compatibility with standard SPI modes allows designers to upgrade from Quad or standard SPI Flash with minimal hardware changes, protecting existing design investments.
• Reduced Pin Count: Serial interface requires fewer pins than parallel Flash while the Octal mode provides performance approaching parallel solutions, simplifying PCB routing and reducing connector costs.
• Extended Industrial Operation: The -40°C to 105°C temperature range ensures consistent performance across industrial and harsh-environment applications without requiring temperature management circuitry.
• Design Flexibility: Multiple interface modes and wide voltage tolerance allow a single part number to serve diverse applications, reducing inventory complexity and qualification costs.
• Space-Efficient Footprint: The 6x8mm TFBGA package provides excellent memory density for size-constrained designs while maintaining compatibility with standard PCB assembly processes.

Why Choose the IS25LX128-JHLE?

The IS25LX128-JHLE represents an excellent choice for designers seeking high-performance serial Flash with the flexibility to scale from cost-sensitive to performance-critical applications. The Octal SPI interface provides a significant performance advantage over traditional Quad SPI while maintaining pin efficiency, making it particularly suitable for embedded systems where boot speed and code execution performance directly impact user experience. The extended temperature qualification and wide voltage range ensure this Flash memory performs reliably in industrial, automotive, and outdoor applications.

For applications requiring non-volatile code storage with fast read access, generous capacity, and proven Flash technology, the IS25LX128-JHLE delivers dependable performance in a compact, industry-standard package. Its active lifecycle status ensures long-term availability for production designs.

Get Started Today

Contact our technical sales team to discuss how the IS25LX128-JHLE can meet your embedded Flash memory requirements. We provide detailed technical support, competitive pricing, and reliable delivery to help you bring your designs to production quickly and confidently.
