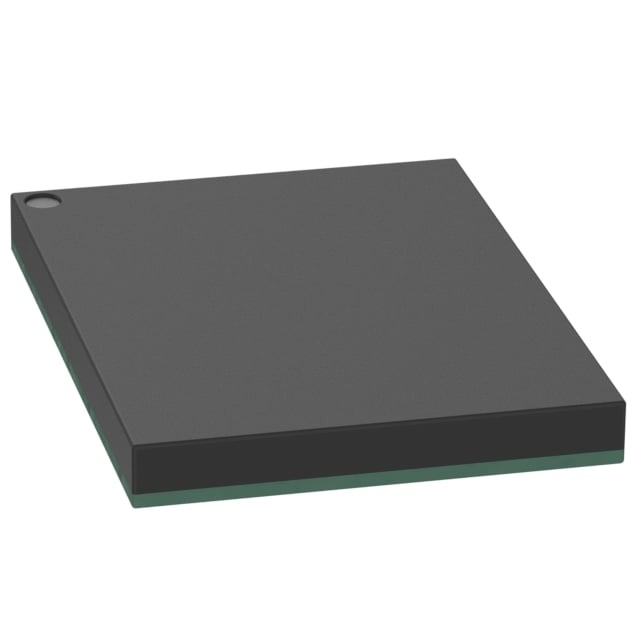

IS25LX256-JHLE

The IS25LX256-JHLE is a high-performance 256Mbit NOR flash memory from ISSI featuring Octal SPI interface for applications requiring fast read throughput and flexible programming. Built on advanced FLASH technology with a 32M x 8 organization, this memory device operates at clock frequencies up to 133MHz and supports both standard SPI and high-speed Octal I/O modes. Designed for industrial and embedded systems where extended temperature tolerance and reliable non-volatile storage are essential, the IS25LX256-JHLE delivers robust performance across a wide operating range of -40°C to 105°C.

This flash memory provides designers with a versatile storage solution that balances density, speed, and thermal resilience, making it well-suited for applications requiring boot code storage, firmware updates, data logging, and configuration management in challenging environmental conditions.

Key Features

• High-Density Storage - 256Mbit (32 megabytes) capacity organized as 32M x 8, providing ample space for firmware, boot code, and data logging in embedded systems.
• Octal SPI Interface - Supports both standard SPI and high-speed Octal I/O modes up to 133MHz, enabling faster data transfer rates compared to traditional quad SPI solutions for reduced boot times and improved system responsiveness.
• Extended Temperature Range - Operates reliably from -40°C to 105°C (TA), making it suitable for industrial, automotive peripheral, and outdoor applications where ambient conditions vary significantly.
• Flexible Voltage Operation - 2.7V to 3.6V supply voltage range accommodates various system power architectures and enables compatibility with both 3.3V and lower-voltage designs.
• Compact Package - Available in a space-efficient 24-pin TFBGA (6x8mm) package, ideal for designs with tight PCB real estate constraints.
• Non-Volatile Storage - FLASH technology retains data without power, essential for storing boot loaders, configuration parameters, and critical system data.

Typical Applications

• Industrial Control Systems - This NOR flash provides reliable boot code storage and firmware update capability for PLCs, industrial controllers, and HMIs where extended temperature operation ensures consistent performance in factory floor and process control environments.
• Embedded Computing Platforms - The IS25LX256-JHLE serves as program storage and data logging memory in single-board computers, IoT gateways, and edge computing devices where the Octal SPI interface accelerates boot times and enables faster application loading.
• Communication Infrastructure - Network routers, switches, and base station equipment utilize this flash memory for firmware storage and configuration data retention, benefiting from the high-speed interface for rapid system initialization and field upgrades.
• Medical Devices - Patient monitoring equipment and diagnostic instruments leverage the non-volatile storage for embedded software and calibration data where reliability across temperature variations supports operation in diverse clinical environments.
• Instrumentation and Test Equipment - Measurement systems and automated test equipment use this flash memory for storing measurement routines, calibration tables, and logged data where the 256Mbit capacity accommodates complex test programs and extended data capture.

Unique Advantages

• Faster Boot and Load Times: The Octal SPI interface delivers higher throughput than quad SPI alternatives, reducing system startup delays and improving user experience in embedded applications.
• Design Flexibility with Voltage Range: The 2.7V to 3.6V operating range simplifies power supply design and enables integration into both legacy 3.3V systems and newer low-power architectures without level translation.
• Thermal Resilience for Harsh Environments: The -40°C to 105°C ambient temperature specification ensures reliable operation in industrial settings, outdoor enclosures, and automotive peripheral applications where temperature extremes are common.
• Simplified PCB Layout: The compact 24-TFBGA package minimizes board space requirements while the standardized footprint facilitates density upgrades or supplier qualification without major layout changes.
• Field Update Capability: In-system programmability enables firmware updates and configuration changes after deployment, extending product lifecycles and reducing maintenance costs.
• Active Lifecycle Status: Current production availability supports long-term design commitments and simplifies procurement planning for products with extended service lifespans.

Why Choose IS25LX256-JHLE?

The IS25LX256-JHLE represents a practical choice for embedded system designers seeking to balance storage capacity, interface performance, and environmental tolerance. Its Octal SPI capability provides a clear upgrade path from quad SPI designs without requiring wholesale interface changes, while the extended temperature range addresses the thermal demands of industrial and outdoor installations.

For applications where boot time matters, data integrity is critical, and operating environments are challenging, this flash memory delivers the combination of speed, reliability, and thermal performance required in modern embedded systems. The device's active lifecycle status and standard package options further support long-term product planning and supply chain stability.

Request a Quote

To discuss pricing, availability, and technical specifications for the IS25LX256-JHLE or to request samples for evaluation in your design, please contact our sales team. We can provide detailed datasheets, application notes, and design support to help you integrate this flash memory into your next embedded system project.
