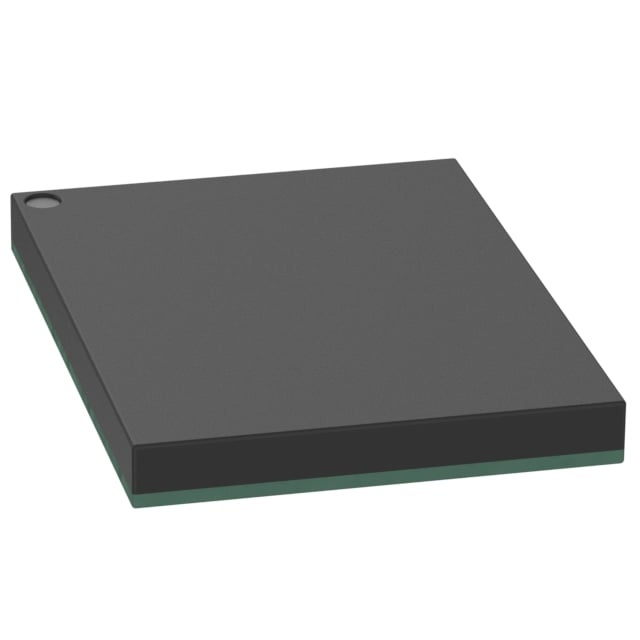

IS25WX256-JHLE

The IS25WX256-JHLE is a 256Mbit serial NOR flash memory device featuring Octal SPI interface technology for high-speed data transfer. Built on advanced FLASH technology with a 32M x 8 memory organization, this device delivers 200MHz clock frequency for demanding embedded applications. The compact 24-TFBGA package offers an ideal solution for space-constrained designs requiring fast, reliable non-volatile storage.

Designed for industrial and commercial temperature ranges, this flash memory combines high performance with flexible interfacing options, making it suitable for systems requiring both high throughput and compatibility with existing SPI infrastructure.

Key Features

• High-Speed Octal Interface - The SPI - Octal I/O interface provides 200MHz clock operation, delivering significantly faster read and write performance compared to traditional SPI flash while maintaining backward compatibility with standard SPI protocols.
• Memory Architecture - 256Mbit (32MB) capacity organized as 32M x 8, providing flexible addressing for a wide range of firmware storage and data logging applications.
• Low Voltage Operation - Operates from 1.7V to 2V supply voltage, enabling power-efficient designs and compatibility with low-voltage systems and battery-powered applications.
• Extended Temperature Range - Rated for -40°C to 105°C ambient operation, ensuring reliable performance in industrial environments and automotive applications with wide thermal variations.
• Compact Package - 24-TFBGA (6x8mm) package minimizes board space while providing robust electrical performance and thermal characteristics.

Typical Applications

• Industrial Controllers - This flash memory provides fast, reliable firmware storage for PLCs, motion controllers, and industrial gateways where the extended temperature range ensures consistent operation in harsh factory environments.
• Automotive Infotainment - The high-speed octal interface enables rapid boot times and responsive performance for automotive dashboard displays and multimedia systems, while the wide temperature tolerance supports in-cabin and under-hood installations.
• IoT Edge Devices - The low-voltage operation and compact footprint make this flash ideal for connected sensors and edge computing modules where space and power consumption are critical constraints.
• Communication Equipment - Network switches, routers, and base station controllers benefit from the fast read speeds for configuration storage and rapid system initialization.
• Consumer Electronics - Smart home devices, wearables, and portable gadgets utilize this flash for firmware storage and user data, leveraging the small package and low power characteristics.

Unique Advantages

• Faster Boot and Load Times: The 200MHz octal interface delivers up to 8x higher throughput than standard quad SPI, reducing system initialization time and improving user experience.
• Simplified Design Migration: SPI compatibility allows existing designs to upgrade from slower flash devices with minimal hardware and firmware changes, reducing development risk and time-to-market.
• Reduced Power Consumption: Low-voltage operation reduces system power draw and enables compatibility with modern low-power microcontrollers and processors without level translation.
• Industrial Reliability: Extended temperature rating and active lifecycle status provide long-term availability for industrial and automotive applications requiring multi-year product lifecycles.
• Space-Efficient Implementation: The compact 24-pin TFBGA package reduces PCB footprint by up to 40% compared to SOIC alternatives, enabling smaller product form factors.
• Design Flexibility: The octal interface can operate in dual or quad modes, providing design flexibility to balance performance requirements with PCB routing complexity.

Why Choose IS25WX256-JHLE?

This flash memory is positioned for applications requiring the performance of octal SPI in a compact, low-power package with industrial temperature capability. It's ideal for designs transitioning from slower quad SPI or parallel flash where higher throughput improves system responsiveness without requiring a complete interface redesign. The device's active lifecycle status and wide temperature range make it particularly suitable for industrial equipment, automotive systems, and commercial products requiring long-term availability and reliable operation across diverse environments.

For embedded systems where boot time, firmware update speed, and data access performance directly impact user experience, the IS25WX256-JHLE delivers measurable improvements while maintaining compatibility with established SPI infrastructure and design practices.

Get Started

Ready to integrate the IS25WX256-JHLE into your next design? Contact our sales team to request detailed specifications, pricing, and availability information. Our technical support staff can assist with interface design, timing optimization, and firmware integration to help you maximize the performance benefits of this high-speed flash memory.
