MTFC64GAJAEDN-AIT TR

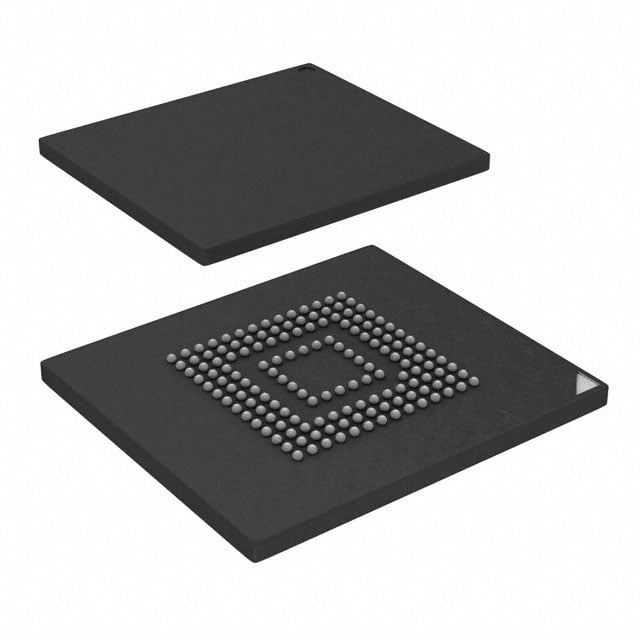

The MTFC64GAJAEDN-AIT TR is a 512 Gbit (64 GByte) e.MMC memory device integrating a MultiMediaCard controller with NAND Flash memory in a 169-ball LFBGA (14 × 18 mm) package. It implements the JEDEC/MMC standard version 5.0 architecture and provides onboard non-volatile storage for embedded systems.

Designed for applications that require embedded storage and boot capability, this device combines high-density NAND Flash organization with a multi-signal MMC interface and on-die management features to simplify system integration and storage management.

Key Features

• Memory Core 512 Gbit NAND Flash organized as 64G × 8 in an e.MMC memory format.
• Standards Compliance JEDEC/MMC standard version 5.0-compliant implementation (JESD84-B50).
• Integrated Controller + NAND MultiMediaCard controller integrated with NAND Flash to provide managed, non-volatile storage.
• Interface Flexibility Advanced 12-signal MMC interface supporting ×1, ×4, and ×8 I/Os selectable by the host; SDR/DDR modes up to 52 MHz; HS200/HS400 modes.
• Power Domains VCC 2.7–3.6 V and VCCQ dual-voltage support 1.70–1.95 V or 2.7–3.6 V as specified in the device documentation.
• System & Data Management Features including ECC and block management, reliable write, discard and sanitize, background operation, and device health report for maintained data integrity.
• Security & Protection Replay-protected memory block (RPMB), temporary/permanent and power-on write protection, lock card and write-protect command classes.
• Boot and Maintenance High-speed boot operation, field firmware update (FFU), hardware reset signal, and power-off notification support system-level maintenance and firmware management.
• Package & Temperature 169-LFBGA (14 × 18 mm × 1.4 mm) package; operating temperature range –40°C to +85°C (TA).

Typical Applications

• Embedded storage and boot Use as onboard non-volatile memory for system boot and firmware storage leveraging the device’s high-speed boot capability.
• Firmware and field updates Field firmware update (FFU) and background operation features enable in-system firmware maintenance and updates.
• Secure data areas Replay-protected memory block (RPMB) and multiple write-protection options support secure storage for credentials and protected data.

Unique Advantages

• Standards-based implementation: JEDEC/MMC 5.0 compliance ensures consistent behavior with host controllers that follow the same standard.
• Integrated managed storage: The combination of controller and NAND Flash reduces host-side management overhead and simplifies BOM.
• Flexible interface modes: Selectable ×1/×4/×8 I/Os and SDR/DDR/HS200/HS400 support enable adaptation to a range of host performance requirements.
• Data integrity features: On-die ECC, block management, reliable write, and device health reporting help maintain data reliability over the device lifetime.
• Secure and protected partitions: RPMB, multiple partition attributes, and write-protection mechanisms enable secure storage partitions and controlled access.
• Wide operating range and compact package: –40°C to +85°C rating in a compact 169-LFBGA package supports space-constrained embedded designs.

Why Choose MTFC64GAJAEDN-AIT TR?

The MTFC64GAJAEDN-AIT TR delivers a managed, high-density e.MMC storage solution that combines Micron NAND Flash with an integrated MMC controller and a feature set focused on data integrity, security, and in-system maintainability. Its JEDEC/MMC 5.0 compliance and flexible interface modes make it suitable for embedded designs that require a compact, integrated non-volatile memory subsystem.

As part of a Micron e.MMC family that spans multiple densities, this device provides a scalable option for designs needing onboard storage with boot capability, secure partitions, and firmware-update support, backed by Micron's production datasheet specifications.

To request a quote or submit a procurement request for MTFC64GAJAEDN-AIT TR, please reach out to your purchasing channel or submit a request for pricing and availability.
