MTFC64GAJAEDQ-AIT TR

The MTFC64GAJAEDQ-AIT TR is an e.MMC™ embedded memory device combining a MultiMediaCard (MMC) controller with NAND Flash to provide 512 Gbit of non-volatile storage (organized as 64G × 8). It implements NAND flash memory and an integrated controller compliant with JEDEC/MMC standard version 5.0.

Designed for embedded storage and system-boot applications, the device delivers high-capacity, managed flash with selectable I/O widths and multiple high-speed interface modes while supporting extended operating temperatures down to –40°C.

Key Features

• Memory 512 Gbit NAND Flash organized as 64G × 8; non-volatile storage suitable for managed embedded storage.
• Controller + NAND Integration Integrated MultiMediaCard controller and NAND Flash in a single e.MMC device for simplified board-level integration.
• Standards Compliance JEDEC/MMC standard version 5.0-compliant (JESD84-B50), ensuring compatibility with MMC 5.0 hosts.
• Interface and Modes Advanced 12-signal interface with selectable ×1, ×4, and ×8 I/Os; supports SDR and DDR modes up to 52 MHz, plus HS200/HS400 modes.
• Power Supply VCC: 2.7–3.6 V; VCCQ (dual voltage): 1.65–1.95 V or 2.7–3.6 V, supporting host systems with different I/O voltage levels.
• Reliability and Management ECC and block management implemented; features include reliable write, discard and sanitize, device health report, and field firmware update (FFU).
• Security and Partitioning Replay-protected memory block (RPMB), multiple partitions with enhanced attributes, temporary and power-on write protection, and permanent write protection.

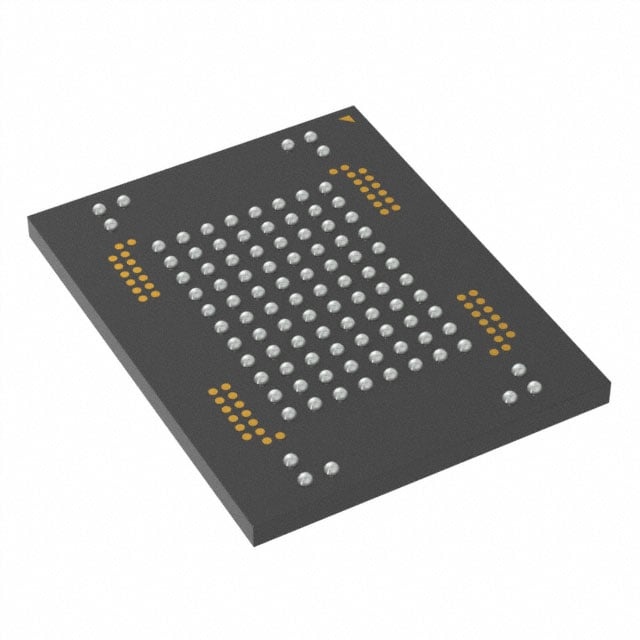

• Package and Temperature 100-ball LBGA package (14 mm × 18 mm × 1.4 mm); operating temperature range –40°C to +85°C (AIT).
• Operational Features Boot operation (high-speed boot), sleep mode, hardware reset, high-priority interrupt (HPI), data strobe pin, background operation, and power-off notification.

Typical Applications

• Embedded storage and system boot High-capacity e.MMC with dedicated boot operation and partitioning support for embedded system boot and primary storage.
• Secure data regions RPMB and write-protection features provide protected storage areas for security-sensitive data and authenticated payloads.
• Managed flash deployments ECC, block management, device health reporting, and field firmware update support lifecycle management in deployed systems.

Unique Advantages

• Highly integrated solution: Combines MMC controller and NAND Flash in one device to reduce BOM and simplify PCB integration.
• Standards-based interface: JEDEC/MMC 5.0 compliance and selectable ×1/×4/×8 I/Os enable straightforward host interoperability.
• Flexible performance modes: SDR/DDR up to 52 MHz plus HS200/HS400 support enables scalable performance options with the same hardware.
• Robust data management: Built-in ECC, block management, reliable write, and device health reporting improve data integrity and maintainability.
• Security and partition control: RPMB, multiple partitions, and write-protection features facilitate secure storage and controlled access.
• Wide operating temperature: Specified for –40°C to +85°C operation (AIT), supporting designs that require extended temperature operation.

Why Choose MTFC64GAJAEDQ-AIT TR?

The MTFC64GAJAEDQ-AIT TR positions as a high-capacity, managed e.MMC storage component that integrates NAND flash and an MMC controller to simplify system design while delivering features for secure, reliable embedded storage. Its JEDEC/MMC 5.0 compliance, flexible I/O modes, and comprehensive flash management features make it suitable for designs that require partitioning, secure regions, and lifecycle support.

This device is suited for engineering teams and procurement looking for a compact, integrated storage solution with 512 Gbit capacity, robust data-management capabilities, and support for extended operating temperatures.

Request a quote or submit an availability request for MTFC64GAJAEDQ-AIT TR to receive pricing and lead-time information.
