MTFC64GAJAEDQ-AAT

The MTFC64GAJAEDQ-AAT is a 512 Gbit e.MMC memory device integrating a MultiMediaCard (MMC) controller with NAND flash storage. It implements a JEDEC/MMC standard version 5.0-compliant architecture with advanced interface options and on-device management intended for embedded non-volatile storage.

Designed for applications requiring high-capacity removable-style MMC storage in a compact package, the device offers selectable I/O widths, multiple high-speed modes, and reliability features useful for system boot, secure partitions, and background data management.

Key Features

• Memory Type & Capacity  512 Gbit NAND flash organized as 64G × 8, providing high-density non-volatile storage.
• Standards Compliance  JEDEC/MMC standard version 5.0-compliant, supporting standardized host interfaces and command classes.
• Electrical  VCC supply range 2.7–3.6 V and VCCQ dual-voltage support (1.65–1.95 V; 2.7–3.6 V) as specified in the datasheet.
• Interface & Performance Modes  Advanced 12-signal MMC interface with selectable ×1, ×4, and ×8 I/Os; SDR/DDR modes up to 52 MHz clock speed; supports HS200 and HS400 modes.
• Data Management & Security  Includes ECC and block management, Replay-Protected Memory Block (RPMB), temporary and permanent write protection, discard and sanitize, and reliable write features.
• System Features  Boot operation (high-speed boot), field firmware update (FFU), device health report, power-off notification, hardware reset signal, multiple partitions with enhanced attributes, and high-priority interrupt (HPI).

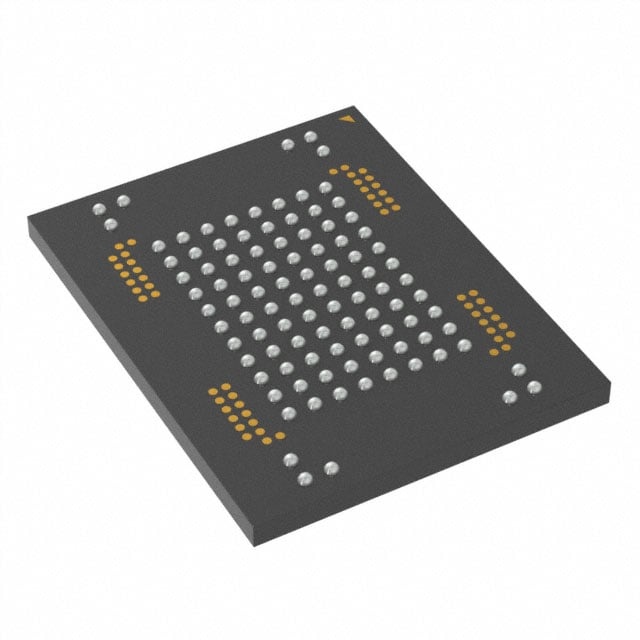

• Package & Thermal  100-ball LBGA package (100-LBGA, 14 mm × 18 mm); specified operating temperature range from –40 °C to +105 °C (TA).

Typical Applications

• Embedded system boot storage  High-speed boot operation and on-device partitioning enable use as primary boot and firmware storage in embedded designs.
• Secure data and authentication  RPMB and write-protection features support secure key storage and authenticated data regions.
• High-capacity data logging  512 Gbit capacity plus background operation and reliable write make the device suitable for large data capture and logging in temperature-challenging environments (–40 °C to +105 °C).
• Firmware updatable systems  Field firmware update (FFU) and device health reporting facilitate in-field maintenance and reliability monitoring.

Unique Advantages

• Standards-based integration: JEDEC/MMC 5.0 compliance simplifies host integration with a standardized MMC controller and command set.
• Flexible interface modes: Selectable ×1/×4/×8 I/Os and support for SDR/DDR, HS200 and HS400 modes provide adaptable throughput and compatibility with varying host requirements.
• High-density, compact package: 512 Gbit in a 100-ball LBGA (14 mm × 18 mm) reduces board area while delivering large storage capacity.
• On-device data protection: Hardware and firmware features such as ECC, reliable write, RPMB, and write protection help safeguard data integrity and security.
• Operational robustness: Specified operation from –40 °C to +105 °C enables deployment in systems exposed to wide temperature ranges.
• Maintenance and reliability support: Field firmware update, device health report, and power-off notification features aid long-term serviceability and uptime.

Why Choose IC FLASH 512GBIT MMC 100LBGA?

The MTFC64GAJAEDQ-AAT combines a MMC controller with high-density NAND flash to deliver a compact, standards-compliant embedded storage solution. Its combination of selectable I/O widths, high-speed modes, security partitions, and on-device management features makes it suitable for designs that require integrated storage with robust data protection and update capabilities.

With operating support from –40 °C to +105 °C and a 100-ball LBGA footprint, the device targets applications needing high capacity in a small form factor while maintaining operational resilience and serviceability.

Request a quote or submit an inquiry to obtain pricing and availability for the MTFC64GAJAEDQ-AAT and evaluate it for your design requirements.
