MTFC64GAJAECE-AIT TR

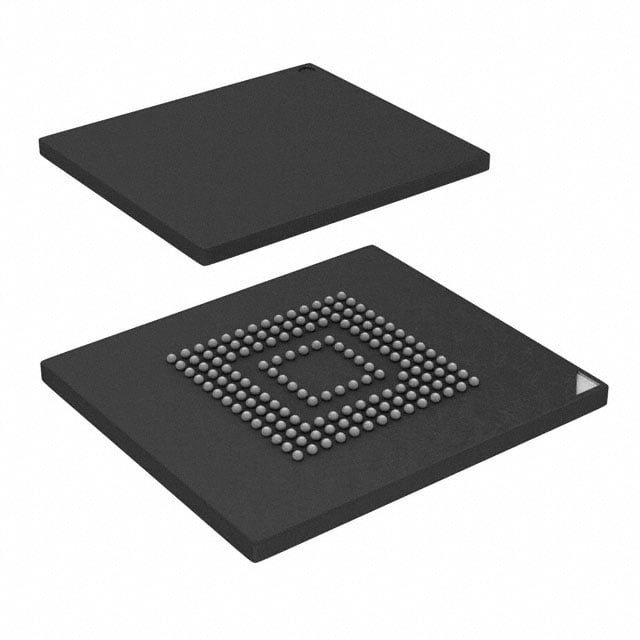

The MTFC64GAJAECE-AIT TR is a 512 Gbit non-volatile NAND Flash memory device in Micron’s e•MMC™ family. It integrates a MultiMediaCard (MMC) controller and NAND Flash in a 169-LFBGA (14 × 18 mm) package for compact embedded storage.

Designed to the JEDEC/MMC standard version 5.0, the device provides an MMC interface with multi-I/O options and features aimed at bootable and secure embedded storage, operating across a −40°C to 85°C ambient temperature range.

Key Features

• Memory  512 Gbit NAND Flash organized as 64G × 8 for non-volatile data storage.
• Interface  JEDEC/MMC 5.0-compliant MMC interface with advanced 12-signal connectivity and selectable ×1, ×4, and ×8 I/O widths.
• Performance Modes  Supports SDR/DDR modes up to 52 MHz and high-speed HS200/HS400 modes for accelerated data transfer.
• Power and IO Voltages  VCC: 2.7–3.6V; VCCQ (dual voltage): 1.70–1.95V or 2.7–3.6V, enabling flexible host voltage configurations.
• System Reliability  Built-in ECC and block management, reliable write, discard and sanitize functions, and device health reporting help maintain data integrity and lifecycle visibility.
• Security and Partitioning  Replay-protected memory block (RPMB), multiple partitions with enhanced attributes, temporary and permanent write protection, and lock features for secure storage needs.
• Boot and Maintenance  Boot operation (high-speed boot), field firmware update (FFU), background operation and power-off notification features support robust system boot and firmware management.
• Package and Temperature  169-ball LFBGA package (14 × 18 mm) specified for operation from −40°C to +85°C (TA).

Typical Applications

• Boot storage for embedded hosts  High-speed boot operation and MMC interface make the device suitable for storing boot firmware and images used by host controllers.
• Secure data storage  RPMB and write-protection features provide authenticated and protected storage regions for secure keys and sensitive data.
• Field-updatable systems  Field firmware update (FFU) support and device health reporting facilitate in-service firmware updates and lifecycle monitoring.

Unique Advantages

• Standards-based integration: JEDEC/MMC 5.0 compliance ensures predictable behavior with MMC-host controllers that support the standard.
• Flexible performance modes: SDR/DDR up to 52 MHz and HS200/HS400 support let designers optimize throughput for different system requirements.
• Secure partitioning and protection: RPMB, multiple partitions, and write-protection features enable hardware-supported security and data separation.
• Integrated reliability features: On-device ECC and block management reduce host overhead for wear leveling and error correction.
• Wide operating temperature: Specified operation from −40°C to +85°C supports a range of temperature environments for embedded systems.
• Compact BGA package: 169-LFBGA (14 × 18 mm) packaging provides a high-density, space-efficient footprint for compact designs.

Why Choose IC FLASH 512GBIT MMC 169LFBGA?

The MTFC64GAJAECE-AIT TR combines Micron’s NAND Flash with an integrated MMC controller to deliver a compact, standards-compliant e.MMC storage solution. Its feature set — including JEDEC/MMC 5.0 support, multiple I/O widths, high-speed modes, RPMB security, and on-device reliability functions — positions it for designs that require embedded boot capability, secure partitions, and in-field firmware management.

This device is suited to designers seeking a dense, integrated flash module in a 169-LFBGA package with specified operation from −40°C to +85°C and flexible voltage support (VCC/VCCQ). It provides long-term value through integrated maintenance and security features and Micron’s controller-plus-NAND architecture.

Request a quote or submit an inquiry for the MTFC64GAJAECE-AIT TR to obtain pricing and availability information for your project requirements.
