MTFC64GAJAECE-5M AIT TR

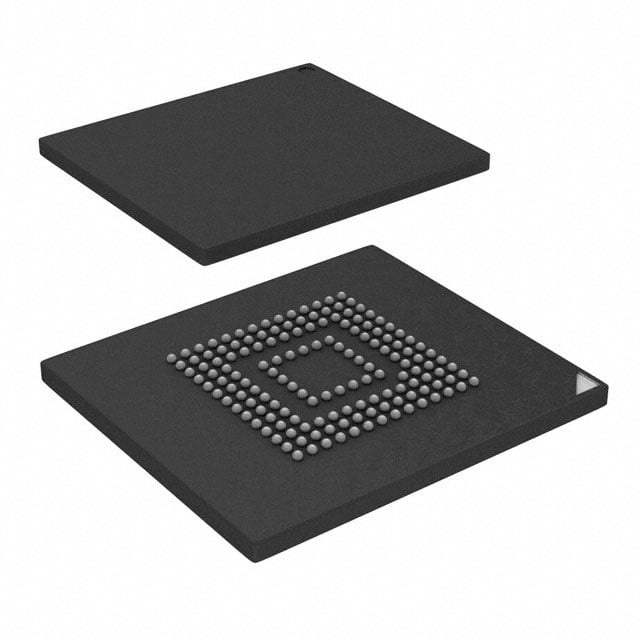

The MTFC64GAJAECE-5M AIT TR is a Micron e.MMC memory device combining a MultiMediaCard (MMC) controller with NAND Flash in a single package. It provides 512 Gbit of non-volatile NAND storage organized as 64G × 8 and is offered in a 169-ball LFBGA package.

Designed for embedded storage use, this JEDEC/MMC 5.0–compliant device supports high-speed boot and multi-partition operation while delivering controller-managed flash features useful for system firmware, secure partitions, and general-purpose non-volatile storage.

Key Features

• Core Architecture Integrated MultiMediaCard (MMC) controller plus NAND Flash that implements ECC and block management for managed non-volatile storage.
• Memory 512 Gbit total capacity organized as 64G × 8 to provide high-density storage in a single package.
• Standards and Modes JEDEC/MMC standard version 5.0–compliant with support for SDR/DDR modes up to a 52 MHz clock, and HS200/HS400 operation.
• Interface Options Advanced 12-signal interface with host-selectable ×1, ×4, and ×8 I/Os and a data strobe pin for timing support.
• Voltage VCC supply range 2.7–3.6 V and VCCQ dual-voltage support of 1.70–1.95 V or 2.7–3.6 V for flexible system integration.
• Security and Partitioning Features RPMB (Replay-Protected Memory Block), multiple partitions with enhanced attributes, permanent and power-on write protection, and temporary write protection.
• Boot and Reliability Features High-speed boot operation, reliable write, background operation, device health report, and field firmware update (FFU) support.
• System Management and Safety Hardware reset signal, high-priority interrupt (HPI), sleep mode and sleep notification, power-off notification, discard and sanitize functions.
• Package & Temperature 169-ball LFBGA (14 × 18 mm, 169-LFBGA) package and operating temperature range from −40°C to +85°C (TA).

Typical Applications

• System Boot and Firmware Storage Use as high-speed boot media and dedicated firmware partitions leveraging the device’s boot operation support.
• Embedded Non-Volatile Storage Integrated MMC controller plus NAND Flash provides managed storage for embedded systems requiring compact, high-density memory.
• Secure Data Storage RPMB and multiple partition attributes enable secure credential and protected data storage within device-managed partitions.

Unique Advantages

• Standards Compliance: JEDEC/MMC 5.0 compliance ensures predictable behavior with hosts that support the same MMC specification.
• Flexible I/O Options: Selectable ×1/×4/×8 I/Os and SDR/DDR modes up to 52 MHz enable designers to match performance to system requirements.
• Integrated Flash Management: On-device ECC and block management simplify host requirements for wear-leveling and error handling.
• Secure Partition Support: RPMB, write protection options, and enhanced partition attributes provide mechanisms for secure and segregated storage.
• Robust System Features: Hardware reset, HPI, power-off notification and background operation features support resilient system-level behavior.
• Temperature and Packaging: Industrial temperature range (−40°C to +85°C) in a compact 169-LFBGA package supports space-constrained board designs.

Why Choose IC FLASH 512GBIT MMC 169LFBGA?

The MTFC64GAJAECE-5M AIT TR offers a compact, integrated e.MMC solution combining Micron NAND Flash with an MMC controller and managed features such as ECC, RPMB, and boot support. Its JEDEC/MMC 5.0 compliance, flexible I/O modes, and dual-voltage VCCQ options make it suitable for embedded designs that require high-density non-volatile storage with controller-managed reliability.

This device is well suited to engineers and procurement teams designing embedded systems needing a single-package storage solution that balances density, managed flash features, and system-level functionality across an industrial temperature range.

To request a quote or submit a parts inquiry for the MTFC64GAJAECE-5M AIT TR, please contact our sales channel with your project details and required quantities.
