MTFC64GAJAECE-5M AIT
| Part Description |
IC FLASH 512GBIT MMC 169LFBGA |
|---|---|
| Quantity | 1,072 Available (as of May 5, 2026) |
| Product Category | Memory |
|---|---|
| Manufacturer | Micron Technology Inc. |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | RFQ |
| Datasheet |
Specifications & Environmental
| Device Package | 169-LFBGA (14x18) | Memory Format | FLASH | Technology | FLASH - NAND | ||
|---|---|---|---|---|---|---|---|
| Memory Size | 512 Gbit | Access Time | N/A | Grade | Industrial | ||
| Clock Frequency | N/A | Voltage | N/A | Memory Type | Non-Volatile | ||
| Operating Temperature | -40°C ~ 85°C (TA) | Write Cycle Time Word Page | N/A | Packaging | 169-LFBGA | ||
| Mounting Method | Non-Volatile | Memory Interface | MMC | Memory Organization | 64G x 8 | ||
| Moisture Sensitivity Level | 1 (Unlimited) | RoHS Compliance | Unknown | REACH Compliance | REACH Unknown | ||
| Qualification | N/A | ECCN | 3A991B1A | HTS Code | 8542.32.0071 |
Overview of MTFC64GAJAECE-5M AIT – IC FLASH 512GBIT MMC 169-LFBGA
The MTFC64GAJAECE-5M AIT is an integrated e.MMC memory device combining a MultiMediaCard controller with NAND Flash storage. It provides 512 Gbit of non-volatile NAND memory organized as 64G × 8 and implements the JEDEC/MMC 5.0 standard.
Designed for embedded storage applications that require a standards-compliant MMC interface, the device delivers selectable I/O widths, multiple transfer modes, and a compact 169-ball LFBGA package with an operating range of −40°C to +85°C.
Key Features
- Core & Memory Architecture Integrated MMC controller with NAND Flash; 512 Gbit capacity organized as 64G × 8 for high-density embedded storage.
- Standards Compliance JEDEC/MMC standard version 5.0–compliant, aligning interface behavior with the JESD84-B50 specification.
- Interface Flexibility Advanced 12-signal MMC interface supporting ×1, ×4, and ×8 selectable I/Os; SDR/DDR modes up to 52 MHz and HS200/HS400 modes.
- Power Domains & Voltage Options VCC operating range 2.7–3.6 V and VCCQ dual-voltage options of 1.70–1.95 V or 2.7–3.6 V as specified in the datasheet.
- Security & Boot Features Boot operation (high-speed boot), replay-protected memory block (RPMB), temporary and permanent/power-on write protection, lock card and write-protection command classes.
- Data Management & Reliability ECC and block management, reliable write, discard and sanitize, device health reporting, background operation and power-off notification features.
- Serviceability Field firmware update (FFU) capability and device health report allow in-field maintenance and monitoring.

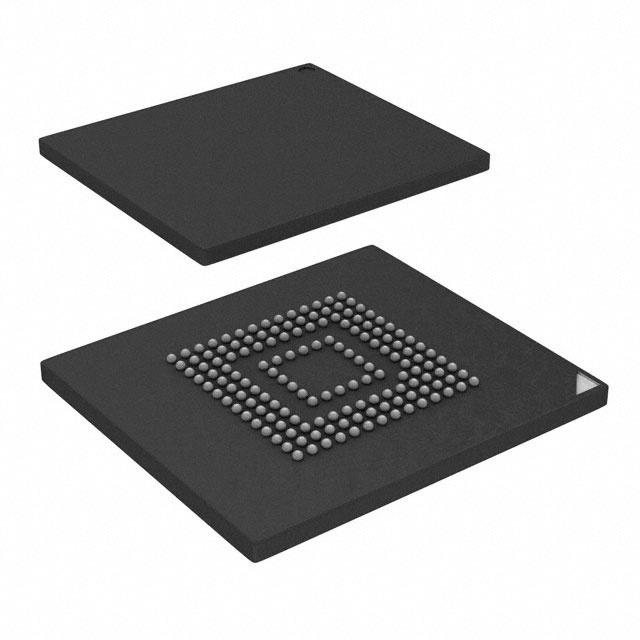

- Package & Temperature 169-ball LFBGA package (14 mm × 18 mm × 1.4 mm) and operating temperature range from −40°C to +85°C (TA).
Unique Advantages
- Standards-based integration: JEDEC/MMC 5.0 compliance ensures predictable behavior with MMC host controllers that follow the same standard.
- Configurable performance modes: Selectable ×1/×4/×8 I/Os and support for SDR/DDR and HS200/HS400 modes provide flexibility to match host bandwidth and system design.
- Robust data protection: RPMB, ECC, write-protection options and power-off notification reduce risk of data corruption and provide layered protection.
- Field maintainability: Field firmware update and device health reporting simplify in-field diagnostics and firmware maintenance.
- Compact, industrial-temperature package: 169-LFBGA footprint and −40°C to +85°C rating support space-constrained designs and extended temperature operation.
- Integrated controller and NAND: Combining controller and NAND Flash in a single e.MMC device reduces system integration complexity compared to separate components.
Why Choose IC FLASH 512GBIT MMC 169LFBGA?
The MTFC64GAJAECE-5M AIT positions itself as a compact, standards-compliant e.MMC storage option that merges a MultiMediaCard controller with 512 Gbit of NAND Flash. Its combination of MMC 5.0 compliance, multiple I/O configurations, and comprehensive data-management features makes it suitable for embedded designs that require dense, managed non-volatile storage.
This device is appropriate for designs needing integrated storage with boot capability, secure storage regions (RPMB), and field firmware update support—providing a balance of capacity, interface flexibility, and data integrity features in a 169-ball LFBGA package rated for −40°C to +85°C operation.
Request a quote or submit an inquiry to receive pricing, availability, and lead-time information for MTFC64GAJAECE-5M AIT.
