LS1012ASE7HKA

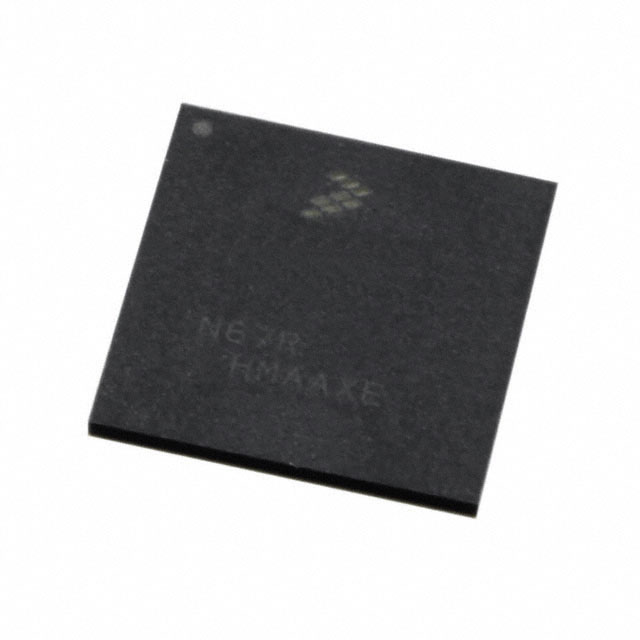

The LS1012ASE7HKA is an NXP QorIQ Layerscape microprocessor IC featuring a single 64-bit ARM® Cortex®-A53 core running at 800 MHz in a compact 211-FCLGA (9.6 × 9.6 mm) package. It is designed for fanless, small form-factor networking and embedded storage applications where integration, low power and security are priorities.

Built for consumer-grade designs, the device combines a low typical power envelope (1 W typical as described in product documentation) with hardware packet acceleration and integrated I/O to simplify system design for IoT gateways, NAS and entry-level Ethernet gateways.

Key Features

• Core  Single ARM® Cortex®-A53 64-bit core running at 800 MHz with NEON SIMD and dual-precision FPU; ECC-protected L1 and L2 caches (32 KB L1 I/D, 256 KB L2).
• Memory  DDR3L memory controller supporting 16-bit DDR3L devices; ECC-protected caches for system reliability.
• Storage & Host Interfaces  Integrated SATA 3.0 (6 Gbps) port for high-speed storage, plus QuadSPI and SD/MMC support as described in product documentation.
• Networking & High-speed I/O  Dual Gigabit Ethernet ports and a three-lane, 6 GHz multi-protocol SerDes supporting high-speed interfaces; DMA-controlled PCIe Gen2 port capability.
• USB  Dual USB controllers: one SuperSpeed USB 3.0 controller with integrated PHY and one USB 2.0 controller.
• Hardware Acceleration & Packet Forwarding  On-chip packet forwarding engine (PFE) that offloads IP packet processing and is documented to support 2 Gbit/s IP forwarding with minimal CPU load.
• Security  Secure Boot and Arm TrustZone® support for platform trust and secure system boot.
• Package & Mounting  211-FCLGA supplier device package (9.6 × 9.6 mm); 211-VFLGA package case; surface-mount device.
• Operating Range & Compliance  Operating temperature 0 °C to 105 °C; RoHS compliant; consumer qualification.

Typical Applications

• Trust-enabled IoT Gateways  Secure boot and TrustZone support enable protected device provisioning and secure edge connectivity.
• Consumer & Mobile NAS  Integrated SATA 6 Gbps and low-power operation suit compact NAS and battery-powered mobile NAS designs.
• Entry-level Broadband Ethernet Gateways  Dual Gigabit Ethernet and hardware packet forwarding provide efficient network throughput for home and small-office gateways.
• Building and Factory Automation  Compact package, integrated I/O and robust software enable controllers for automation and monitoring systems.

Unique Advantages

• Low typical power profile: The device is documented as a 1 W typical power communications processor, enabling fanless and compact system designs.
• Integrated packet acceleration: Hardware PFE offloads IP packet processing and supports documented 2 Gbit/s forwarding performance with minimal CPU load.
• Compact high-density package: 211-FCLGA (9.6 × 9.6 mm) surface-mount package reduces PCB footprint for space-constrained products.
• Secure platform features: Secure Boot and Arm TrustZone® provide a foundation for building trusted and secure embedded systems.
• Rich I/O integration: Dual GbE, SATA 6 Gbps, USB 3.0 with integrated PHY, USB 2.0, PCIe Gen2 capability and multi-protocol SerDes reduce BOM and simplify board design.
• Developer and ecosystem support: Product documentation references evaluation platforms and software enablement (Linux BSP, development tools and evaluation kits) to accelerate prototyping.

Why Choose LS1012ASE7HKA?

The LS1012ASE7HKA positions itself as a compact, low-power ARM Cortex-A53-based solution that combines essential networking, storage and security features in a small-footprint package. Its hardware packet acceleration, integrated high-speed interfaces and secure boot features make it well suited to designers building consumer NAS, IoT gateways, entry-level Ethernet gateways and compact automation controllers.

With surface-mount packaging, RoHS compliance and documented ecosystem enablement, the LS1012ASE7HKA offers a practical balance of performance, integration and long-term supply considerations for embedded system designers and procurement teams focused on consumer-grade communications and storage applications.

Request a quote or submit an inquiry for pricing and availability to begin evaluating LS1012ASE7HKA for your next embedded networking or storage design.
