LS1012ASE7KKB

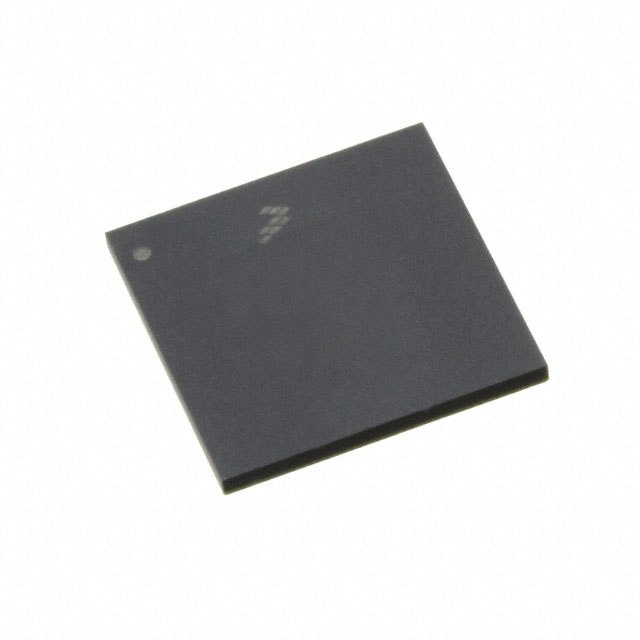

The LS1012ASE7KKB is an NXP QorIQ Layerscape microprocessor integrating a single 64‑bit ARM® Cortex®‑A53 core running at up to 1.0 GHz in a compact 211‑FCLGA (9.6 × 9.6 mm) package. It targets fanless, small form‑factor networking and embedded storage applications with a focus on low typical power consumption and integrated packet and security acceleration.

Typical use cases include trust‑enabled IoT gateways, consumer and mobile NAS, entry‑level broadband gateways and industrial automation where integration, packet performance and secure boot capabilities are important design factors.

Key Features

• Core Single ARM® Cortex®‑A53 64‑bit core running up to 1.0 GHz with NEON SIMD and dual‑precision FPU; ECC‑protected L1 and L2 caches (32 KB L1 I/D, 256 KB L2).
• Memory Integrated memory controller supporting 16‑bit DDR3L at 1 GHz for low‑power system memory designs.
• Networking and High‑Speed I/O Two Gigabit Ethernet ports, a three‑lane 6 GHz multi‑protocol SerDes for high‑speed interfaces, DMA‑controlled PCIe Gen2, one SATA 3.0 (6 Gbps) port, SuperSpeed USB 3.0 with integrated PHY and an additional USB 2.0 controller; also supports QuadSPI and SD/MMC.
• Packet Acceleration Hardware Packet Forwarding Engine (PFE) offloads IP packet processing from the CPU and can achieve 2 Gbit/s IP forwarding with minimal CPU load.
• Security and Boot Secure Boot and QorIQ Trust architecture including ARM TrustZone® support to establish a hardware root‑of‑trust for secure device operation.
• Power and Package Designed for low typical power (approximately 1 W) in a compact 211‑FCLGA (9.6 × 9.6 mm) surface‑mount package; operating temperature range 0 °C to 105 °C.
• Development and Ecosystem Series support includes evaluation boards, a Linux BSP with optimized drivers and development tool evaluation options, plus third‑party board and module partners for faster prototyping and deployment.

Typical Applications

• Trust‑enabled IoT Gateways — Provides secure boot and TrustZone support with integrated packet handling for gateway devices that require a verified platform and efficient network throughput.
• Consumer and Mobile NAS — Single‑core 64‑bit processing, SATA 3.0 and low typical power make it suitable for compact and battery‑powered personal storage solutions.
• Entry‑level Broadband Ethernet Gateways — Dual GbE ports combined with the hardware PFE enable efficient packet forwarding and offload for home and small office routers.
• Ethernet Drives and Storage Appliances — SATA 6 Gbps plus PCIe connectivity and integrated CPU acceleration support networked storage and drive controller designs.
• Building and Factory Automation — Compact package, integrated I/O and secure boot support embedded controllers and edge devices in industrial automation environments.

Unique Advantages

• Highly integrated communications processor: Single‑chip combination of CPU, DDR3L memory controller, GbE, SATA, USB and PCIe reduces board complexity and BOM.
• Low typical power consumption: Approximately 1 W typical power enables fanless, small‑form‑factor and battery‑operated designs.
• Hardware packet acceleration: On‑chip Packet Forwarding Engine (PFE) offloads IP forwarding to deliver up to 2 Gbit/s throughput with minimal CPU intervention.
• Built‑in platform security: Secure Boot and QorIQ Trust architecture with TrustZone support simplify implementation of a hardware root‑of‑trust.
• Compact surface‑mount package: 211‑FCLGA 9.6 × 9.6 mm footprint helps reduce board area for space‑constrained products.
• Development ecosystem and longevity: Evaluation boards, a Linux BSP, development tool licensing and product longevity support accelerate prototyping and help preserve long‑term supply.

Why Choose LS1012ASE7KKB?

The LS1012ASE7KKB combines a 64‑bit ARM® Cortex®‑A53 core with targeted communications accelerators and integrated high‑speed I/O in a compact, low‑power package. Its mix of DDR3L memory support, dual GbE, SATA 3.0, USB 3.0 with PHY and a hardware packet forwarding engine make it well suited for embedded networking and storage applications that require secure boot, efficient packet handling and small form factor designs.

Supported by evaluation hardware, a Linux BSP and an established ecosystem, the LS1012ASE7KKB is positioned for engineers and product teams seeking a scalable, supported platform with a clear development path and long‑term availability for IoT gateways, NAS devices and entry‑level network appliances.

Request a quote or submit a purchase inquiry to begin integrating the LS1012ASE7KKB into your next design and obtain pricing, availability and lead‑time information.
