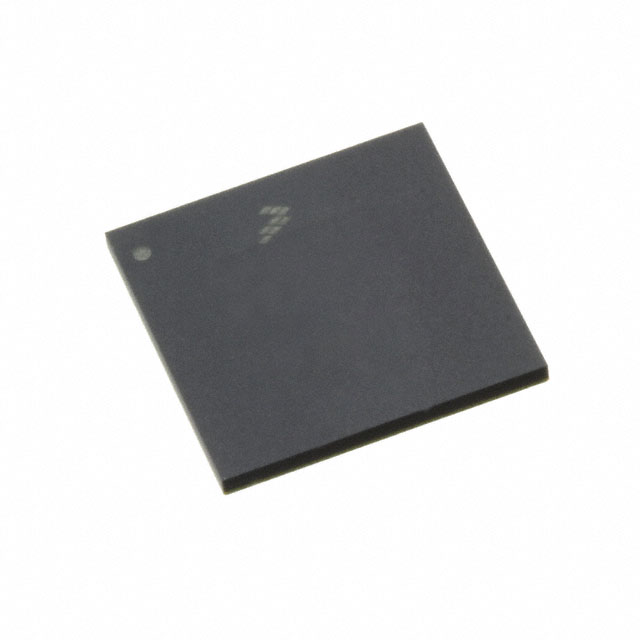

LS1012AXE7EKB

The LS1012AXE7EKB is a QorIQ Layerscape microprocessor IC featuring a single 64-bit ARM® Cortex®-A53 core clocked at 600 MHz. Designed for industrial embedded networking and storage applications, it combines a compact 211-FCLGA package with integrated interfaces and security to support fanless, small-form-factor designs.

As a member of the LS1012A family, the device emphasizes efficient packet processing, integrated connectivity, and trust-enabled security features to serve IoT gateways, NAS, and entry-level networking appliances.

Key Features

• Core  Single ARM® Cortex®-A53 64-bit core running at 600 MHz with ECC-protected caches for reliable compute in embedded applications.
• Memory  DDR3L memory controller support (16-bit DDR3L devices at 1 GHz supported by the LS1012A series) to enable standard embedded memory configurations.
• Storage and High-Speed I/O  Integrated SATA 6 Gbps port for high-throughput storage, plus dual USB controllers including one SuperSpeed USB 3.0 with integrated PHY and one USB 2.0 controller.
• Networking  Dual Gigabit Ethernet ports and a three-lane, 6 GHz multi-protocol SerDes (series capability) supporting high-speed interfaces and a DMA-controlled PCIe Gen2 port.
• Packet Acceleration  Hardware packet forwarding engine (PFE) offloads IP packet processing from the CPU; the LS1012A series PFE is capable of 2 Gbit/s IP forwarding with minimal CPU load.
• Security  Secure Boot and ARM TrustZone® support for trust-enabled device architectures and protected boot chains.
• Reliability & Qualification  Industrial qualification with RoHS compliance and an operating temperature range of −40 °C to 105 °C for demanding environments.
• Package & Mounting  211-FCLGA package (9.6 × 9.6 mm), surface-mount, suitable for compact, fanless system designs.

Typical Applications

• Trust-enabled IoT Gateways  Secure, compact gateway designs that require hardware trust architecture and secure boot.
• Consumer and Mobile NAS  Network-attached storage devices, including battery-powered mobile NAS, leveraging SATA 6 Gbps and USB 3.0 connectivity.
• Entry-level Broadband Ethernet Gateways  Small form-factor residential or SOHO gateway appliances using dual GbE and packet acceleration.
• Ethernet Drives and Data Storage  Ethernet-attached storage and drive enclosures that benefit from integrated storage interfaces and hardware offload.
• Building and Factory Automation  Industrial control nodes and automation gateways requiring industrial temperature range and reliable connectivity.

Unique Advantages

• Compact, low-power integration: A small 211-FCLGA (9.6 × 9.6 mm) package with features optimized for fanless, small-form-factor designs.
• Hardware packet offload: The on-chip packet forwarding engine reduces CPU load and enables up to 2 Gbit/s IP forwarding performance for networked applications.
• Integrated high-speed storage and USB: Native SATA 6 Gbps plus USB 3.0 with integrated PHY simplify storage and peripheral connectivity.
• Platform security: Secure Boot and ARM TrustZone® provide foundational hardware security for embedded systems and IoT devices.
• Industrial readiness: RoHS-compliant device with an operating range from −40 °C to 105 °C and industrial qualification for harsh environments.
• Developer enablement (series level): The LS1012A family is supported by evaluation platforms and software BSPs to accelerate prototyping and bring-up.

Why Choose LS1012AXE7EKB?

The LS1012AXE7EKB positions itself as a compact, industrial-grade microprocessor that balances compute, security, and I/O integration for embedded networking and storage designs. With a 64-bit Cortex‑A53 core, hardware packet acceleration, and native interfaces such as SATA 6 Gbps and USB 3.0 with PHY, it reduces system complexity while addressing performance and power targets in small packages.

This part is well suited for engineers developing fanless gateways, NAS solutions, and industrial automation appliances who need platform-level security, reliable industrial operation, and a clear upgrade path within the LS1012A family and its ecosystem.
