LS1024ASN7ELA

The LS1024ASN7ELA is an NXP QorIQ Layerscape microprocessor featuring a dual ARM® Cortex®-A9 core complex clocked to 1.2 GHz. It is designed for embedded communications and networking products that require integrated high-speed I/O, hardware security, and scalable processing performance.

With DDR3 memory support, multiple Gigabit Ethernet interfaces, SATA and USB connectivity, plus Secure Boot and TrustZone® security features, the device targets applications such as gateways, network storage, and security appliances where performance, integration and ecosystem support matter.

Key Features

• Core — Dual ARM® Cortex®-A9 32-bit processors delivering up to 1.2 GHz per core; series documentation cites performance scaling up to 6000 DMIPS for the dual-core LS1024A family.
• Memory & Storage — Integrated DDR3 memory controller and two SATA 3 Gbps (SATA-2) interfaces, with support for integrated RAID controller functionality described for the LS1024A family.
• Ethernet & Networking — Three Gigabit Ethernet (GbE) interfaces and packet acceleration logic, including deep packet inspection and high-rate packet content screening described in the product family documentation.
• USB — USB 2.0 with PHY (1) and USB 3.0 with PHY, providing flexible host and device connectivity options.
• Security — Secure Boot and ARM® TrustZone® support; hardware security encryption engines for protocols such as IPsec and SSL are included in the family-level feature set.
• Integration & Performance — Multilayer bus architecture enabling concurrent non‑blocking transactions across data interfaces, plus accelerators for packet handling and offload.

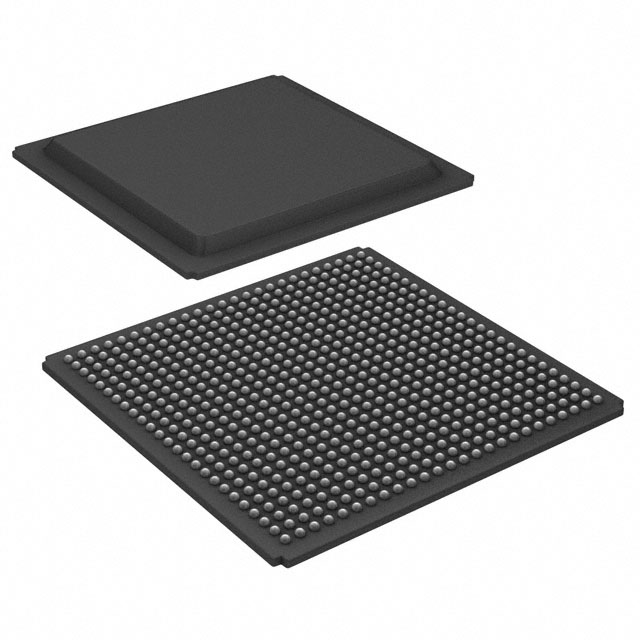

• Package & Thermal — 625-FCPBGA supplier device package (21 × 21 mm) in a surface-mount form factor; operating temperature range 0 °C to 70 °C.
• Compliance — RoHS compliant.

Typical Applications

• High-end VoIP and video-enabled home gateways — Dual-core processing, hardware packet acceleration and multiple GbE ports enable gateway platforms with multimedia and networking requirements.
• SMB security appliances — Encryption acceleration, Secure Boot and TrustZone® support make the device suitable for firewall, VPN and intrusion detection appliances.
• Enterprise access points — Triple GbE interfaces and offload engines support Ethernet-powered 802.11n enterprise access-point designs.
• Consumer networked storage (NAS) — DDR3 memory support, SATA 3 Gbps ports and integrated RAID controller capability target networked storage products.
• Secure payment terminals — Platform-level security features and Secure Boot help address secure transaction and endpoint integrity requirements.

Unique Advantages

• Highly integrated connectivity: Triple GbE, dual SATA and USB 2.0/3.0 PHYs reduce external interface components and simplify board design.
• Hardware security acceleration: Secure Boot, TrustZone® and on-chip encryption engines provide measurable offload for IPsec/SSL workloads.
• Packet processing and offload: Packet acceleration logic, deep packet inspection and content screening reduce CPU loading for network-centric tasks.
• Scalable dual-core performance: ARM Cortex‑A9 dual-core operation up to 1.2 GHz provides headroom for multicore application workloads and protocol stacks.
• Rich software ecosystem: Family documentation references turnkey solutions and board support packages to help reduce development time and system integration effort.
• Production-ready package: 625‑FCPBGA (21 × 21 mm) surface-mount package and RoHS compliance align with standard manufacturing processes.

Why Choose LS1024ASN7ELA?

The LS1024ASN7ELA combines dual ARM® Cortex®‑A9 processing at up to 1.2 GHz with extensive I/O and hardware security features, positioning it for mid-to-high-end embedded networking and storage designs. Its integration of DDR3 memory support, multiple GbE ports, SATA interfaces and USB PHYs reduces system BOM and simplifies layout for devices that need local storage and robust networking.

Backed by the QorIQ LS1024A product family documentation and ecosystem, the device is suited to developers seeking scalable performance, integrated packet/offload capabilities and vendor-supported software enablement for quicker time to market.
