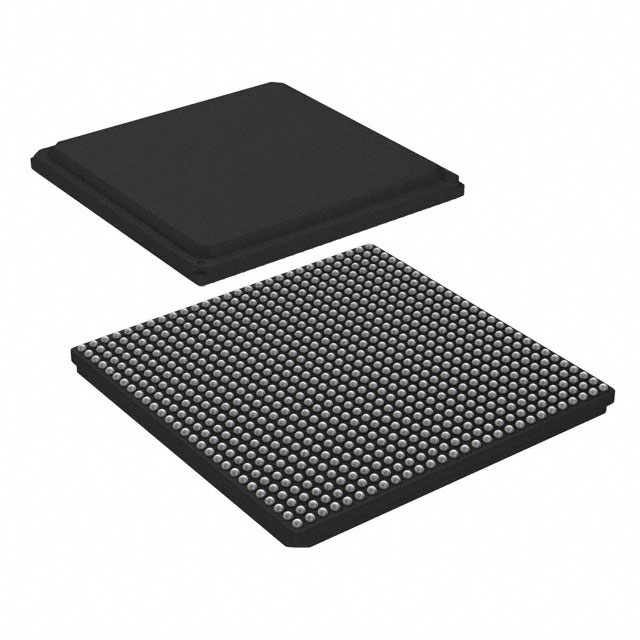

LS1026ASE8MQA

IC MPU QORIQ 1.2GHZ 780FCPBGA
Part Description

ARM® Cortex®-A72 Microprocessor IC QorIQ® Layerscape 2 Core, 64-Bit 1.2GHz 780-FCPBGA (23x23)

Quantity 128 Available (as of October 8, 2026)
Product CategoryMicroprocessors
Part SeriesLS1026A
ManufacturerNXP USA Inc.
Manufacturing StatusActive
Manufacturer Standard Lead Time18 Weeks
Datasheet

Specifications & Environmental

Core ProcessorARM® Cortex®-A72Device Package780-FCPBGA (23x23)ECCN5A002A1 NXP
Ethernet10GbE (2), 2.5GbE (1), 1GbE (4)HTS Code8542.31.0001Moisture Sensitivity Level3 (168 Hours)
Mounting MethodSurface MountMounting TypeSurface MountNumber of Cores/Bus Width2 Core, 64-Bit
Operating Temperature0°C ~ 105°CPackage / Case780-FBGA, FCBGARAM ControllersDDR4
REACH ComplianceREACH UnaffectedRoHS ComplianceROHS3 CompliantSATASATA 6Gbps (1)
Security FeaturesSecure Boot, TrustZone®Speed1.2GHzSupplier Device Package780-FCPBGA (23×23)
USBUSB 3.0 (3) + PHY

Overview of LS1026ASE8MQA – IC MPU QORIQ 1.2GHZ 780FCPBGA

The LS1026ASE8MQA is a Layerscape QorIQ microprocessor featuring dual ARM® Cortex®-A72 64‑bit cores running at 1.2 GHz. It integrates packet-processing acceleration and a broad set of high-speed interfaces to address embedded networking, storage, security and industrial applications.

Designed for systems that require balanced CPU performance, rich connectivity and on-chip security, this device targets enterprise and service-provider platforms, network attached storage, security appliances and single-board computer designs that benefit from integrated peripherals and software/hardware compatibility across the Layerscape family.

Key Features

  • Core & Performance — Dual ARM® Cortex®-A72 64‑bit cores at 1.2 GHz providing multi-threaded processing for embedded workloads.
  • Memory — DDR4 memory controller support for modern system memory performance.
  • Networking Interfaces — Integrated Ethernet: two 10GbE, one 2.5GbE and four 1GbE ports for high-throughput and flexible network connectivity.
  • Storage & USB — SATA 6Gbps (SATA 3.0) interface and three USB 3.0 ports with PHY for high-speed storage and peripheral connectivity.
  • High-speed I/O — PCIe® Gen3 controllers and other high-speed peripherals as described in the Layerscape family documentation.
  • Security & Acceleration — Secure Boot and ARM TrustZone® support combined with integrated security acceleration for cryptographic and packet security operations.
  • Package & Mounting — 780‑FCPBGA (23 × 23 mm) package, surface-mount mounting style suitable for compact embedded boards.
  • Operating Range & Compliance — Operating temperature 0 °C to 105 °C and RoHS compliant; consumer qualification.

Typical Applications

  • Enterprise Routers and Switches — Use the LS1026A to deliver multi-gigabit forwarding and classification with integrated Ethernet ports and packet-processing acceleration.
  • Network Attached Storage (NAS) — Combine SATA 6Gbps and USB 3.0 connectivity with on-chip security to build storage appliances and appliances with secure access.
  • Security Appliances — Leverage secure boot, TrustZone and hardware security acceleration for high-performance VPN, firewall and DPI functions.
  • Service Provider Gateways & vCPE — Packed I/O and networking features support gateway and virtual CPE platforms requiring multi-rate Ethernet and PCIe connectivity.
  • Single Board Computers — Compact 23 × 23 mm package and a rich set of peripherals enable SBC designs for embedded applications.

Unique Advantages

  • Highly integrated connectivity: Multiple 10GbE/2.5GbE/1GbE ports, SATA and USB 3.0 reduce external bridging components and simplify board design.
  • Security-first architecture: Secure Boot and ARM TrustZone® together with on-chip security acceleration enable robust platform security and fast cryptographic processing.
  • Family scalability and compatibility: Part of the Layerscape family with pin-compatibility across select devices, enabling performance scaling while maintaining hardware and software reuse.
  • Compact board-level footprint: 780‑FCPBGA (23 × 23 mm) package supports dense, surface-mounted embedded designs.
  • Designed for embedded networking and storage: Packet-processing acceleration and high-speed peripherals focus compute cycles on application logic while offloading common data-plane tasks.

Why Choose LS1026ASE8MQA?

The LS1026ASE8MQA positions dual ARM® Cortex®-A72 processing with a comprehensive set of high-speed interfaces and on-chip security to meet embedded networking, storage and appliance requirements. Its 1.2 GHz cores, DDR4 support, multi-rate Ethernet and storage/USB connectivity deliver a balanced platform for performance-oriented embedded designs.

For engineers and system designers seeking a compact, RoHS‑compliant processor that supports family-level hardware and software compatibility, the LS1026ASE8MQA offers a practical path to scale performance while leveraging existing design investments in the Layerscape ecosystem.

Request a quote or submit an inquiry to get pricing and availability for LS1026ASE8MQA for your next embedded networking or storage design.
