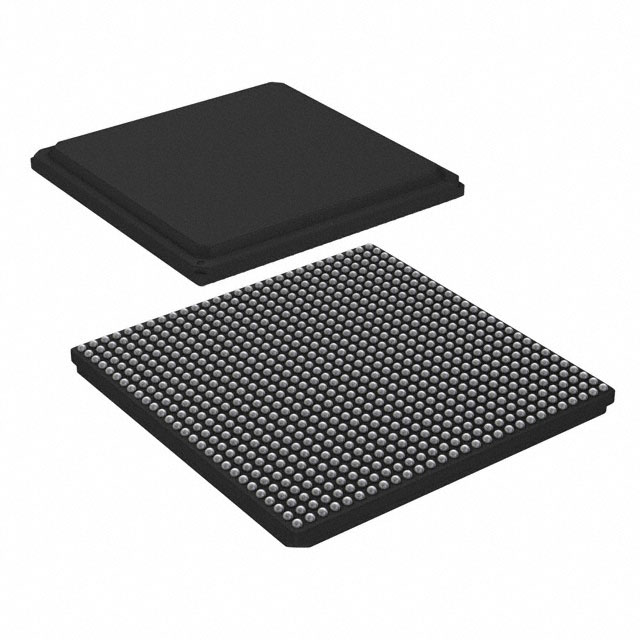

LS1026ASN8Q1A
| Part Description |
ARM® Cortex®-A72 Microprocessor IC QorIQ® Layerscape 2 Core, 64-Bit 1.6GHz 780-FCPBGA (23x23) |
|---|---|
| Quantity | 839 Available (as of October 8, 2026) |
| Product Category | Microprocessors |
|---|---|
| Part Series | LS1026A |
| Manufacturer | NXP USA Inc. |
| Manufacturing Status | Active |
| Manufacturer Standard Lead Time | 18 Weeks |
| Datasheet |
Specifications & Environmental
| Core Processor | ARM® Cortex®-A72 | Device Package | 780-FCPBGA (23x23) | ECCN | 5A002A1 NXP | ||
|---|---|---|---|---|---|---|---|
| Ethernet | 10GbE (2), 2.5GbE (1), 1GbE (4) | HTS Code | 8542.31.0001 | Moisture Sensitivity Level | 3 (168 Hours) | ||
| Mounting Method | Surface Mount | Mounting Type | Surface Mount | Number of Cores/Bus Width | 2 Core, 64-Bit | ||
| Operating Temperature | 0°C ~ 105°C | Package / Case | 780-FBGA, FCBGA | RAM Controllers | DDR4 | ||
| REACH Compliance | REACH Unaffected | RoHS Compliance | ROHS3 Compliant | SATA | SATA 6Gbps (1) | ||
| Security Features | Secure Boot, TrustZone® | Speed | 1.6GHz | Supplier Device Package | 780-FCPBGA (23×23) | ||
| USB | USB 3.0 (3) + PHY |
Overview of LS1026ASN8Q1A – IC MPU QORIQ 1.6GHZ 780FCPBGA
The NXP LS1026ASN8Q1A is a QorIQ Layerscape microprocessor based on dual ARM® Cortex®-A72 cores running at 1.6 GHz. It targets embedded designs that demand high CPU performance together with integrated packet-processing and a broad set of high-speed I/O.
Designed for networking, storage, security and industrial applications, the device combines a 64-bit dual-core Cortex-A72 architecture with DDR4 memory support and multi-rate Ethernet connectivity to simplify system integration and accelerate time-to-market.
Key Features
- Core Dual ARM® Cortex®-A72 cores at 1.6 GHz providing 64-bit processing for compute-intensive embedded workloads.
- Memory DDR4 memory controller support for modern high-bandwidth system memory.
- Networking Integrated multi-rate Ethernet: two 10 GbE ports, one 2.5 GbE port and four 1 GbE ports to support diverse networking topologies and throughput requirements.
- Storage & USB SATA 3.0 (6 Gbps) interface plus three USB 3.0 controllers with PHY to enable high-speed storage and peripheral connectivity.
- Security Secure Boot and ARM TrustZone® support for platform integrity and trusted execution.
- Peripherals & Acceleration Integrated packet processing acceleration and high-speed peripherals (PCIe Gen3 referenced in series materials) to offload networking tasks and streamline data paths.
- Package & Mounting 780-FCPBGA (23 × 23 mm) surface-mount package suitable for compact embedded board designs.
- Operating Range & Qualification Consumer qualification with an operating temperature range of 0 °C to 105 °C and RoHS-compliant material status.
Typical Applications
- Enterprise & Service Provider Networking Use in routers, switches and gateway controllers that require multi-gigabit Ethernet and packet processing acceleration.
- Network Attached Storage (NAS) Host high-throughput storage and RAID-accelerated workflows using SATA 3.0 and integrated security features.
- Security Appliances Deploy in firewall, VPN and encryption appliances leveraging Secure Boot, TrustZone and integrated security acceleration.
- Virtual CPE and Edge Compute Suitable for virtual customer premise equipment and edge platforms that need balanced CPU performance and high-speed I/O.
Unique Advantages
- Balanced dual-core 64-bit performance: 1.6 GHz ARM Cortex-A72 cores provide strong general-purpose processing for embedded and networking tasks.
- Broad high-speed I/O integration: Multiple 10 GbE/2.5 GbE/1 GbE ports, SATA 6 Gbps and USB 3.0 reduce external controller requirements and simplify BOM.
- On-chip security features: Secure Boot and TrustZone enable platform trust and secure firmware workflows without relying solely on external components.
- Compact BGA package: 780-FCPBGA (23×23 mm) supports dense board layouts for compact systems and single-board computer designs.
- Designed for embedded use: DDR4 memory support and packet-processing acceleration help deliver predictable throughput for networking and storage applications.
Why Choose LS1026ASN8Q1A?
The LS1026ASN8Q1A positions itself as a high-performance, highly integrated microprocessor for embedded networking, storage and security applications. Its dual ARM Cortex-A72 cores, DDR4 memory interface and extensive high-speed I/O provide a cohesive platform to implement multi-gigabit networking, high-throughput storage and secure edge compute functions while reducing external component count.
This device is suited for system designers and OEMs developing enterprise and industrial embedded products that require a balance of compute performance, integrated connectivity and platform security, while benefiting from NXP’s QorIQ Layerscape architecture and ecosystem.
Request a quote or submit a pricing inquiry to evaluate LS1026ASN8Q1A for your next embedded networking or storage design.
