LS1028AXN7NQA

The LS1028AXN7NQA is an NXP Layerscape microprocessor featuring two ARM® Cortex®‑A72 cores running at 1.3 GHz in a 448‑FBGA (17×17) package. Designed and qualified for industrial operation, it targets embedded applications that require multi‑core processing, industrial networking, and long product longevity.

With integrated memory controllers for DDR3L and DDR4, multiple high‑speed Ethernet interfaces, SATA support, and CANbus connectivity, the LS1028AXN7NQA is suited for factory automation, networking gateways, IoT gateways, industrial PCs and similar industrial embedded systems.

Key Features

• Core and Performance  Dual ARM® Cortex®‑A72 64‑bit cores at 1.3 GHz provide dependable application processing for embedded and industrial workloads.
• Memory Interfaces  Integrated controllers for DDR3L SDRAM and DDR4 SDRAM enable flexible memory configurations for system design.
• Ethernet and TSN‑Ready Networking  Multiple Ethernet interfaces (1 × 1 Gbps and 5 × 2.5 Gbps) support high‑bandwidth industrial networking; the Layerscape family includes TSN capabilities for converged IT/OT deployments.
• Storage and I/O  SATA 6 Gbps support plus CANbus connectivity provide options for storage and deterministic fieldbus integration.
• Security and Trust  Family features include Trust Architecture and a Security Engine for secure boot, key storage and cryptographic acceleration to support encrypted communications and storage.
• Graphics and Display  The family integrates a 3D GPU with DisplayPort / embedded DisplayPort support for display and HMI use cases.

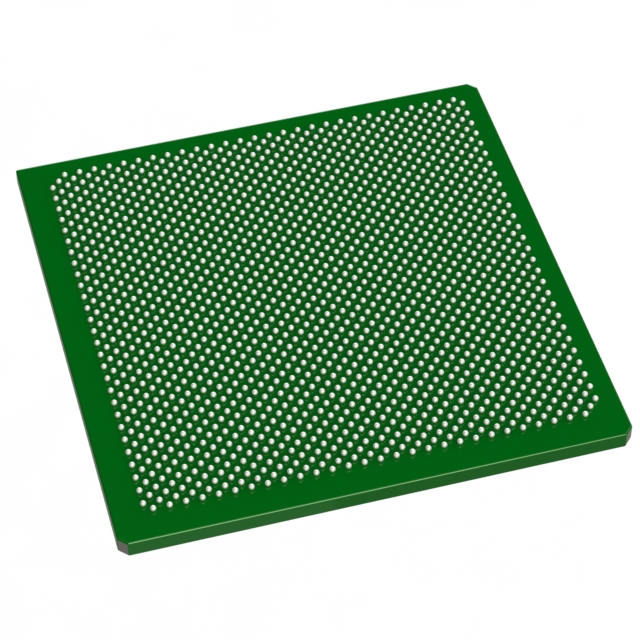

• Package and Mounting  448‑FBGA (17×17) surface‑mount package suitable for space‑constrained board designs.
• Industrial Qualification and Temperature Range  Industrial qualification with an operating junction temperature range of −40 °C to 105 °C for robust operation in demanding environments.
• RoHS Compliant  Device is RoHS compliant, supporting regulated environmental requirements.

Typical Applications

• Control and Factory Automation  Robotics controllers, I/O modules and motion controllers that require multi‑core processing and industrial networking.
• IoT and Networking Gateways  Gateways that bridge field devices and enterprise systems, leveraging multiple Ethernet ports and TSN support.
• Industrial PCs and PLCs  Embedded controllers and industrial PCs where long‑term availability and extended temperature operation are required.
• Transportation and HMI  Gateways and human‑machine interfaces for mass transit and rail applications benefiting from certified industrial operation and display support.

Unique Advantages

• Highly integrated industrial SoC: Combines dual Cortex‑A72 cores, memory controllers, multi‑port Ethernet, SATA and CANbus in a single package to reduce BOM and board complexity.
• Designed for converged IT/OT networking: TSN‑capable Layerscape architecture and multiple 1G/2.5G Ethernet interfaces enable deterministic and high‑bandwidth network topologies.
• Security features built in: Trust Architecture and a Security Engine provide hardware support for secure boot, key storage and cryptographic acceleration.
• Industrial temperature qualification: Rated for −40 °C to 105 °C operation to meet the thermal demands of continuous industrial deployments.
• Long product longevity: Part of an NXP family with a multi‑year production commitment, supporting long lifecycle requirements for industrial designs.

Why Choose LS1028AXN7NQA?

The LS1028AXN7NQA positions itself as a compact, industrially qualified Layerscape processor that combines dual‑core ARM® Cortex®‑A72 performance with extensive networking, storage and security features. It is ideal for engineers building industrial gateways, automation controllers, industrial PCs and HMI systems that require sustained operation in harsh environments.

With integrated DDR3L/DDR4 support, multiple Ethernet interfaces, SATA and CANbus, plus industry‑oriented security and longevity commitments, this device offers a balanced platform for scalable, reliable industrial embedded designs.
