LS1027AXN7HNA

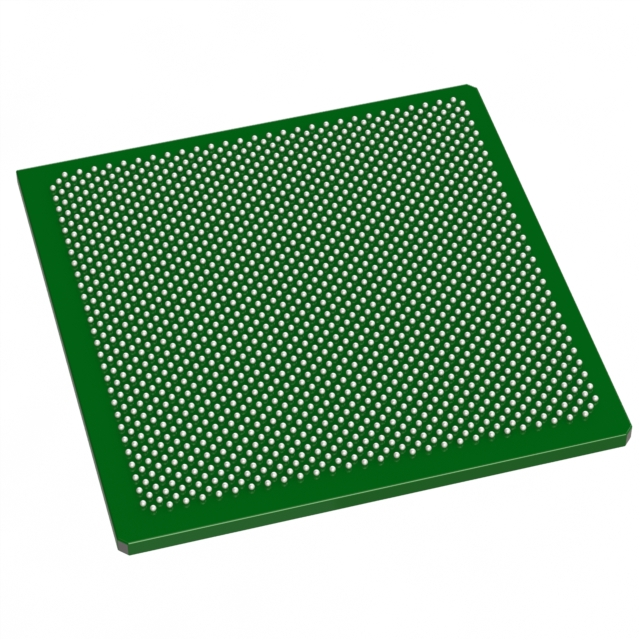

The LS1027AXN7HNA is an NXP Semiconductors QorIQ Layerscape microprocessor featuring dual ARM® Cortex®‑A72 cores running at 800 MHz in a 448‑FBGA (17×17) package. Built and qualified for industrial operation, it combines 64‑bit processing with multiple high‑speed interfaces to address embedded and industrial applications.

Typical use cases include industrial control and automation, networking and gateway devices, and other embedded systems that require sustained operation in extended temperature environments.

Key Features

• Core Dual ARM® Cortex®‑A72 cores, 64‑bit architecture at 800 MHz for multi‑threaded embedded workloads.
• Memory Controllers Integrated controllers supporting DDR3L SDRAM and DDR4 SDRAM for flexible memory subsystem design.
• Ethernet Multiple high‑speed Ethernet interfaces: one 1 Gbps port and five 2.5 Gbps ports to support modern industrial and networking topologies.
• SATA Single SATA 6 Gbps interface for local storage and disk connectivity.
• Additional Interfaces CANbus support for vehicle and industrial control network integration.
• Package & Mounting 448‑FBGA (17×17) supplier device package, surface mount for board‑level integration.
• Industrial Qualification & Temperature Industrial qualification with operating temperature range from ‑40 °C to 105 °C for reliable deployment in harsh environments.
• Environmental Compliance RoHS compliant.

Typical Applications

• Control and Factory Automation — Suitable for robotics controllers, I/O modules, and motion control applications that need deterministic processing and robust interfaces.
• IoT and Networking Gateways — Provides multiple Ethernet ports and storage connectivity for protocol bridging, data aggregation, and edge processing.
• Programmable Logic Controllers (PLCs) and Industrial PCs — Industrial qualification and extended temperature range make it appropriate for embedded compute in industrial systems.
• Transportation and Embedded Controllers — CANbus and industrial‑grade operation support gateway and controller roles in transportation and mass‑transit environments.

Unique Advantages

• Balanced compute and I/O mix: Dual Cortex‑A72 cores at 800 MHz combined with multiple Ethernet and SATA interfaces support both control and data throughput requirements without extraneous components.
• Memory flexibility: Support for DDR3L and DDR4 controllers enables designers to choose memory options that match performance and power targets.
• Industrial readiness: Qualification for industrial operation and a wide operating temperature range help reduce risk in long‑life embedded deployments.
• Compact, surface‑mount package: The 448‑FBGA (17×17) package enables dense board layouts while maintaining high‑pin connectivity for peripheral interfaces.
• Standards‑based networking: Multiple 1 Gbps and 2.5 Gbps Ethernet ports provide the physical layer bandwidth required for modern industrial and gateway topologies.
• Regulatory and environmental compliance: RoHS compliance supports regulatory needs for many industrial and commercial products.

Why Choose LS1027AXN7HNA?

The LS1027AXN7HNA positions itself as a high‑capability embedded processor for industrial and networking applications requiring 64‑bit processing, flexible memory support, and a rich set of I/O. Its dual Cortex‑A72 cores, multiple Ethernet ports, SATA connectivity, and industrial qualification make it suitable for designs that must balance compute, connectivity, and environmental robustness.

Engineers and procurement teams building industrial controllers, gateways, PLCs, or embedded networking equipment will find the LS1027AXN7HNA provides a compact, manufacturable platform with the interfaces and operating range needed for long‑lived deployments.

Request a quote or submit an inquiry to get pricing and availability for the LS1027AXN7HNA and support for your design requirements.
