LS1027AXE7HNA

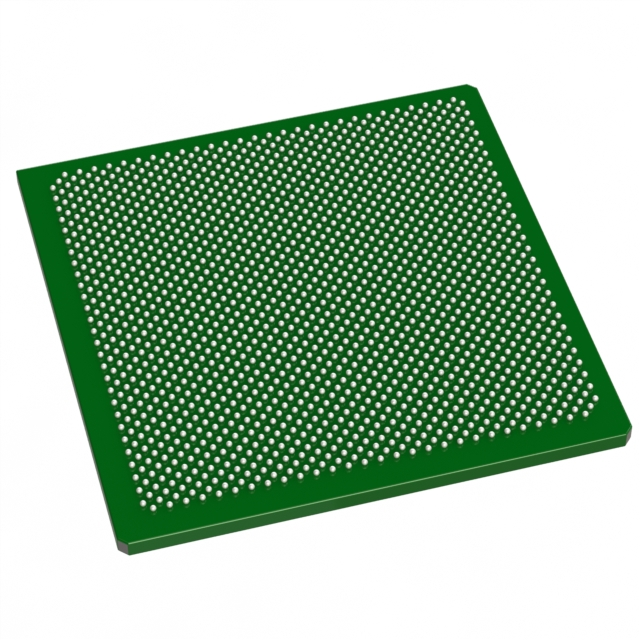

The LS1027AXE7HNA is a QorIQ Layerscape microprocessor IC featuring a dual-core ARM® Cortex®-A72 64-bit architecture running at 800 MHz in a 448-FBGA (17×17) package. It combines high-performance processing with a broad set of connectivity and memory interfaces targeted at embedded and industrial systems.

Engineered for industrial applications, the device offers DDR3L and DDR4 memory controller support, multi-rate Ethernet, SATA 6Gbps and CANbus interfaces, and industrial qualification with an operating range from −40 °C to 105 °C, making it suitable for demanding deployed systems.

Key Features

• Core & Architecture Dual ARM® Cortex®-A72 cores, 64-bit, operating at 800 MHz for multi-threaded embedded workloads.
• Memory Controllers Integrated controllers for DDR3L SDRAM and DDR4 SDRAM to support common embedded memory configurations.
• Ethernet & Networking Multiple Ethernet interfaces with one 1 Gbps port and five 2.5 Gbps ports for high-throughput wired networking.
• Storage Native SATA 6 Gbps interface for high-speed onboard or attached storage solutions.
• Additional Interfaces CANbus support for vehicle and industrial control networks and real-time device communication.
• Package & Mounting 448-FBGA (17×17) supplier device package, surface-mount mount type for compact board-level integration.
• Industrial Qualification & Temperature Range Qualified for industrial use with an operating temperature range of −40 °C to 105 °C for extended-environment deployments.
• Environmental Compliance RoHS compliant to support regulatory and manufacturing requirements.

Typical Applications

• Control and Factory Automation — Use as robotics controllers, I/O controllers or motion controllers that require real-time processing and robust connectivity.
• Transportation — Suitable for gateways, HMI systems and embedded controllers in mass transit and rail applications that demand industrial temperature operation.
• IoT and Networking Gateways — Acts as a processing and connectivity hub for IoT edge devices and networking gateway applications with multi-rate Ethernet and SATA support.
• Programmable Logic Controllers (PLCs) and Industrial PCs — Integrates processing, memory support and industrial interfaces for compact control and monitoring systems.

Unique Advantages

• High-performance dual-core processing: Two ARM Cortex-A72 cores at 800 MHz deliver balanced compute for control and gateway tasks.
• Flexible memory options: Support for DDR3L and DDR4 allows designers to choose memory densities and power/price trade-offs.
• Multi-rate Ethernet connectivity: One 1 Gbps port plus five 2.5 Gbps ports provide scalable networking bandwidth for industrial and edge applications.
• Integrated storage interface: SATA 6 Gbps enables local high-speed storage and data logging without external controller complexity.
• Designed for harsh environments: Industrial qualification and −40 °C to 105 °C operation help ensure reliability in extended-temperature deployments.
• Compact board-level footprint: 448-FBGA (17×17) package supports integration into space-constrained embedded designs.

Why Choose LS1027AXE7HNA?

The LS1027AXE7HNA positions itself as a versatile industrial embedded processor, pairing dual ARM Cortex-A72 cores with a broad set of memory and I/O interfaces. Its combination of multi-rate Ethernet ports, SATA 6 Gbps, CANbus and DDR3L/DDR4 support simplifies system architecture for gateways, automation controllers and industrial compute nodes.

With industrial qualification, a wide operating temperature range and RoHS compliance, this device is suited to long-life deployments in demanding environments where consistent performance and reliable connectivity are required.

If you would like pricing, availability, or technical sourcing information for LS1027AXE7HNA, request a quote or submit an inquiry to discuss integrating this processor into your next industrial design.
