MC68EN360AI25L

The MC68EN360AI25L is a CPU32+ microprocessor from the MC68 series by NXP Semiconductors. It integrates a single 32‑bit CPU core running at 25 MHz and is optimized for embedded controller and communications-focused applications.

Designed for systems requiring on‑chip communications engines and flexible bus/memory interfaces, this device delivers integration that simplifies board design while providing dedicated communications processing and serial channel support.

Key Features

• Core & Performance  CPU32+ core, single 32‑bit processor running at 25 MHz (documented 4.5 MIPS at 25 MHz).
• Memory & Bus  Up to 32‑bit data bus with dynamic bus sizing for 8/16 bits; boot chip select options for 8‑, 16‑, or 32‑bit memory and support for external SRAM/EPROM/Flash.
• Communications Processor Module (CPM)  On‑chip CPM (communications RISC controller) with support for 224 buffer descriptors and continuous mode transmission/reception to offload serial channel handling.
• Serial Interfaces  Four Serial Communications Controllers (SCCs) plus two Serial Management Controllers (SMCs) and one SPI — seven serial channels in total. SCC1 supports optional Ethernet/IEEE 802.3 at full 10 Mbps on the EN variant.
• DMA & Data Transfer  Two independent IDMAs with single address mode, buffer chaining, auto buffer modes and automatic packing for efficient 32‑bit transfers.
• Timers & Peripheral  Four general‑purpose timers (configurable as four 16‑bit or two 32‑bit timers) and a suite of peripheral functions for timing and control.
• System Integration & Debug  SIM60 system integration features including bus monitor, double bus fault monitor, software watchdog, clock synthesizer, breakpoint logic and IEEE 1149.1 Test Access Port.

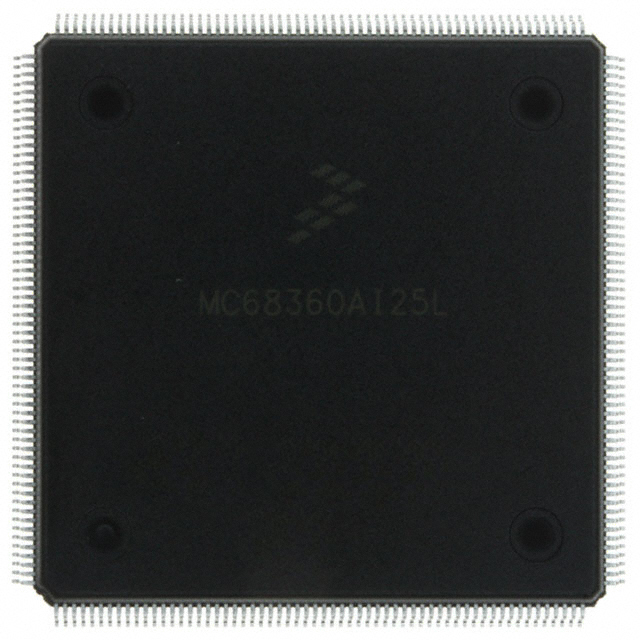

• Package & Electrical  240‑pin FQFP (32×32 mm) surface‑mount package, 5 V I/O supply.
• Operating Range & Compliance  Commercial temperature range 0 °C to 70 °C; RoHS compliant.

Typical Applications

• Embedded Communications Controllers  Use the integrated CPM and multiple serial channels to implement protocol handling and channel multiplexing in communications equipment.
• Network Interface Modules  Leverage SCC1’s optional 10 Mbps Ethernet support for low‑speed network endpoints and peripheral networked devices.
• Industrial and Controller Systems  Combine the CPU32+ core, DMA engines and flexible memory interface for control logic, I/O management and deterministic data movement.
• Peripheral Bridging and Offload  Employ the CPM and serial controllers to offload serial protocol processing from a host processor or to act as a stand‑alone communications co‑processor.

Unique Advantages

• Highly integrated communications engine: On‑chip CPM plus four SCCs, two SMCs and SPI reduce external controller and peripheral requirements for communications‑centric designs.
• Flexible memory and bus sizing: Dynamic bus sizing and boot chip select options support 8/16/32‑bit memory configurations for adaptable system architectures.
• Dedicated DMA support: Two IDMAs with buffer chaining and auto buffer modes enable efficient bulk transfers and lower CPU load for data‑intensive tasks.
• Built‑in system supervision: SIM60 features — watchdog, bus monitors, breakpoint logic and IEEE 1149.1 — help streamline debug and increase system reliability.
• Ethernet option on EN variant: Full 10 Mbps Ethernet support on SCC1 (available on this MC68EN360 variant) simplifies integration of network connectivity.
• Standard commercial operating range and RoHS compliance: Ready for commercial embedded deployments with a 0 °C to 70 °C range and RoHS compliance for regulatory alignment.

Why Choose MC68EN360AI25L?

MC68EN360AI25L provides a balanced combination of a CPU32+ 32‑bit core and a focused communications subsystem (CPM plus multiple serial controllers) that addresses embedded designs requiring onboard protocol handling and flexible memory interfaces. Its integrated DMA, timers and system integration module reduce external component count and streamline system architecture.

This device is well suited to engineers building communications equipment, networked peripherals or embedded controllers who need on‑chip communications processing, deterministic data movement and industry‑standard debug and test features, all in a 240‑pin FQFP surface‑mount package from NXP Semiconductors.

Request a quote or submit a quote to obtain pricing and availability for the MC68EN360AI25L for your next embedded communications or controller design.
