MC7457RX1000LC

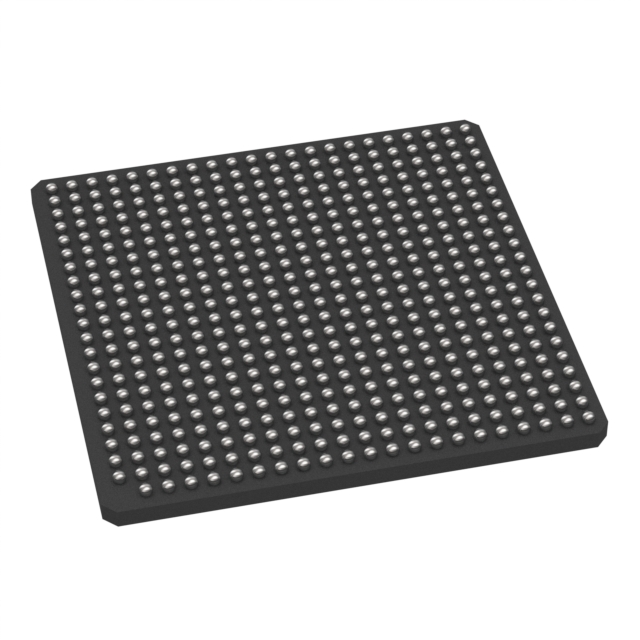

The MC7457RX1000LC is a PowerPC G4 32-bit microprocessor packaged in a 483-FCCBGA (29×29) surface-mount package and rated at 1.0 GHz. It combines a high-performance superscalar core with on-chip cache support and multimedia/SIMD acceleration for embedded networking and computing applications.

Designed for consumer-grade embedded systems, the device integrates a processor core with 512-Kbyte L2 cache and an L3 tag/controller to support a backside L3 cache via a dedicated high-bandwidth interface, enabling designers to scale external cache and private memory as required.

Key Features

• Core  PowerPC G4 single-core, 32-bit architecture running at 1.0 GHz for general-purpose embedded processing.
• Memory and Cache  On-chip 512-Kbyte L2 cache with an internal L3 tag and controller that supports a glueless backside L3 cache via a dedicated interface and external SRAM configurations.
• Floating Point & Multimedia  Built-in double-precision floating-point unit and a SIMD multimedia unit to accelerate numeric and media-processing workloads.
• Bus and System Interfaces  Supports MPX bus protocol and a subset of the 60x bus protocol for main memory and system resource interfacing as described in the MPC74xx hardware specification.
• Package & Mounting  483-FCCBGA (29×29) package, surface mount, suitable for compact embedded board designs.
• Operating Range & Qualification  Consumer-qualified device with an operating temperature range of 0 °C to 105 °C and RoHS compliance.
• System Design Notes  Footprint compatibility with MPC7455 applications when the core power supply is 1.3 V, enabling drop-in replacement scenarios where applicable.

Typical Applications

• Networking Equipment  Use as a protocol-processing and control processor in routing, switching, or network appliance designs that require a 1 GHz PowerPC G4 core and expandable backside cache.
• Embedded Computing Systems  Suitable for compact embedded servers or compute modules that benefit from on-chip L2 cache and an L3 cache interface for higher effective memory bandwidth.
• Multimedia and Signal Processing  SIMD multimedia support and double-precision floating-point acceleration make it appropriate for media-handling and DSP-adjacent tasks within consumer embedded products.
• Industrial/Appliance Controllers  Consumer-qualified embedded controllers that require a robust 1.0 GHz processor in a high-density BGA package and standard operating-temperature support.

Unique Advantages

• Highly integrated cache architecture: Combines 512-Kbyte L2 with an L3 tag/controller to enable external backside L3 cache, reducing external memory traffic and improving system performance.
• Balanced compute and media capabilities: The PowerPC G4 core plus double-precision FPU and SIMD multimedia unit delivers numeric and media processing without adding discrete accelerators.
• Compact, surface-mount package: 483-FCCBGA (29×29) package supports high-density board designs while providing the pinout and connectivity required for embedded systems.
• Design flexibility: Dedicated high-bandwidth L3 interface supports 1, 2, or 4 Mbytes of external SRAM configurations for scalable cache/private memory options.
• Standards-based system interfaces: Support for MPX and subset 60x bus protocols simplifies integration with legacy and contemporary system architectures described in the MPC74xx hardware specification.
• Regulatory and temperature support: RoHS compliance and a 0 °C to 105 °C operating range provide practical deployment parameters for consumer embedded products.

Why Choose MC7457RX1000LC?

The MC7457RX1000LC positions itself as a single-core PowerPC G4 solution that balances compute performance, on-chip cache, and multimedia acceleration for embedded networking and computing designs. Its integrated 512-Kbyte L2 cache and dedicated L3 controller give designers flexibility to scale external cache and private memory to match system performance targets.

Backed by documentation from the MPC74xx hardware specification and provided by NXP Semiconductors, this device is suited for engineers seeking a consumer-qualified, RoHS-compliant 1.0 GHz microprocessor in a compact 483-FCCBGA package for embedded applications where integration and predictable thermal/operating ranges are important.

Request a quote or submit a procurement inquiry to check pricing and availability for the MC7457RX1000LC and begin integrating this PowerPC G4 microprocessor into your embedded design.
