MC8640DHX1000HE

The MC8640DHX1000HE is a dual‑core PowerPC e600 microprocessor intended for embedded systems. It delivers a 1.0 GHz operating frequency with hardware features aimed at high‑throughput embedded networking and control applications.

Targeted at embedded and communications designs, the device integrates dual 32‑bit cores with on‑chip memory controller support and multiport Ethernet connectivity to simplify system architecture and accelerate time to market.

Key Features

• Processor Core Dual PowerPC e600 cores operating at 1 GHz to provide symmetric processing for control and data‑plane tasks.
• 32‑Bit, Multi‑Core Architecture Two 32‑bit cores for parallel processing and task separation in embedded applications.
• Memory Interfaces Integrated support for DDR and DDR2 memory controllers for system memory and buffering.
• High‑Speed Ethernet Four 10/100/1000 Mbps Ethernet interfaces for multi‑port networking and communications connectivity.

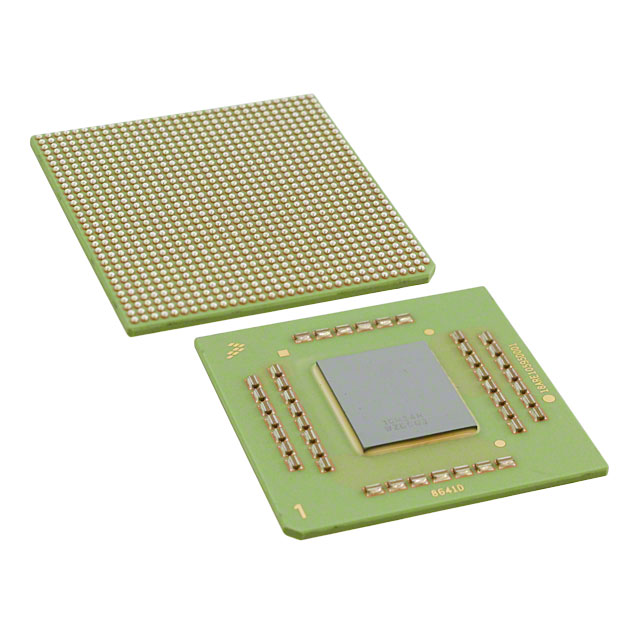

• Package & Mounting 1023‑FCCBGA (33×33) supplier device package, surface‑mount mounting type; supplied in tray packaging.
• Design‑Level JTAG Timing Reference Series datasheet documents JTAG AC timing details (for example, an input setup parameter t_JTDVKH minimum of 15 ns) to assist board bring‑up and boundary‑scan integration.
• Extended Junction Temperature (series reference) The MC8640 series documentation references an extended junction temperature range to –40 to 105 °C for addressed part numbers.

Typical Applications

• Embedded Networking Equipment — Multiport Gigabit Ethernet and dual cores make the device suitable for routers, switches, and gateways requiring integrated packet handling.
• Industrial Control — Dual cores and robust memory interface support deterministic control and supervisory tasks in industrial embedded systems.
• Communications Infrastructure — Use in telecom and infrastructure modules that require multiple high‑speed Ethernet interfaces and balanced processing.
• General Embedded Systems — Platforms that need 32‑bit PowerPC processing combined with DDR/DDR2 memory support and surface‑mount BGA packaging.

Unique Advantages

• Balanced Dual‑Core Performance: Two PowerPC e600 cores at 1 GHz provide parallel processing capability for control and data path separation.
• Integrated Memory Support: DDR and DDR2 controller support reduces external controller requirements and simplifies memory subsystem design.
• Multiport Gigabit Connectivity: Four 10/100/1000 Mbps Ethernet ports enable high‑throughput networking without additional bridging components.
• Compact BGA Package: The 1023‑FCCBGA (33×33) package supports high pin density in a surface‑mount form factor suited to space‑constrained boards.
• Design and Test Support: Documented JTAG AC timing parameters aid boundary‑scan integration and bring‑up workflows.
• Broad Operating Range (series): Series documentation references a junction temperature range down to –40 °C and up to 105 °C for applicable part numbers, supporting demanding thermal environments.

Why Choose MC8640DHX1000HE?

The MC8640DHX1000HE positions itself as a compact, dual‑core PowerPC e600 solution for embedded designs that require integrated memory controllers and multiple Gigabit Ethernet interfaces. Its 1 GHz clock rate and BGA footprint enable designers to implement high‑throughput networking and control functionality within a streamlined BOM.

Backed by NXP Semiconductors documentation for the MC8640 family, the device is a practical choice for engineers building embedded networking, industrial control, and communications platforms that need clear hardware specifications and board‑level test references.

Request a quote or submit a purchase inquiry to obtain pricing, lead time, and availability for the MC8640DHX1000HE.
