MC8640DTHX1067NE

The MC8640DTHX1067NE is a PowerPC e600-based microprocessor from NXP Semiconductors' MC8640 family. It provides dual 32-bit cores running at 1.067 GHz in a 1023-FCCBGA (33×33) package optimized for embedded and industrial applications.

Designed for embedded systems that require integrated memory and high-speed networking support, this device combines multi-core compute with DDR/DDR2 memory controllers and multiple Ethernet interfaces to support robust, networked designs across extended temperature ranges.

Key Features

• Core Dual PowerPC e600 cores, 32-bit architecture running at 1.067 GHz for parallel embedded processing.
• Memory Controllers Integrated DDR and DDR2 memory controller support to enable high-bandwidth system memory designs.
• Ethernet Connectivity Four 10/100/1000 Mbps Ethernet ports to support multi-port networked applications and high-throughput data exchange.

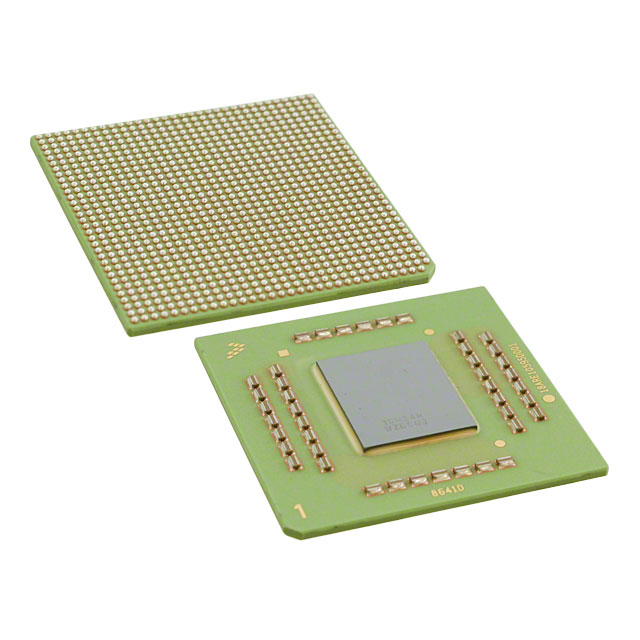

• Package & Mounting 1023-FCCBGA (33×33) package, surface mount, providing a high-density footprint for space-constrained boards.
• Industrial Temperature Range Qualified for operation from −40 °C to 105 °C, suitable for industrial environments.
• Development & Debug Series-level JTAG AC timing modification documented (tJTDVKH minimum = 15 ns) to support boundary-scan and debug workflows.
• Additional Interfaces Integrated DUART for serial communications and console access.
• RoHS Compliant Meets RoHS requirements for lead-free design and regulatory compliance.

Typical Applications

• Industrial Embedded Systems—Dual-core processing and industrial temperature qualification support control and monitoring applications that operate in harsh environments.
• Network Appliances—Four Gigabit Ethernet ports and high-speed memory interfaces enable routing, switching, and edge networking functions.
• Communications Equipment—Multi-core compute and DUART support control-plane processing and serial management interfaces in communication systems.

Unique Advantages

• Balanced Multi-Core Performance: Two 32-bit PowerPC e600 cores at 1.067 GHz deliver parallel processing capacity suited to embedded workloads.
• Integrated Networking: Four integrated 10/100/1000 Mbps Ethernet interfaces reduce external PHY and MAC requirements for networked products.
• Memory Flexibility: On-chip support for DDR and DDR2 memory controllers simplifies high-bandwidth memory subsystem design.
• Industrial Readiness: Specified operation from −40 °C to 105 °C provides thermal margin for industrial deployment.
• Compact, High‑Density Packaging: 1023-FCCBGA (33×33) package enables feature-rich board designs in compact footprints.
• Standards-Conscious Compliance: RoHS compliance supports regulatory requirements for many industrial and commercial products.

Why Choose MC8640DTHX1067NE?

The MC8640DTHX1067NE positions itself as a capable embedded MPU for industrial and networked designs that need dual-core PowerPC processing, integrated DDR/DDR2 memory support, and multi-port Gigabit Ethernet in a compact FCCBGA package. With industrial temperature qualification and RoHS compliance, it fits applications that require robust operation across wide environmental ranges.

Backed by NXP Semiconductors and supported by MC8640 family documentation, the device is suitable for design teams building scalable, network-enabled embedded systems where integration and thermal performance matter.

Request a quote or submit an inquiry to receive pricing, availability, and further product details for MC8640DTHX1067NE.
