MC8640DTVU1000HE

The MC8640DTVU1000HE is an NXP Semiconductors MCU-series microprocessor based on the PowerPC e600 core architecture. It provides two 32‑bit cores running at 1.0 GHz in a 1023‑FCCBGA (33×33) package targeted at embedded system designs.

Designed for embedded applications that require integrated memory interfaces and multi‑port networking, this device combines dual‑core processing with DDR/DDR2 memory controller support and multiple 10/100/1000 Mbps Ethernet interfaces to simplify system architecture and accelerate development.

Key Features

• Core and Performance PowerPC e600 architecture with 2 cores, 32‑bit operation and a rated speed of 1 GHz for parallel embedded processing tasks.
• Memory Controllers Integrated support for DDR and DDR2 memories to accommodate a range of system memory requirements.
• High‑Speed Ethernet Up to four 10/100/1000 Mbps Ethernet interfaces (4) for multi‑port networking and high throughput connectivity.

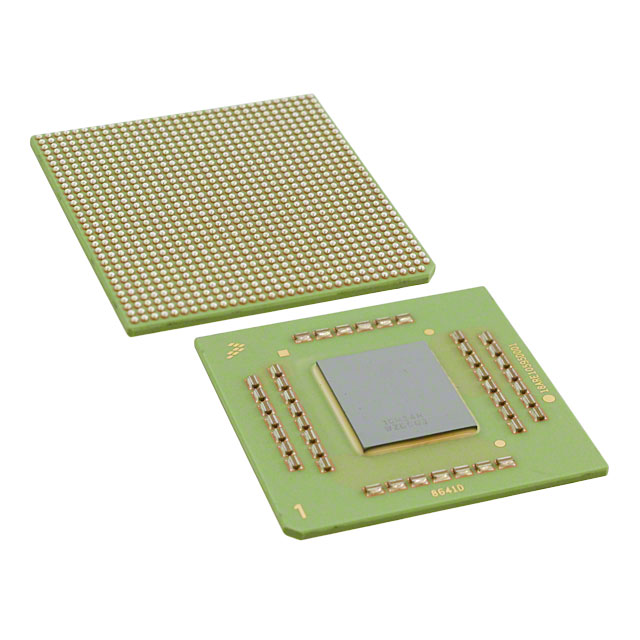

• Package and Mounting 1023‑FCCBGA (33×33) supplier device package; surface mount, supplied in tray format for board‑level assembly.
• Graphics No graphics acceleration—focused on compute and network I/O for embedded workloads.
• Debug and Timing (Datasheet Addendum) The MC8640 series addendum documents modified JTAG AC timing, including a noted input setup time minimum (tJTDVKH) of 15 ns, for addressed MC8640 part numbers.
• Thermal Range (Datasheet Addendum) The MC8640 series addendum references an extended junction temperature range of –40 to 105 °C for certain addressed MC8640 part numbers.
• Environmental RoHS status: not specified in the provided product data.

Typical Applications

• Embedded Networking and Communications — Multi‑port gigabit Ethernet interfaces support routers, switches, and network appliances requiring integrated MAC ports and processing.
• Industrial Control and Automation — Dual cores and DDR/DDR2 memory controller support enable responsive control tasks and real‑time data handling in embedded control systems.
• Telecommunications Infrastructure — Designed for embedded telecom elements where parallel processing and multiple high‑speed Ethernet ports are needed.
• Data Transport and Aggregation Appliances — Use the integrated networking and memory interfaces to build aggregation, monitoring, or gateway devices.

Unique Advantages

• Integrated Networking and Processing: Dual PowerPC e600 cores combined with up to four gigabit Ethernet interfaces reduce external component count for networked embedded systems.
• Flexible Memory Support: On‑chip DDR and DDR2 controller support permits designers to choose memory technology that fits cost and performance targets.
• Board‑Level Ready Package: 1023‑FCCBGA (33×33) surface‑mount package in tray format supports automated assembly and high‑density board designs.
• Focused Compute Platform: No graphics acceleration—resources are devoted to compute and I/O functions relevant to embedded networking and control.
• Documented Series Behavior: The MC8640 series documentation includes specific timing and thermal addenda for addressed part numbers to assist system validation and design.

Why Choose MC8640DTVU1000HE?

The MC8640DTVU1000HE positions itself as a performance‑oriented embedded processor that pairs dual PowerPC e600 cores at 1.0 GHz with integrated DDR/DDR2 memory controllers and multiple gigabit Ethernet interfaces. This combination addresses designs that need concurrent processing and robust network I/O while minimizing external controller requirements.

For engineering teams building embedded routers, gateways, industrial controllers, or telecom elements, this device offers a compact, surface‑mount platform with clear device documentation in the MC8640 series addendum to support system integration and validation.

If you would like pricing, availability or a formal quote for MC8640DTVU1000HE, submit an inquiry or request a quote and our team will respond with current information.
