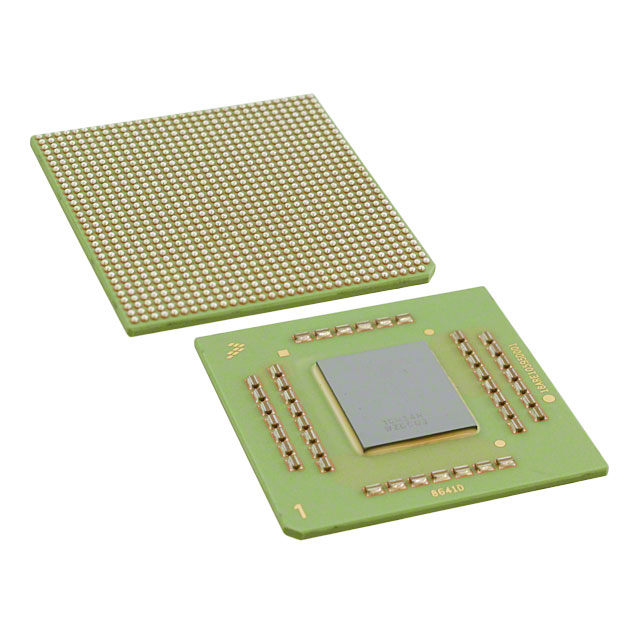

MC8640DTVU1067NE

The MC8640DTVU1067NE is a dual-core PowerPC e600 microprocessor in the MC8640 series by NXP Semiconductors, offering 1.067 GHz operating frequency in a 1023-FCCBGA (33×33) package. Designed for embedded applications that require multi-core processing and rich I/O integration, this device pairs PowerPC e600 cores with memory controller and high-speed Ethernet connectivity to address performance-focused embedded system designs.

Datasheet excerpts for the MC8640 family provide detailed electrical and operating guidance, including recommended core voltages and extended junction temperature ranges for series parts, enabling reliable deployment in demanding environments.

Key Features

• Dual-Core PowerPC e600  Dual 32-bit PowerPC e600 cores operating at 1.067 GHz deliver parallel processing capability for embedded workloads.
• Memory Interfaces  Integrated support for DDR and DDR2 memory controllers provides flexible system memory options.
• Quad Gigabit Ethernet  Four 10/100/1000 Mbps Ethernet interfaces enable high-throughput networking and multi-port connectivity.
• Package and Mounting  Supplied in a 1023-FCCBGA (33×33) surface-mount package and shipped in tray format for board-level assembly.
• Operating Frequency and Voltage  1.067 GHz core frequency; series datasheet indicates recommended VDD_Core values for 1067 MHz parts (documented for MC8640 series).
• Extended Temperature Capability (Series)  Datasheet for the MC8640 series documents an extended junction temperature range of −40 to 105 °C for series parts.
• Debug and Test  Series documentation notes JTAG AC timing specifications (for example, modified JTAG timing parameters are listed for MC8640 series parts).
• Graphics  No dedicated graphics acceleration is provided by this device.

Typical Applications

• Embedded Networking  Multi-port Gigabit Ethernet connectivity makes the part suitable for network appliances and communication systems requiring several high-speed interfaces.
• High-Performance Embedded Compute  Dual PowerPC e600 cores at 1.067 GHz fit compute-intensive embedded tasks where parallel processing improves throughput.
• Memory-Intensive Systems  DDR/DDR2 controller support accommodates designs that require flexible, high-performance memory architectures.
• Industrial and Harsh-Environment Equipment  Series-level extended junction temperature range supports deployment in thermally challenging embedded applications.

Unique Advantages

• Balanced Dual-Core Performance: Two PowerPC e600 cores at 1.067 GHz provide concurrent processing capability for multitasking embedded workloads.
• Integrated High-Speed Networking: Four 10/100/1000 Mbps Ethernet interfaces reduce external PHY and switch requirements for multi-port networking designs.
• Flexible Memory Support: On-chip DDR and DDR2 memory controller support simplifies system memory selection and enables higher memory bandwidth.
• Robust Package for Board-Level Integration: 1023-FCCBGA (33×33) package in tray format facilitates surface-mount assembly in compact, high-density boards.
• Series-Level Reliability Data: MC8640 family documentation includes extended junction temperature and JTAG timing specifications to aid system qualification and test planning.

Why Choose MC8640DTVU1067NE?

The MC8640DTVU1067NE combines dual PowerPC e600 processing at 1.067 GHz with on-chip DDR/DDR2 memory controllers and four Gigabit Ethernet interfaces, delivering a balanced platform for embedded designs that require both compute and networking capabilities. Packaged in a 1023-FCCBGA (33×33) surface-mount form, it is suitable for compact, board-level implementations.

Manufactured by NXP Semiconductors and documented within the MC8640 series datasheet, this device benefits from series-level electrical and operating specifications—including recommended core voltage guidance and extended junction temperature information—to support reliable integration into embedded systems.

Request a quote or submit an inquiry to purchase MC8640DTVU1067NE and receive pricing and availability details tailored to your project requirements.
