MCF5206AB33A

The MCF5206AB33A is a ColdFire V2 microprocessor IC delivering a single 32-bit core running at 33 MHz. Designed for embedded systems, it provides external memory support and standard 5 V I/O in a high-pin-count surface-mount package.

This device targets applications that require a compact, socket-free processor solution with DRAM controller support and external bus interfaces (EBI/EMI) for system memory and peripheral integration within a commercial temperature range.

Key Features

• Core & Performance ColdFire V2 single-core 32-bit architecture running at 33 MHz for deterministic embedded processing.
• Memory Support Integrated DRAM controller plus EBI/EMI interfaces to connect external memory and parallel peripherals.
• Power & I/O Designed for 5 V I/O signaling to match common legacy embedded platforms.

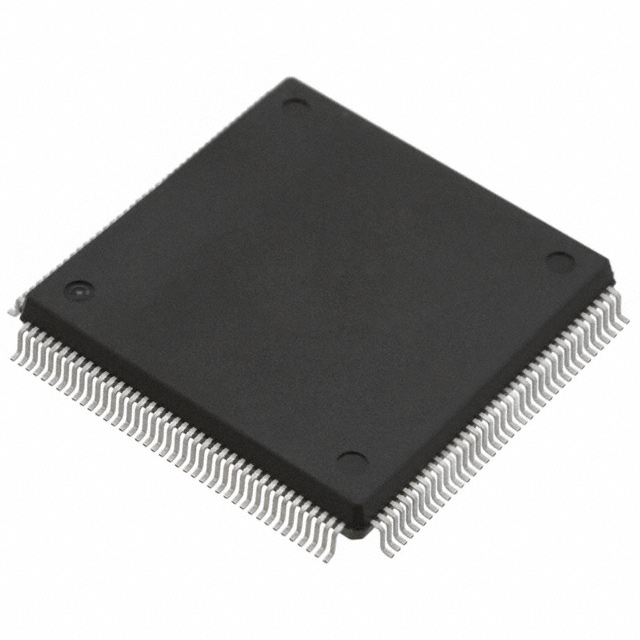

• Package & Mounting 160-pin BQFP (supplier package: 160-QFP, 28 × 28 mm) in a surface-mount form factor for high pin-count designs.
• Operating Range Commercial operating temperature range of 0 °C to 70 °C for typical embedded and commercial applications.
• Compliance RoHS compliant for restriction of hazardous substances in manufacturing and product handling.

Typical Applications

• Embedded Control Systems Use the 32-bit ColdFire V2 core and 33 MHz performance for control and application logic in compact embedded products.
• Memory-Intensive Embedded Designs Leverage the integrated DRAM controller and EBI/EMI interfaces to attach external memory and parallel peripherals.
• User Interface Controllers Employ the high pin count 160-QFP package to support display, input and peripheral connections in HMI applications.
• Commercial Electronic Equipment Suitable for consumer and commercial devices that operate within the 0 °C to 70 °C temperature range and require 5 V I/O compatibility.

Unique Advantages

• 32-bit ColdFire V2 Processing: Provides 32-bit instruction execution at 33 MHz for consistent embedded compute capability.
• External Memory and Bus Support: DRAM controller plus EBI/EMI interfaces simplify integration with external memory and parallel devices.
• High Pin-Count Package: 160-QFP (28 × 28 mm) surface-mount package supports extensive I/O and peripheral routing without sockets.
• 5 V I/O Compatibility: Standard 5 V signaling for straightforward interfacing with legacy and common embedded components.
• Commercial Temperature and RoHS Compliance: Operates across 0 °C to 70 °C and meets RoHS requirements for regulated manufacturing environments.

Why Choose MCF5206AB33A?

MCF5206AB33A combines a ColdFire V2 32-bit core with on-chip DRAM control and external bus interfaces in a compact 160-QFP surface-mount package. Its 5 V I/O and commercial temperature range make it suitable for a range of embedded and commercial electronics where external memory and high I/O counts are required.

This part is well suited to designers seeking a proven ColdFire V2 processor implementation with explicit support for DRAM and EBI/EMI integration, offering predictable performance and a straightforward hardware interface footprint.
