MCIMX280DVM4BR

IC MPU I.MX28 454MHZ 289MAPBGA
Part Description

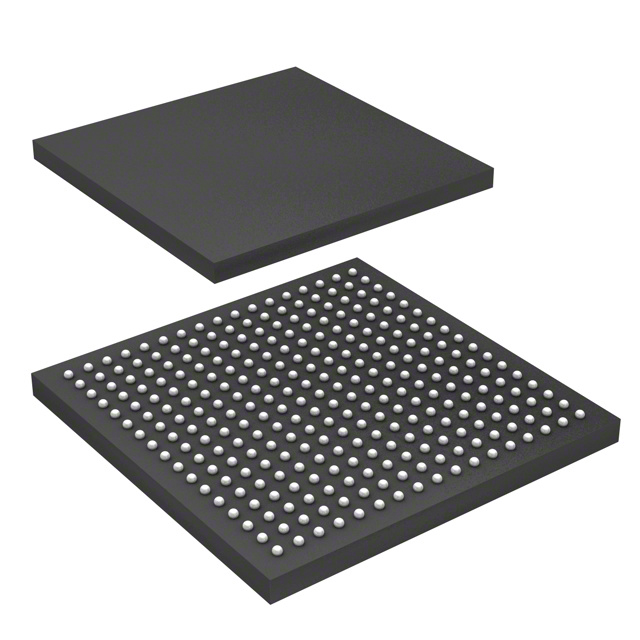

ARM926EJ-S Microprocessor IC i.MX28 1 Core, 32-Bit 454MHz 289-MAPBGA (14x14)

Quantity 262 Available (as of October 8, 2026)
Product CategoryMicroprocessors
Part Seriesi.MX 280
ManufacturerNXP USA Inc.
Manufacturing StatusActive
Manufacturer Standard Lead Time20 Weeks
Datasheet

Specifications & Environmental

Co-Processors/DSPData; DCPCore ProcessorARM926EJ-SDevice Package289-MAPBGA (14x14)
Display & Interface ControllersKeypadECCN5A992CEthernet10/100Mbps (1)
Graphics AccelerationNoHTS Code8542.31.0001Moisture Sensitivity Level3 (168 Hours)
Mounting MethodSurface MountMounting TypeSurface MountNumber of Cores/Bus Width1 Core, 32-Bit
Operating Temperature-20°C ~ 70°C (TA)Package / Case289-LFBGARAM ControllersLVDDR, LVDDR2, DDR2
REACH ComplianceREACH UnaffectedRoHS ComplianceROHS3 CompliantSecurity FeaturesBoot Security, Cryptography, Hardware ID
Speed454MHzSupplier Device Package289-MAPBGA (14×14)USBUSB 2.0 + PHY (2)
Voltage – I/O1.8V, 3.3V

Overview of MCIMX280DVM4BR – ARM926EJ-S 454 MHz Microprocessor

The MCIMX280DVM4BR is an NXP i.MX 280 series applications processor based on a single ARM926EJ-S 32‑bit core running at up to 454 MHz. It targets embedded consumer and industrial markets that require a compact, low‑power processor with integrated system-level features for HMI, control and connectivity applications.

With an integrated power management unit, on‑chip SRAM and broad external memory support, the device delivers a balanced combination of performance, power management and system integration for space‑constrained embedded designs.

Key Features

  • Core  ARM926EJ‑S single 32‑bit core running at up to 454 MHz, suitable for real‑time embedded control and HMI tasks.
  • Memory and Storage Support  Includes 128 Kbyte on‑chip SRAM and supports external memories such as mobile DDR, DDR2, LV‑DDR2 and SLC/MLC NAND Flash to match varied footprint and performance needs.
  • Integrated Power Management  On‑chip PMU with a triple‑output DC‑DC switching converter and multiple linear regulators, providing power sequencing and system power control; includes Li‑ion battery charging capability described in the device datasheet.
  • Connectivity  10/100 Mbps Ethernet (1 port) and USB 2.0 controllers with PHY (2), plus additional interfaces including I2C for peripheral and sensor integration.
  • Security  Hardware security features including boot security, cryptography and a hardware ID to support secure boot and device authentication schemes.
  • Peripheral and HMI Support  Display interface controllers such as keypad support and other I/O suitable for human‑machine interfaces and embedded control panels.
  • Package and Mounting  289‑MAPBGA package (14 × 14 mm, 0.8 mm pitch), surface mount, offering a compact footprint for space‑constrained designs.
  • Environmental and Qualification  Consumer qualification and RoHS compliance; operating temperature range −20 °C to 70 °C.

Typical Applications

  • HMI Panels (Industrial & Home)  Drive graphical and keypad interfaces for control panels and touch displays where compact integration and reliable power sequencing are required.
  • Industrial Control & Robotics  Suitable for PLCs, drive control and factory automation displays that need deterministic processing and robust peripheral connectivity.
  • Handheld Scanners & Printers  Provides processing and connectivity for portable scanning and printing devices with external memory and USB interface support.
  • Portable Medical Monitoring  Used in patient‑monitoring and portable medical devices that benefit from on‑chip SRAM, integrated PMU and security features.
  • Smart Energy & Gateways  Applies to energy meters and gateway devices requiring Ethernet connectivity, secure boot and efficient power management.

Unique Advantages

  • Integrated Power Management: The on‑chip PMU with DC‑DC converters and LDOs simplifies board power design and supports battery charging for Li‑ion implementations.
  • Compact System Integration: 128 Kbyte on‑chip SRAM plus support for multiple external memory types reduces external BOM and enables smaller PCB footprints.
  • Secure Boot and Cryptography: Built‑in boot security, cryptographic support and hardware ID help protect firmware integrity and device identity.
  • Broad Peripheral Connectivity: Ethernet, dual USB 2.0 with PHY and I2C expand options for networking, host/device USB roles and sensor/peripheral interfacing.
  • Consumer Market Qualification: Device qualification and RoHS compliance provide clear suitability for consumer and general embedded product lines.
  • Small, Manufacturable Package: 289‑MAPBGA (14 × 14 mm) with 0.8 mm pitch enables compact designs and standard surface‑mount assembly processes.

Why Choose MCIMX280DVM4BR?

The MCIMX280DVM4BR positions itself as a balanced embedded applications processor delivering 454 MHz ARM926EJ‑S performance combined with system‑level integration—on‑chip SRAM, PMU with battery charging capability and extensive external memory support. These elements reduce system complexity and help accelerate time to market for compact embedded products.

This part is well suited to designers building consumer and industrial HMI, control, portable and connectivity devices that require secure boot capabilities, integrated power sequencing and a compact BGA footprint supported by NXP’s i.MX28 family documentation.

Request a quote or submit a product inquiry to learn more about availability, pricing and support for integrating the MCIMX280DVM4BR into your next embedded design.
