MCIMX31LCVKN5DR2

The MCIMX31LCVKN5DR2 is an NXP Semiconductors i.MX31 series multimedia applications processor built around an ARM1136JF-S 32-bit core running at up to 532 MHz. It targets multimedia-rich embedded designs and mobile devices where integrated media acceleration and low-power operation are required.

Designed for high-tier and mid-tier smartphone markets and portable media players, the device combines a CPU core, dedicated multimedia co-processors, memory interfaces and broad I/O to deliver a balanced solution for performance and efficiency in compact surface-mount packaging.

Key Features

• Core  ARM1136JF-S 32-bit microprocessor core running up to 532 MHz, delivering deterministic processing for embedded applications.
• Multimedia & Co-processors  On-chip multimedia accelerators including GPU, Image Processing Unit (IPU), MPEG-4 hardware encoder and a Vector Floating Point (VFP) co-processor to offload media workloads.
• Memory & Storage Support  Integrated DDR memory controller with support for external memories such as DDR, NAND Flash, NOR Flash, SDRAM and SRAM as described in the technical documentation.
• Connectivity & I/O  High-speed USB 2.0 support (including OTG capability referenced in the documentation), ATA, MMC/SDIO and compact flash connectivity options; additional interfaces include 1‑Wire and display controllers for keyboard/keypad and LCD.
• Security & Debug  On-chip security features including a Random Number Generator, RTIC, Secure Fusebox, Secure JTAG and Secure Memory for enhanced device protection.
• Low-power Design  Architecture-level power-saving measures noted in the product documentation (DPTC, DVFS, power gating, clock gating) with a 90 nm process and dual‑Vt transistors for an optimized performance-versus-leakage balance.

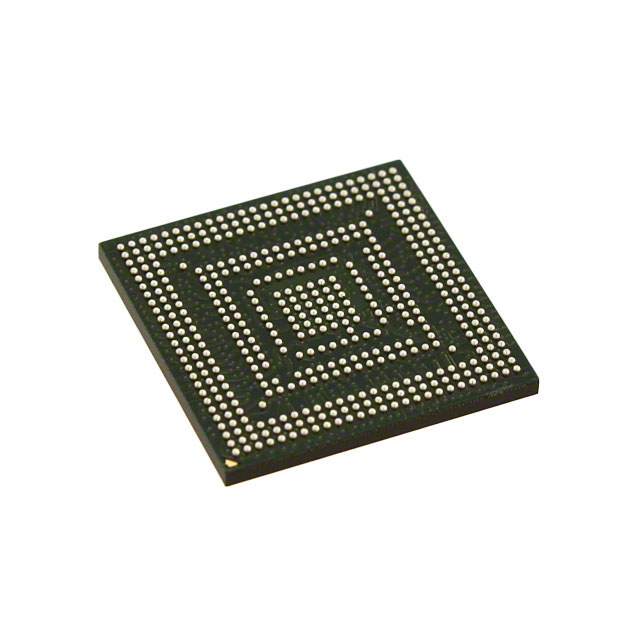

• Package & Mounting  457‑LFBGA surface-mount package (14 × 14 mm) suitable for compact embedded assemblies.
• Qualification & Temperature  Industrial qualification with an operating temperature range of −40 °C to 85 °C.
• Compliance  RoHS compliant.

Typical Applications

• Smartphones and Mobile Handsets  Targeted by the product documentation for high-tier and mid-tier smartphone markets where multimedia acceleration and low-power operation are important.
• Portable Media Players  Designed for portable media player applications leveraging on-chip MPEG-4 encoding, GPU and image processing capabilities.
• Multimedia Embedded Devices  Applies to handheld and embedded devices that require integrated display controllers, multimedia co-processors and versatile external memory support.
• Industrial Embedded Systems  Industrial qualification and −40 °C to 85 °C operating range make it suitable for embedded systems that demand extended temperature performance.

Unique Advantages

• Highly integrated multimedia capability: Combines CPU, GPU, IPU, MPEG‑4 encoder and VFP co-processor to offload media tasks and simplify system design.
• Broad external memory and I/O support: Documented support for DDR, NAND/NOR Flash, SDRAM, SRAM and multiple high-speed interfaces (USB 2.0, ATA, MMC/SDIO) enables flexible system architectures.
• Built-in security features: RNG, Secure Fusebox, Secure JTAG and Secure Memory provide hardware-level mechanisms to support device security requirements.
• Power-optimized implementation: Architectural power-saving techniques and 90 nm process technology with dual‑Vt transistors improve the performance-to-leakage trade-off for battery-powered and thermally constrained designs.
• Industrial-grade operation: Qualification for industrial use and an extended operating temperature range support deployment in harsh environments.
• Compact surface-mount packaging: 457‑LFBGA (14 × 14 mm) package enables high-density PCB designs.

Why Choose MCIMX31LCVKN5DR2?

The MCIMX31LCVKN5DR2 positions itself as a balanced multimedia application processor combining an ARM11-class core with dedicated media accelerators, flexible memory interfaces and on-chip security—all in a compact industrial-grade package. It is well-suited to designers building multimedia-centric handhelds, mobile devices and embedded systems that require integrated media processing and reliable operation across extended temperatures.

Backed by comprehensive technical documentation and package information, this i.MX31-series device provides a documented platform for engineers who need predictable performance, integration and qualification for production designs.

Request a quote or submit a purchase inquiry to obtain pricing and availability for MCIMX31LCVKN5DR2.
