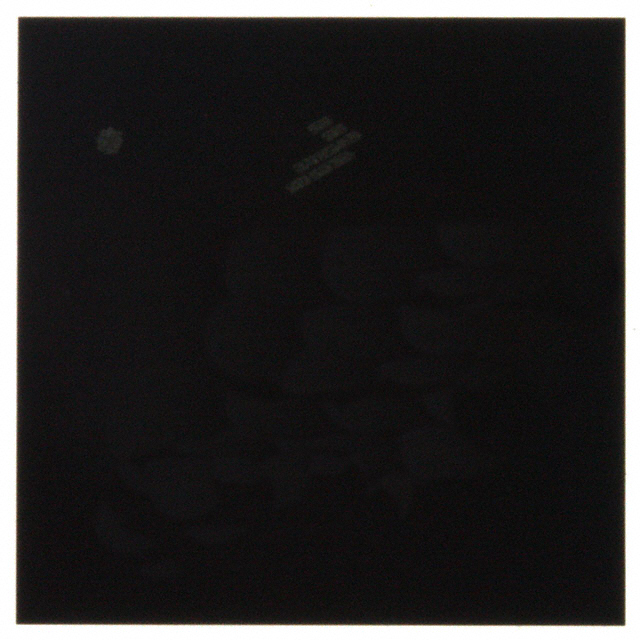

MCIMX31LCVKN5C

The MCIMX31LCVKN5C is a single-core 32-bit microprocessor based on the ARM1136JF-S core, operating at 532 MHz. Designed for multimedia-rich embedded devices, it combines a high-performance application processor with integrated multimedia co-processors and system-level features to support portable consumer electronics and handheld systems.

Manufactured by NXP Semiconductors as part of the i.MX 31 series, the device emphasizes performance with power efficiency and integration—providing hardware acceleration, multiple I/O interfaces, and on-chip security features for compact embedded designs.

Key Features

• ARM Core  ARM1136JF-S single core, 32-bit processor running at 532 MHz.
• Multimedia Co‑processors  Integrated GPU, Image Processing Unit (IPU), MPEG‑4 hardware encoder and VFP vector floating point support for hardware-accelerated media processing.
• Memory and Storage Interfaces  DDR memory controller with support for common external memories such as DDR, NAND Flash, NOR Flash, SDRAM, and SRAM (as referenced in product documentation).
• Display and User Interfaces  On-chip controllers for keyboard, keypad and LCD interfaces to simplify UI implementations.
• USB Connectivity  Three USB 2.0 interfaces for host/device connectivity and peripheral support.
• Security Features  Hardware support including Random Number Generator, RTIC, Secure Fusebox, Secure JTAG and Secure Memory to support secure boot and runtime protection.
• Power Efficiency  Architecture and process-level optimizations (including DPTC, DVFS, power gating and clock gating noted in the technical data) to minimize power consumption in portable applications.
• Graphics Acceleration  On-chip graphics acceleration and multimedia engines for responsive media playback and UI rendering.
• Package and Mounting  457‑LFBGA package (14 × 14 mm, 0.5 mm pitch), surface-mount tray packaged for compact board-level integration.

Typical Applications

• Feature-rich Cellular Phones  Hardware multimedia and graphics acceleration support media playback and advanced UI in compact handset designs.
• Portable Media Players & Mobile Gaming  Integrated MPEG‑4 encoder, IPU and GPU enable multimedia playback and lightweight game graphics.
• Personal Digital Assistants (PDAs)  Integrated display controllers, USB interfaces and DDR memory support responsive interfaces and storage connectivity.
• Portable DVD Players & Digital Cameras  On-chip image processing and hardware encoding facilitate real-time video processing and storage.

Unique Advantages

• Highly Integrated Multimedia Subsystem: GPU, IPU, MPEG‑4 hardware encoder and VFP provide dedicated hardware acceleration that reduces external component count and simplifies BOM.
• Balanced Performance and Power: ARM1136JF-S at 532 MHz combined with documented power-saving techniques supports responsive operation with minimized power draw for battery-powered devices.
• Flexible Memory Support: DDR controller and documented support for multiple external memory types enable adaptable system memory architectures.
• On-chip Security Primitives: RNG, Secure Fusebox, Secure JTAG and Secure Memory allow designers to implement secure boot and runtime protection mechanisms.
• Compact, Board-friendly Package: 457‑LFBGA (14 × 14 mm) surface-mount package enables dense, compact board layouts for portable product designs.
• Multiple I/O Options: Three USB 2.0 ports plus display and keypad controllers support a wide range of peripheral and user-interface requirements.

Why Choose MCIMX31LCVKN5C?

The MCIMX31LCVKN5C positions itself as a practical choice for embedded designs that require integrated multimedia capabilities, secure operation, and efficient power management in a compact package. With an ARM1136JF‑S core at 532 MHz and dedicated multimedia engines, it is suited to designs where on-chip acceleration and system-level integration reduce BOM complexity and board space.

Engineers targeting portable consumer electronics, handheld media devices, or compact imaging applications will find the i.MX 31 architecture a compelling combination of processing capability, multimedia support and hardware security features, backed by manufacturer technical documentation for system integration.

Request a quote or submit an inquiry to receive pricing and availability details for the MCIMX31LCVKN5C. Provide your project requirements to get tailored information on supply and lead times.
