MCIMX31DVKN5DR2

The MCIMX31DVKN5DR2 is a single‑core multimedia applications processor based on the ARM1136JF‑S 32‑bit core clocked at 532 MHz. It targets high‑tier and mid‑tier smartphone markets and portable media players, delivering integrated multimedia and system peripherals in a compact surface‑mount package.

Designed for performance with low power consumption, the device incorporates power‑saving techniques and hardware accelerators to support rich audio/video and imaging workloads while simplifying system design and integration.

Key Features

• ARM Core — ARM1136JF‑S single 32‑bit core running at 532 MHz for general processing and control.
• Multimedia Co‑processors — Built‑in multimedia engines including an MPEG‑4 hardware encoder, a Vector Floating Point (VFP) co‑processor, and an Autonomous Image Processing Unit (IPU) to accelerate video and image tasks.
• Graphics Acceleration — Integrated graphics acceleration for enhanced user interfaces and media playback.
• Memory and Storage Support — DDR memory controller with support for external memories such as DDR, NAND Flash, NOR Flash, SDRAM, and SRAM for flexible system memory architectures.
• High‑speed Connectivity — USB 2.0 (3) interfaces and support for peripheral connections including ATA, MMC/SDIO and compact flash for broad I/O options.
• Low‑Power Design — Power optimization features (DPTC, DVFS, power gating, clock gating) and 90 nm process with dual‑Vt transistors to balance performance and leakage.
• Security Features — Integrated Random Number Generator, RTIC, Secure Fusebox, Secure JTAG and Secure Memory to support platform security requirements.
• Display & Input Interfaces — Controllers for keyboard, keypad and LCD to support embedded user interfaces.

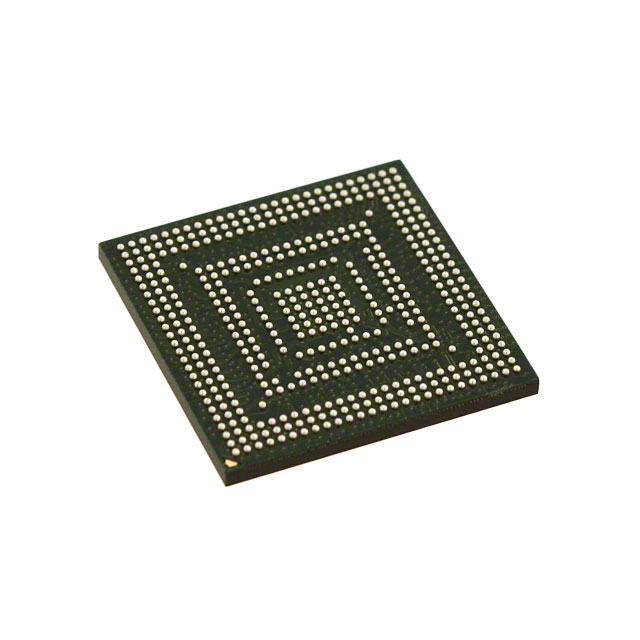

• Package & Mounting — 457‑LFBGA (14×14 mm) supplier device package, supplied in Tape & Reel (TR) format for surface‑mount assembly.
• Operating Range & Qualification — Consumer‑grade qualification with operating temperature range of −20 °C to 70 °C.

Typical Applications

• Smartphones — Multimedia processing, imaging and connectivity features suited to high‑tier and mid‑tier handset designs.
• Portable Media Players — Hardware video encode/decode and graphics acceleration for compact media devices.
• Multimedia Embedded Devices — Integrated co‑processors and broad memory/I/O support for portable and handheld multimedia systems.

Unique Advantages

• Highly integrated multimedia platform: On‑chip MPEG‑4 encoder, IPU and VFP reduce external component counts and simplify BOM for media‑rich designs.
• Balanced performance and power: 532 MHz ARM1136JF‑S core combined with DVFS, power gating and clock gating delivers responsive performance while managing power consumption.
• Flexible memory and storage options: DDR controller and support for NAND/NOR and SD/ATA interfaces enable a range of system memory and boot strategies.
• Built‑in security primitives: RNG, secure JTAG and secure memory features help establish hardware security foundations without extra silicon.
• Compact, production‑ready packaging: 457‑LFBGA 14×14 mm ball map in Tape & Reel supports surface‑mount manufacturing and compact board layouts.
• Designed for multimedia devices: Features and peripheral set are aligned with smartphone and portable media player requirements to accelerate time‑to‑market.

Why Choose MCIMX31DVKN5DR2?

The MCIMX31DVKN5DR2 combines a 532 MHz ARM1136JF‑S core with dedicated multimedia accelerators, a flexible memory interface and extensive connectivity to deliver a compact, integrated processor solution for multimedia‑focused embedded designs. Its low‑power features and multi‑level cache architecture enable efficient operation in battery‑sensitive applications.

This device is well suited for engineers developing smartphone‑class and portable media products who require on‑chip video/image processing, secure elements and a broad set of I/O options. Backed by NXP Semiconductors documentation, the MCIMX31DVKN5DR2 provides a documented platform to support product development and integration.
