MCIMX31DVKN5D

The MCIMX31DVKN5D is a multimedia applications processor from NXP Semiconductors based on the ARM11 architecture. It integrates an ARM1136JF-S single 32‑bit core running at 532 MHz and is targeted at multimedia-rich portable devices.

Designed for mid- and high-tier smartphone markets and portable media players, the device combines high performance with advanced power management and on-chip multimedia accelerators to simplify system design and reduce component count.

Key Features

• Core and Performance ARM1136JF-S single 32‑bit core operating at 532 MHz, delivering deterministic single-core processing for embedded multimedia workloads.
• Multimedia and Co-processors Integrated multimedia blocks including GPU, Image Processing Unit (IPU), MPEG‑4 hardware encoder (VGA, 30 fps noted in series documentation) and a Vector Floating Point (VFP) co-processor to accelerate graphics and media tasks.
• Memory Interfaces DDR memory controller support for connection to external DDR memories.
• Peripheral Interfaces Multiple USB 2.0 ports (USB 2.0 (3) per product data), display controllers for keyboard/keypad and LCD, and an available 1‑Wire interface. Series documentation also references support for ATA, MMC/SDIO and compact flash connectivity.
• Security Features Hardware security primitives including a Random Number Generator, RTIC, Secure Fusebox, Secure JTAG and Secure Memory for improved platform trust and integrity.
• Power Efficiency Series-level power-saving techniques such as Dynamic Power and Thermal Control (DPTC), Dynamic Voltage and Frequency Scaling (DVFS), power gating and clock gating implemented in a 90 nm process with dual‑Vt transistors to balance performance and leakage.

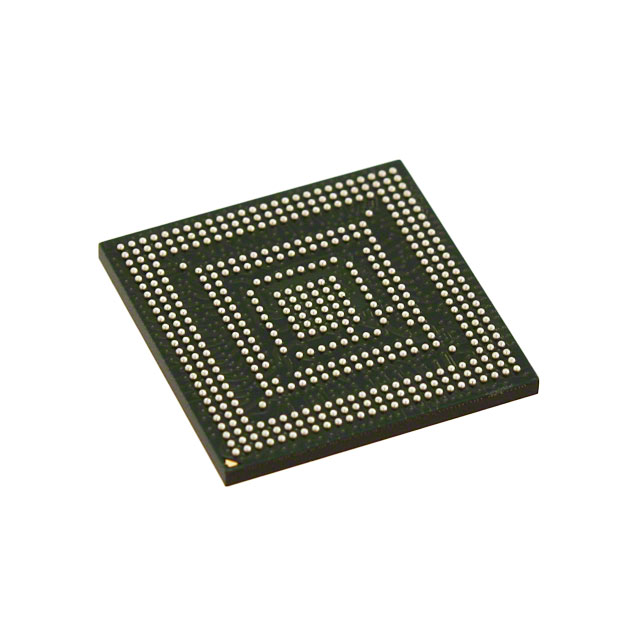

• Package and Temperature 457‑LFBGA surface-mount package (14 × 14 mm, 0.5 mm pitch) and an operating temperature range of −20 °C to 70 °C; RoHS compliant.

Typical Applications

• Smartphones and Mobile Devices Suited for high‑tier and mid‑tier smartphone designs that require integrated multimedia processing and efficient power management.
• Portable Media Players On‑chip MPEG‑4 encoder, GPU and IPU support video playback and capture functions in compact media devices.
• Handheld Multimedia Devices Single‑chip multimedia processing with DDR support and multiple USB 2.0 ports for connected, portable multimedia platforms.

Unique Advantages

• Highly integrated multimedia processing On-chip GPU, IPU and hardware MPEG‑4 encoder reduce external ASIC/codec requirements and simplify board-level design.
• Optimized for low power Power-management features and 90 nm dual‑Vt implementation reduce operational power and leakage for battery‑sensitive applications.
• Comprehensive security primitives Built‑in RNG, secure fusebox, secure JTAG and secure memory support secure boot and trusted operations at the hardware level.
• Flexible connectivity DDR controller plus USB 2.0 ports and support for common storage interfaces enable a range of I/O and storage configurations.
• Established ARM11 platform ARM1136JF-S core provides a consistent, single‑core 32‑bit environment for embedded software stacks and media processing.

Why Choose MCIMX31DVKN5D?

The MCIMX31DVKN5D positions itself as a balanced solution for embedded multimedia applications where integrated accelerators, security features and power efficiency are priorities. With a 532 MHz ARM1136JF‑S core and a suite of multimedia and I/O resources, it simplifies system architecture for smartphone and portable media designs.

Backed by NXP Semiconductors product documentation for the i.MX31 series, this device is suitable for engineers seeking a documented platform that combines multimedia capability, secure elements and advanced power management in a compact LFBGA package.

Request a quote or submit an inquiry to discuss pricing, availability and volume options for the MCIMX31DVKN5D. Our team can provide the latest lead‑time and ordering information to support your design schedule.
