MCIMX512DJM8C

The MCIMX512DJM8C is a single-core ARM® Cortex®-A8 microprocessor from the i.MX 512 series, running at 800 MHz and delivered in a 529-BGA (19x19) package. Designed for embedded consumer applications, it combines a 32-bit core with multimedia co-processing and a broad set of memory and I/O interfaces to support connected, secure, and user-facing designs.

Key Features

• Core – ARM® Cortex®-A8 single core, 32-bit architecture running at 800 MHz for deterministic embedded processing.
• Co-processors / Multimedia – Integrated multimedia and NEON™ SIMD support to accelerate signal and multimedia workloads.
• Memory Controllers – Supports LPDDR and DDR2 memory types to provide flexible memory subsystem options for performance and cost optimization.
• Display and User Interface – Built-in controllers for LCD and keypad interfaces to simplify user-interface implementations.
• Connectivity – One 10/100 Mbps Ethernet interface, three USB 2.0 interfaces plus one USB 2.0 with PHY, and an additional 1‑Wire interface for sensor and peripheral connections.
• Security – Hardware security features including ARM TrustZone (ARM TZ), boot security, cryptography, RTIC, secure fusebox, secure JTAG, secure memory, and secure RTC to support protected boot and runtime operation.

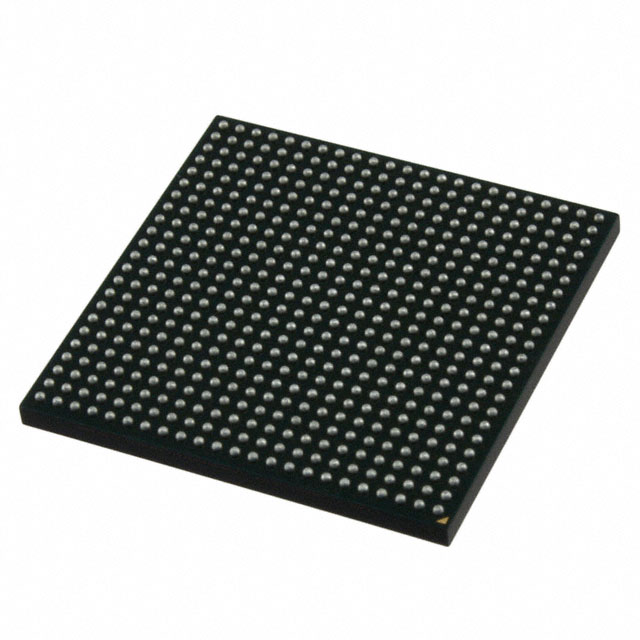

• Package & Mounting – 529-LFBGA / 529-BGA (19x19) surface-mount package suitable for compact board designs.
• Operating Range & Qualification – Consumer-grade qualification with an operating temperature range of −20 °C to 85 °C and RoHS compliance for regulatory conformity.

Typical Applications

• Smart Metering & Utility Devices – Single-phase electricity meters and low-end utility metering benefit from the i.MX51’s efficient processing and security features for protected measurement and data handling.
• Portable Medical Equipment – Portable medical devices can leverage the Cortex-A8 performance and low-power memory options to balance runtime and responsiveness.
• Thermostats & Consumer Controls – LCD and keypad interface controllers make the device well suited for user-facing controls such as thermostats and similar home automation products.
• Industrial Process Control & Measurement – Embedded control and measurement systems can use the connectivity and security features for networked, secure monitoring and control tasks.
• Test & Measurement Equipment – Automated test equipment and sensor-interfacing systems can use the processor’s multimedia and interface set for data acquisition and processing.

Unique Advantages

• Balanced compute and multimedia acceleration: The 800 MHz Cortex-A8 core with NEON™ SIMD enables efficient handling of signal processing and multimedia workloads without excessive system complexity.
• Flexible memory support: Native controllers for LPDDR and DDR2 provide choices for optimized power, cost, and performance trade-offs.
• Comprehensive connectivity options: Multiple USB 2.0 ports, a USB 2.0 with PHY, 10/100 Ethernet and 1‑Wire support reduce the need for external bridge ICs and simplify system design.
• Built-in hardware security: On-chip security functions including TrustZone, secure boot, cryptography and secure JTAG support robust device protection and secure field operation.
• Compact, manufacturable package: The 529-BGA surface-mount package supports compact PCB layouts and standard assembly processes for production scaling.
• Regulatory readiness for consumer products: Consumer qualification and RoHS compliance help streamline deployment in consumer markets.

Why Choose MCIMX512DJM8C?

The MCIMX512DJM8C positions itself as a versatile, security-minded embedded processor for consumer-grade applications that require a combination of compute performance, multimedia capability, and a broad interface set. Its support for LPDDR and DDR2 memory, multiple USB ports, Ethernet, display and keypad controllers, and extensive hardware security features make it suitable for connected products with user interfaces and protected data flows.

Engineers designing smart metering, portable medical equipment, consumer control devices, industrial measurement, or test equipment will find a balanced integration of functionality and package-level manufacturability in this NXP i.MX51 series device, along with RoHS compliance and consumer-market qualification for streamlined product development.

Request a quote or submit an inquiry to get pricing, availability, and technical support information for the MCIMX512DJM8C.
