MD80862

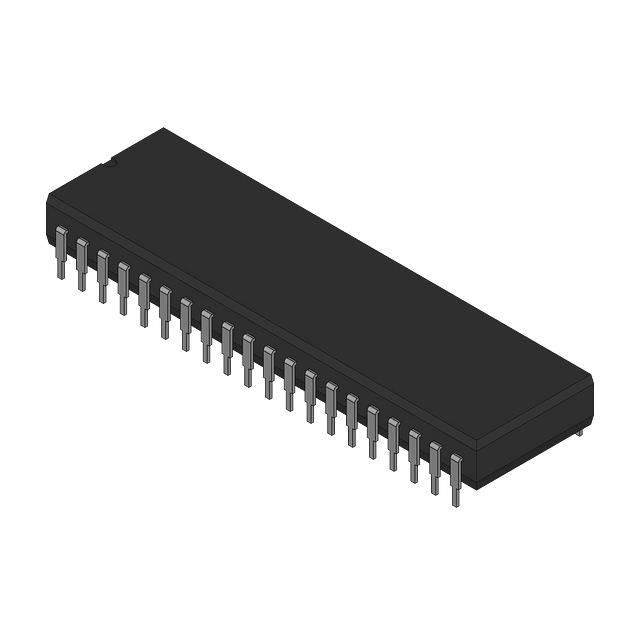

The MD80862 is an Intel 8086 microprocessor IC (iAPX86®) featuring a single 16-bit core running at 8 MHz in a 40-pin ceramic dual in-line package (40‑CDIP) for through-hole mounting. It targets embedded applications that require the 8086 core architecture and a standard 40‑pin through-hole footprint.

Specified for military grade applications, the MD80862 operates from a 5 V IO supply and is rated for a wide operating temperature range from -55 °C to 125 °C. The device is RoHS compliant.

Key Features

• Core & Architecture Single 8086 core with a 16‑bit internal bus width operating at 8 MHz, appropriate for designs needing the iAPX86 architecture.
• Voltage I/O Standard 5 V IO supply requirement for compatibility with legacy 5 V embedded systems.
• Package & Mounting 40‑CDIP supplier device package designed for through‑hole mounting, facilitating prototyping and hardware repairability.
• Operating Temperature & Grade Military grade device rated for operation from -55 °C to 125 °C, supporting use in thermally demanding environments.
• Compliance RoHS compliant, meeting lead‑free and restricted substance requirements.
• Graphics Acceleration No graphics acceleration—focuses on core processing functions typical of a 16‑bit microprocessor.

Typical Applications

• Military and rugged embedded systems — Leverages military grade classification and a -55 °C to 125 °C operating range for use in harsh environments.
• Embedded control and instrumentation — The 16‑bit 8086 core and 8 MHz operation provide predictable processing for control logic and sensor interfacing.
• Through‑hole assembly and repairable hardware — The 40‑CDIP through‑hole package suits designs that require manual assembly or field replaceable components.

Unique Advantages

• Established 8086 architecture: Provides a single 16‑bit core implementation of the iAPX86 family for designs that require this specific processor type.
• Wide thermal capability: -55 °C to 125 °C rating supports deployment in temperature‑extreme environments tied to military grade requirements.
• Through‑hole 40‑CDIP package: Simplifies prototyping, board-level replacement, and repair compared with surface‑mount alternatives.
• Standard 5 V IO: Ensures compatibility with existing 5 V embedded systems and legacy power architectures.
• RoHS compliant: Conforms to lead‑free and restricted substance standards for regulatory environments requiring RoHS adherence.

Why Choose MD80862?

The MD80862 is positioned as a reliable, military grade 8086 microprocessor solution for embedded designs that require a single 16‑bit core in a through‑hole 40‑CDIP package. With a 5 V IO requirement and an extended operating temperature range, it is suited to applications demanding robust thermal performance and serviceable board assemblies.

Choose the MD80862 when your design priorities include compatibility with the iAPX86 architecture, military temperature capability, and a standard through‑hole package for maintainability and ease of integration.

Request a quote or submit a pricing and availability inquiry to receive lead time and ordering information for the MD80862.
