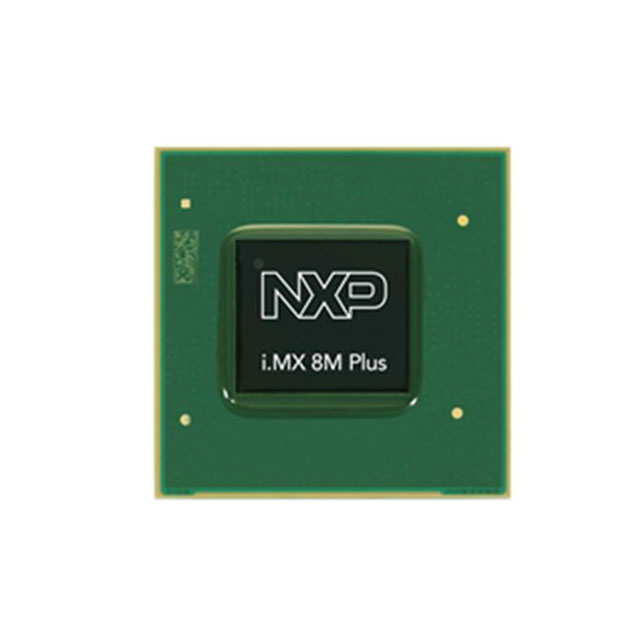

MIMX8ML8CVNKZAB

The MIMX8ML8CVNKZAB is an ARM® Cortex®-A53 based microprocessor from the i.MX 8ML family, featuring a 4-core, 64-bit CPU running at up to 1.6 GHz in a 548-LFBGA (15 × 15 mm) package. It integrates high-speed memory controllers, multimedia-capable display interfaces, multi-gigabit connectivity and on-chip co-processors to address embedded system requirements.

Qualified for industrial use and specified for operation from −40 °C to 105 °C, this device is intended for industrial and embedded applications that require performance, connectivity and platform-level security in a compact surface-mount package.

Key Features

• Core Processor 4-core ARM® Cortex®-A53, 64-bit architecture running at up to 1.6 GHz for application-level processing.
• Co-processors and Accelerators Integrated ARM® Cortex®-M7 and multimedia engines including NEON™ MPE and Hi-Fi4 DSP for real-time control and media processing tasks.
• Memory Support On-chip controllers for DDR4 and LPDDR4 memory technologies to support high-bandwidth system memory configurations.
• Graphics & Display Graphics acceleration and display interface controllers including MIPI-CSI and MIPI-DSI for rich user interfaces and camera input.
• High-speed Connectivity Dual Gigabit Ethernet interfaces and multiple USB ports (USB 2.0 + PHY ×2, USB 3.0 + PHY ×2) for networking and peripheral connectivity.
• Automotive/Field Networks CAN interface support for integration with control networks and fieldbus environments.
• Security & System Isolation Hardware security features including ARM TrustZone (TZ), CAAM and RDC for platform-level security and resource domain control.
• Industrial Qualification & Temperature Range Industrial-grade qualification and specified operation from −40 °C to 105 °C for deployment in demanding environments.
• Package & Mounting 548-LFBGA (15 × 15 mm) surface-mount package optimized for compact embedded designs.

Typical Applications

• Industrial Automation Use in controllers and embedded appliances where industrial qualification, CAN support and wide temperature operation are required.
• Human-Machine Interfaces (HMI) Drives rich graphical displays and touchscreen interfaces using MIPI-DSI and on-chip graphics acceleration.
• Networking & Edge Gateways Dual GbE and multiple USB PHYs enable deployment in gateway, router and edge compute applications requiring robust connectivity.
• Camera and Vision Systems MIPI-CSI support and multimedia co-processors make the device suitable for camera interfacing and vision-enabled embedded systems.

Unique Advantages

• High-performance multi-core processing: Quad-core ARM Cortex-A53 at 1.6 GHz provides application-level compute for multimedia and control workloads.
• Integrated multimedia and real-time engines: On-chip Cortex-M7 plus NEON and Hi-Fi4 DSP reduce external accelerator requirements and simplify system design.
• Comprehensive connectivity: Dual GbE, USB 3.0/2.0 PHYs and CAN deliver a range of high-speed and field-bus interfaces without separate controllers.
• Platform security built in: ARM TrustZone, CAAM and RDC provide hardware-level primitives to partition and protect system resources.
• Industrial-ready: Industrial qualification and −40 °C to 105 °C operating range support deployment in harsh environments.
• Compact package: 548-LFBGA (15 × 15 mm) package enables dense, space-constrained board designs while supporting high pin counts.

Why Choose MIMX8ML8CVNKZAB?

MIMX8ML8CVNKZAB combines multi-core application processing, integrated real-time co-processing and broad peripheral integration to address embedded industrial designs that demand performance, connectivity and security. Its support for DDR4/LPDDR4 memory, dual GbE, multiple USB PHYs, MIPI display and camera interfaces and built-in security make it suitable for HMI, gateway, vision and automation platforms.

With industrial qualification and a wide operating temperature range, this device is positioned for long-term deployment in harsh environments where reduced BOM, fewer external components and platform-level security contribute to a more robust and maintainable solution.

Request a quote or submit an inquiry to obtain pricing and availability for MIMX8ML8CVNKZAB and discuss how it fits your embedded design requirements.
