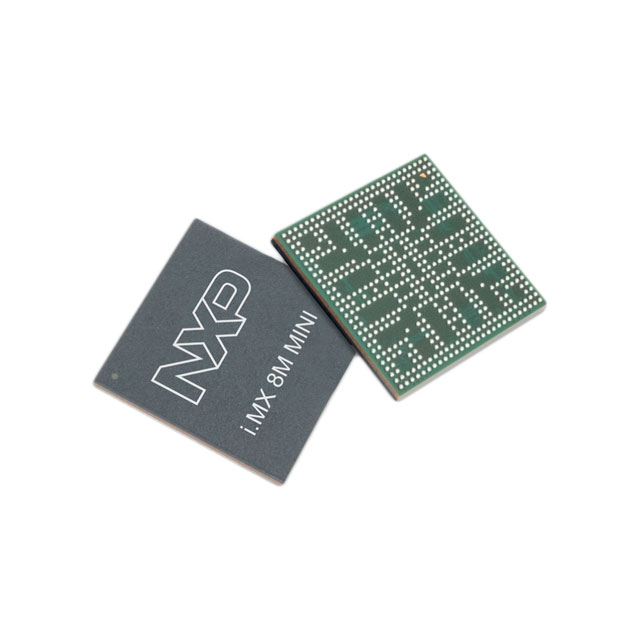

MIMX8MM1CVTKZAA

The MIMX8MM1CVTKZAA is an NXP i.MX 8M Mini applications microprocessor based on an ARM® Cortex®‑A53 64‑bit core running at 1.6 GHz, paired with an ARM® Cortex®‑M4 co‑processor. It integrates multimedia acceleration, flexible memory interfaces and a broad set of connectivity options to address embedded HMI, streaming audio/video, vision and industrial control applications.

Designed for low‑power, fanless operation and industrial qualification, this device delivers a compact, highly integrated processing solution for products that require graphics, video, audio and secure system management in a 486‑LFBGA (14×14) package.

Key Features

• Core
  ARM® Cortex®‑A53 64‑bit application core at 1.6 GHz providing single‑core application processing.
• Co‑processor & Memory
  Includes an ARM® Cortex®‑M4 subsystem for low‑power real‑time tasks; memory controller support for LPDDR4, DDR4 and DDR3L interfaces.
• Multimedia & Graphics
  Integrated graphics acceleration and video processing unit supporting up to 1080p multimedia codecs (series block features include HEVC/H.265, H.264, VP9/VP8 decode and 1080p60 encode/decoder capabilities as specified for the i.MX 8M Mini family).
• Display & Camera
  MIPI‑DSI display interface controller and support for MIPI‑CSI camera interfaces (series features include 4‑lane DSI/CSI support).
• Connectivity & I/O
  Gigabit Ethernet, two USB 2.0 controllers with PHY, PCIe 2.0 (1‑lane) and common peripheral buses including I2C, SPI and UARTs (per i.MX 8M Mini series details).
• Security & Trust
  Hardware security features including ARM TrustZone, CAAM, HAB, OCRAM, RDC, SJC and SNVS for secure boot, cryptography and tamper-resistant storage.
• Package & Temperature
  486‑LFBGA (14×14) FCBGA package, surface mount; industrial operating temperature range of −40 °C to 105 °C and industrial qualification.

Typical Applications

• Human Machine Interfaces (HMI)
  Rich touch and graphical interfaces with integrated display controller and graphics acceleration for industrial and consumer HMIs.
• Streaming Video & Vision
  Two‑way video devices, surveillance and machine vision where 1080p video decode/encode and MIPI camera input are required.
• Streaming Audio & Voice
  Networked speakers, soundbars and voice assistant devices leveraging onboard audio I/O, codecs and low‑power voice processing.
• Embedded Industrial Systems
  Industrial controllers and gateway devices that need secure boot, GbE connectivity and extended temperature operation.

Unique Advantages

• Highly integrated multimedia support: Combines GPU, VPU and MIPI display/camera interfaces to simplify designs that require video, graphics and image analytics.
• Flexible memory options: Supports LPDDR4, DDR4 and DDR3L to enable cost‑performance tradeoffs across product families and BOM optimization.
• Robust security building blocks: On‑chip TrustZone, CAAM and HAB provide hardware‑based secure boot and cryptographic services for protected systems.
• Industrial ready: Qualified for industrial temperature operation (−40 °C to 105 °C) for reliable use in harsh environments.
• Low‑power system design: Cortex‑M4 subsystem and series low‑power design allow offloading of real‑time monitoring and power‑sensitive tasks to reduce overall system power.
• Breadth of connectivity: GbE, dual USB 2.0 with PHY, PCIe, MIPI and common peripheral buses reduce external components and enable versatile system interfaces.

Why Choose MIMX8MM1CVTKZAA?

The MIMX8MM1CVTKZAA positions itself as a compact, industrial‑grade applications processor that blends a 1.6 GHz ARM® Cortex®‑A53 application core with a Cortex‑M4 co‑processor, multimedia acceleration and a comprehensive set of interfaces. Its combination of performance, security features and flexible memory and I/O options makes it suitable for embedded designs that require video, audio, graphics and secure operation in temperature‑sensitive environments.

This device is well suited to engineers designing HMIs, streaming media products, vision systems and industrial controllers who need an integrated, low‑power platform with vendor support from NXP and the i.MX 8M Mini family ecosystem.

Request a quote or submit an inquiry to receive pricing, availability and technical support for MIMX8MM1CVTKZAA tailored to your design requirements.
