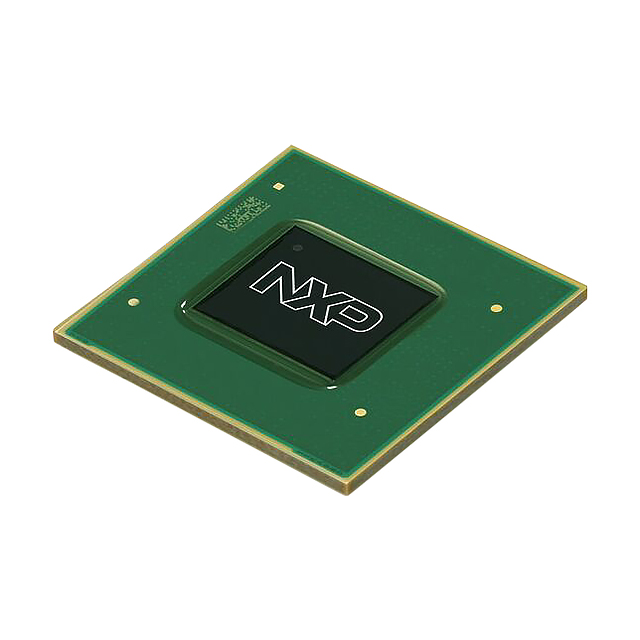

MIMX8MQ5CVAHZAA

The MIMX8MQ5CVAHZAA is an industrial-grade microprocessor featuring a 4‑core, 64‑bit ARM® Cortex®‑A53 application processor running at 1.3 GHz with an integrated ARM® Cortex®‑M4 coprocessor. It is designed for multimedia‑centric embedded designs that require video, audio, voice and HMI capabilities with robust security and broad interface support.

Targeted use cases include streaming video and audio devices, voice assistants and industrial HMI or vision systems. The device combines compute performance, multimedia acceleration and flexible memory and display interfaces to simplify system design and enable fanless, low‑power deployments.

Key Features

• CPU and Subsystem Quad ARM® Cortex®‑A53 64‑bit cores at 1.3 GHz with an ARM® Cortex®‑M4 coprocessor for low‑power real‑time tasks.
• Memory Controllers Supports DDR3L, DDR4 and LPDDR4 external memory interfaces for scalable performance and power tradeoffs.
• Advanced Video & Audio Hardware video processing and audio capabilities suited for 4K UltraHD and HDR workflows, with support for modern codecs referenced in the product family documentation.
• Graphics Acceleration Integrated graphics acceleration (shader core and modern graphics API support referenced at the family level) for enriched HMI and UI rendering.
• High‑Speed Interfaces Two USB 3.0 ports, PCIe interfaces, HDMI 2.0a, eDP, MIPI‑DSI and up to two MIPI‑CSI2 camera interfaces (family‑level details retained in documentation).
• Networking Gigabit Ethernet MAC with AVB and EEE capabilities as indicated in the product family description.
• Security Features ARM TrustZone (ARM TZ), CAAM, HAB, RDC, RTC, SJC and SNVS for secure boot, crypto acceleration and system isolation.
• Package & Mounting 621‑FCPBGA (17 × 17 mm) package, surface mount.
• Industrial Qualification & Temperature Industrial qualification with operating temperature range of −40 °C to 105 °C.
• Additional System Interfaces External bus interfaces (EBI/EMI) to support a range of peripherals and legacy devices.

Typical Applications

• Streaming Video Devices OTT set‑top boxes, digital signage and media adapters leveraging 4K/HDR video processing and flexible display outputs.
• Streaming Audio & AV Systems Networked speakers, sound bars and AV receivers using multi‑channel audio and high‑fidelity processing.
• Voice Control & Assistants Voice interfaces and assistant nodes that combine on‑device processing with robust audio front‑end support.
• Industrial HMI & Vision Touch and graphical HMIs, machine visual inspection and image analytics using camera interfaces and graphics acceleration.

Unique Advantages

• Balanced Performance and Efficiency: Four 64‑bit application cores plus an M4 coprocessor provide a mix of high‑level compute and low‑power real‑time control.
• Rich Multimedia Capability: Video, HDR and multi‑channel audio features referenced for the i.MX 8M family enable advanced media experiences without extensive external logic.
• Flexible Memory Options: Support for DDR3L, DDR4 and LPDDR4 lets designers optimize cost, bandwidth and standby power for their designs.
• Comprehensive I/O Suite: USB 3.0, PCIe, HDMI/eDP, MIPI‑DSI/CSI and Gigabit Ethernet provide broad connectivity for cameras, displays, storage and networking.
• Industrial Reliability: Industrial qualification and a −40 °C to 105 °C operating range enable deployment in demanding environments.
• Integrated Security: Multiple hardware security building blocks support secure boot, cryptography and system partitioning for protected applications.

Why Choose MIMX8MQ5CVAHZAA?

The MIMX8MQ5CVAHZAA delivers a combination of multicore CPU performance, dedicated real‑time processing and multimedia capabilities tailored to embedded products that need video, audio and responsive HMI. Its industrial temperature rating, comprehensive security features and broad interface set make it suitable for both consumer‑facing and industrial designs that demand reliability and flexible system integration.

This device is ideal for developers building streaming media players, connected audio devices, voice interfaces, and industrial HMIs who require a scalable platform with proven software ecosystem support at the family level and the external memory and display options to match target system requirements.

Request a quote or submit a product inquiry to begin integrating the MIMX8MQ5CVAHZAA into your next embedded design.
