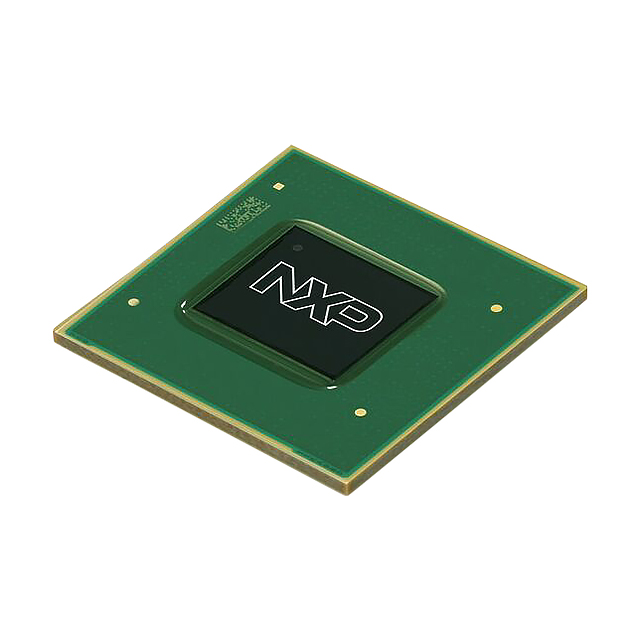

MIMX8MQ5DVAJZAA

The MIMX8MQ5DVAJZAA is an ARM® Cortex®-A53 based microprocessor IC featuring four 64-bit cores clocked at 1.5 GHz, designed for embedded consumer applications. It integrates a Cortex®-M4 coprocessor, broad memory controller support, multiple display and peripheral interfaces, and a package suitable for surface-mount designs.

This device targets embedded designs that require multi-core application processing, display connectivity, and a comprehensive set of security and peripheral features while operating across a 0 °C to 95 °C temperature range.

Key Features

• Core Architecture  Quad ARM® Cortex®-A53 64-bit cores running up to 1.5 GHz, providing multi-threaded application processing capability.
• Real-time Coprocessor  Integrated ARM® Cortex®-M4 coprocessor for real-time tasks and control-plane offload.
• Memory Support  On-chip controllers for DDR3L, DDR4 and LPDDR4 memory types to match a range of system memory architectures.
• Display and Graphics  Display interface controllers include eDP, HDMI, MIPI-CSI and MIPI-DSI, and the device provides graphics acceleration for display-driven applications.
• High-speed Connectivity  Dual USB 3.0 ports and Gigabit Ethernet (GbE) enable high-throughput peripheral and network connections.
• Peripheral Interfaces  Additional external bus interfaces such as EBI/EMI expand system I/O and memory interfacing options.
• Security and System Management  Security features include ARM TrustZone (TZ), CAAM, HAB, RDC, RTC, SJC and SNVS to support secure boot and trusted execution functions.
• Package and Mounting  Supplied in a 621-FCPBGA surface-mount package (17 × 17 mm), suitable for compact board designs.
• Qualification and Compliance  Consumer qualification and RoHS compliance for commercial embedded product deployments.
• Operating Range  Rated for operation from 0 °C to 95 °C for standard ambient conditions in consumer applications.

Typical Applications

• Display-driven Embedded Systems  Use the integrated display controllers and graphics acceleration for human–machine interfaces and multimedia displays.
• Embedded Connectivity Devices  Leverage Gigabit Ethernet and dual USB 3.0 ports for networked gateways and high-speed peripheral connectivity.
• Real-time Control and Offload  Employ the Cortex®-M4 coprocessor for deterministic control tasks while the A53 cores handle application processing.
• Consumer Electronics  Suitable for consumer-class embedded designs that require a combination of processing performance, display support, and integrated security features.

Unique Advantages

• High-performance Multi-core Processing: Four 64-bit Cortex®-A53 cores at up to 1.5 GHz deliver parallel application processing for compute-intensive embedded workloads.
• Integrated Real-time Coprocessor: On-chip Cortex®-M4 allows separation of real-time control and application tasks without external MCUs.
• Flexible Memory Options: Support for DDR3L, DDR4 and LPDDR4 memory controllers enables designers to choose performance and power trade-offs.
• Comprehensive Display and I/O: Multiple display interfaces (eDP, HDMI, MIPI-CSI, MIPI-DSI) plus GbE and USB 3.0 provide broad connectivity for multimedia systems.
• Built-in Security Features: ARM TrustZone, CAAM, HAB and other security modules support trusted execution and secure boot strategies.
• Compact Surface-mount Package: 621-FCPBGA (17×17 mm) package enables space-efficient board designs for consumer embedded products.

Why Choose MIMX8MQ5DVAJZAA?

The MIMX8MQ5DVAJZAA combines multi-core 64-bit processing, a real-time coprocessor, extensive memory compatibility and a rich set of display and high-speed I/O options into a compact surface-mount package. These capabilities make it well suited to consumer embedded designs that need balanced compute performance, display connectivity and integrated security.

Backed by NXP Semiconductors, the device delivers scalability through its multi-core architecture and memory flexibility, while security features and a defined operating temperature range support reliable deployment in commercial embedded products.

Request a quote or submit a pricing and availability inquiry to move your design forward with MIMX8MQ5DVAJZAA. Provide your quantity and delivery requirements to receive a tailored response.
